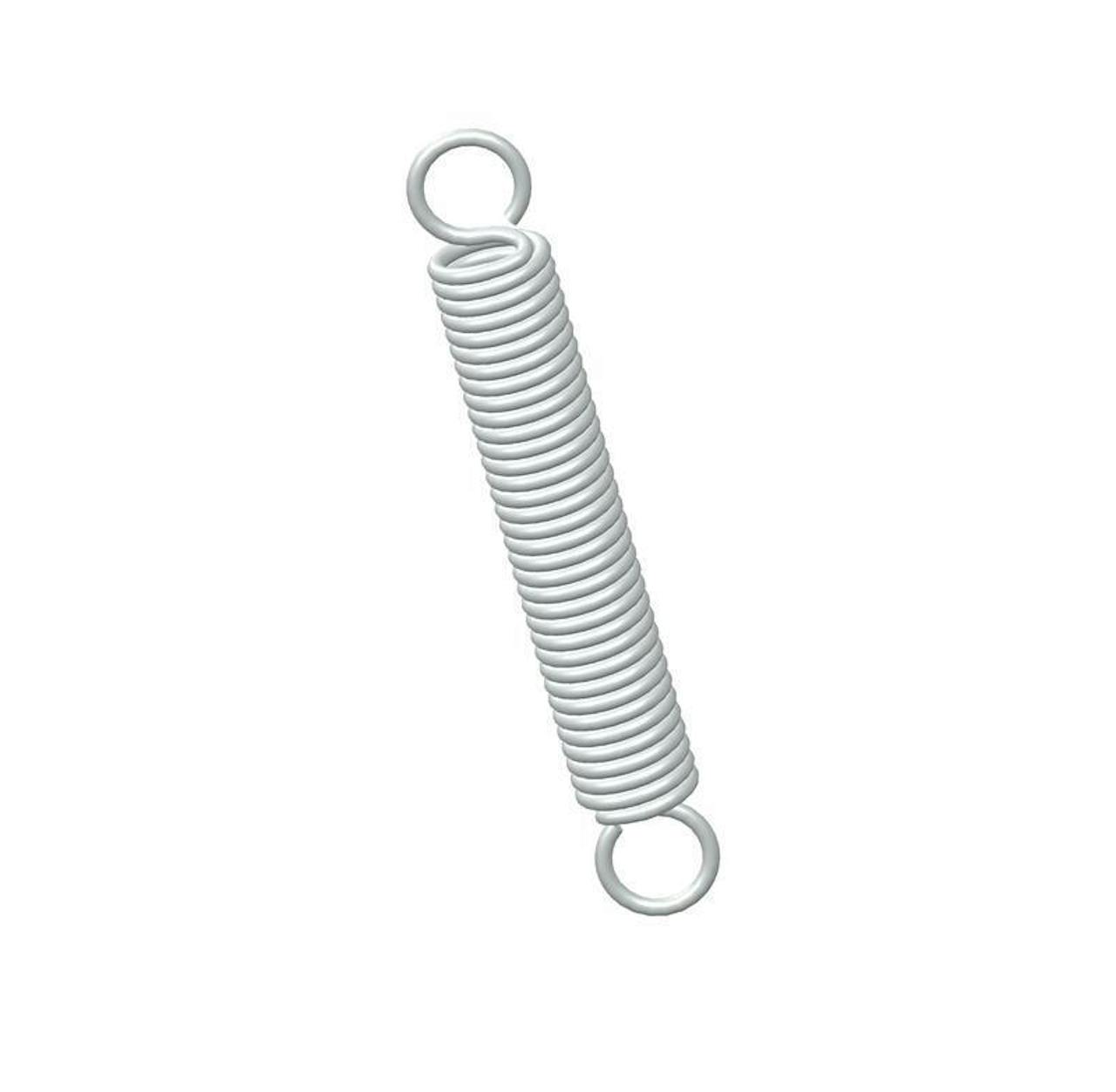

80904SCS - 5 Inch 302/304 Stainless Steel Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.75 Inch and an initial tension of 5 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80904S |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 5 lb |
| Length | 5 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.75 in |
| Part Type | Standard |
| Rate | 15 lbs/in |
| SKU | 80904SCS |
| Sugg Max Deflection | 2.3 in |
| Sugg Max Load | 40 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.105 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80904S |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 2.27 kg |
| Length | 127 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 19.05 mm |
| Part Type | Standard |
| Rate | 2.63 N/mm |
| SKU | 80904SCS |
| Sugg Max Deflection | 58.42 mm |
| Sugg Max Load | 177.92 N |
| Wind Direction | Left |
| Wire Diameter | 2.67 mm |
