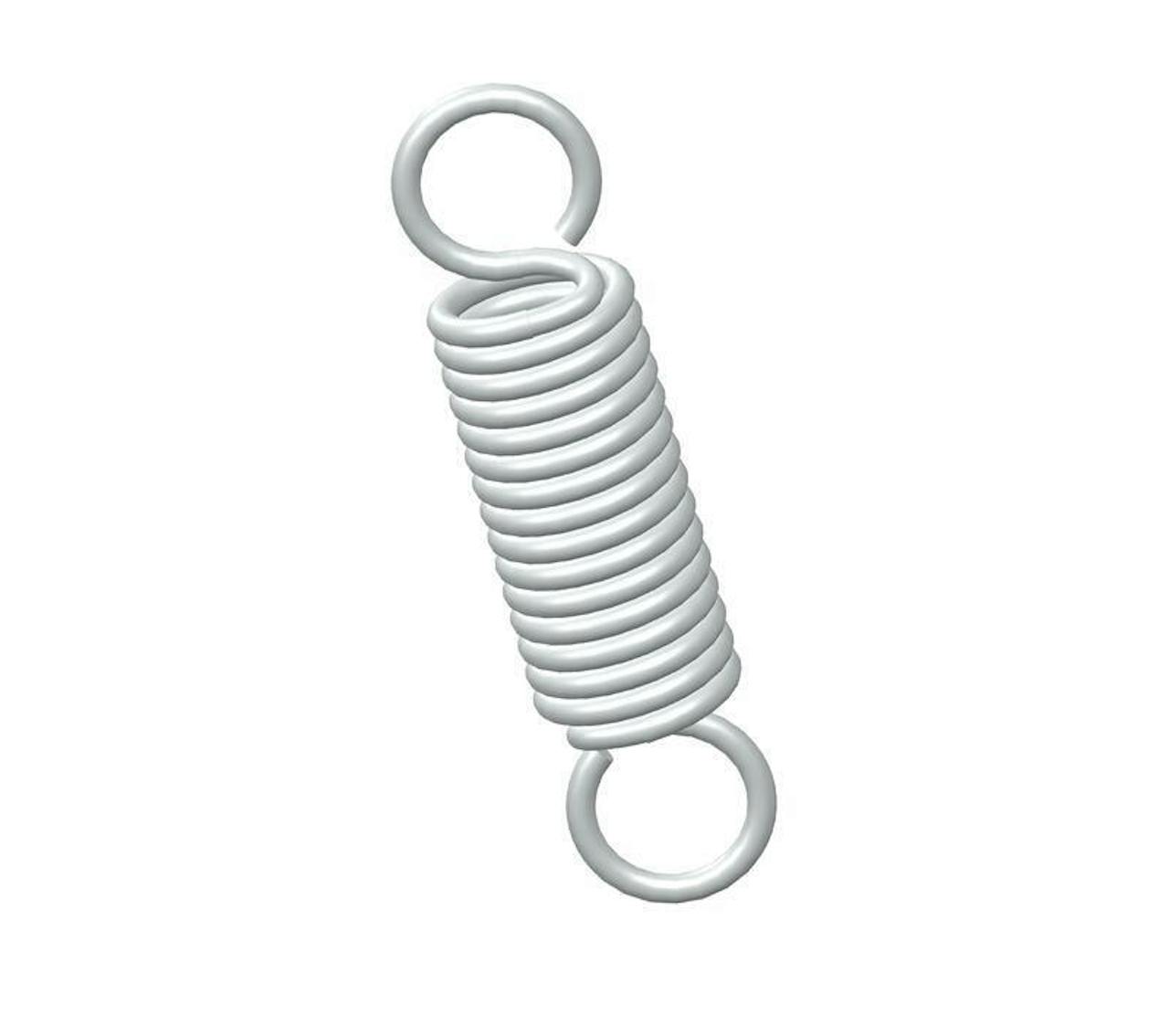

80900SCS - 3 Inch 302/304 Stainless Steel Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.75 Inch and an initial tension of 12 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80900S |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 12 lb |
| Length | 3 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.75 in |
| Part Type | Standard |
| Rate | 33 lbs/in |
| SKU | 80900SCS |
| Sugg Max Deflection | 1.1 in |
| Sugg Max Load | 40 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.105 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80900S |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 5.44 kg |
| Length | 76.2 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 19.05 mm |
| Part Type | Standard |
| Rate | 5.78 N/mm |
| SKU | 80900SCS |
| Sugg Max Deflection | 27.94 mm |
| Sugg Max Load | 177.92 N |
| Wind Direction | Left |
| Wire Diameter | 2.67 mm |
