Century Spring

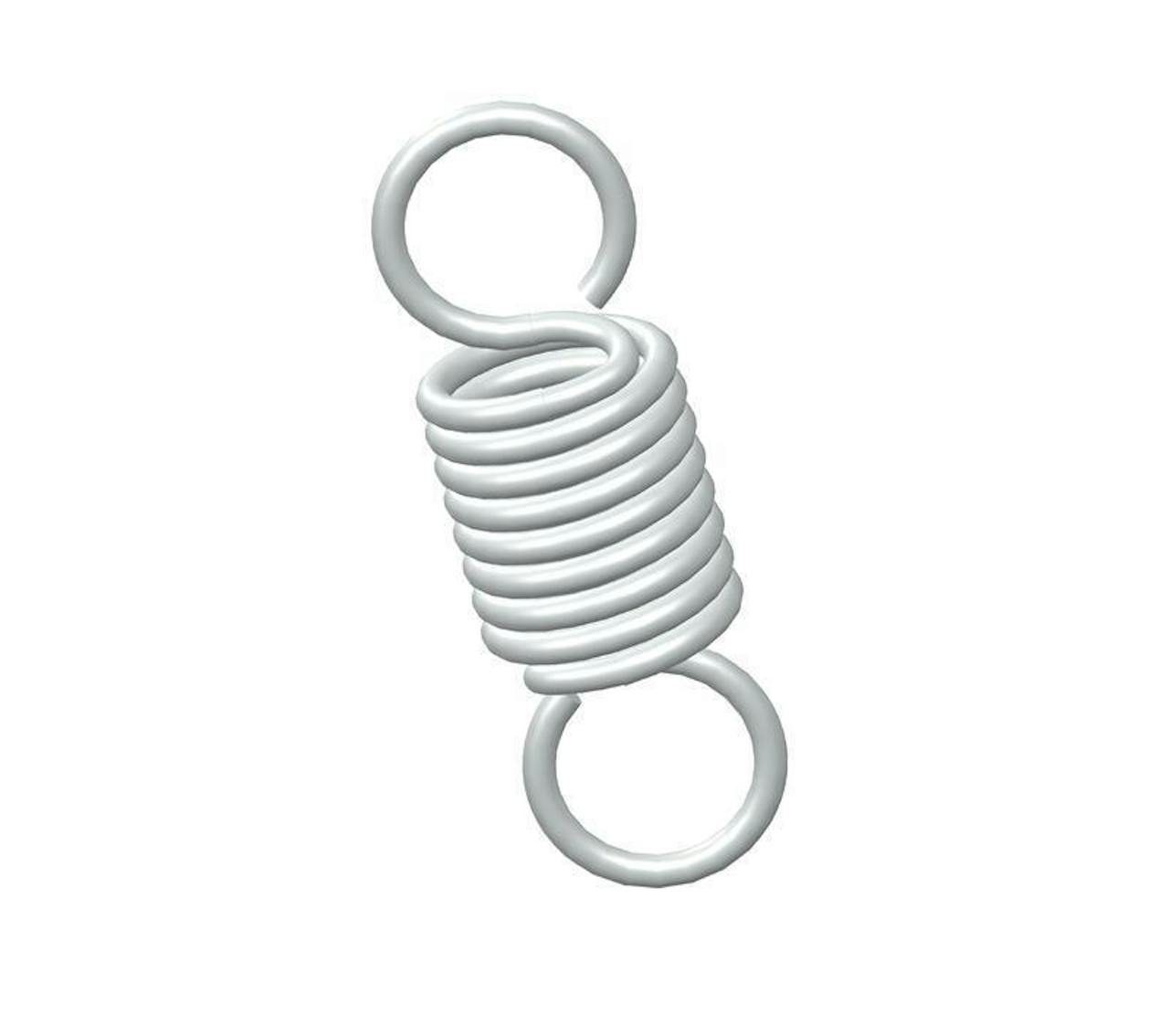

80886SCS - 2.25 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.75 Inch and an initial tension of 3 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80886S
Ends Full Loop
Finish None
Initial Tension 3 lb
Length 2.25 in
Material 302/304 Stainless Steel
Outside Diameter 0.75 in
Part Type Standard
Rate 37 lbs/in
SKU 80886SCS
Sugg Max Deflection 0.71 in
Sugg Max Load 30 lbf
Wind Direction Left
Wire Diameter 0.095 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80886S
Ends Full Loop
Finish None
Initial Tension 1.36 kg
Length 57.15 mm
Material 302/304 Stainless Steel
Outside Diameter 19.05 mm
Part Type Standard
Rate 6.48 N/mm
SKU 80886SCS
Sugg Max Deflection 18.03 mm
Sugg Max Load 133.44 N
Wind Direction Left
Wire Diameter 2.41 mm
