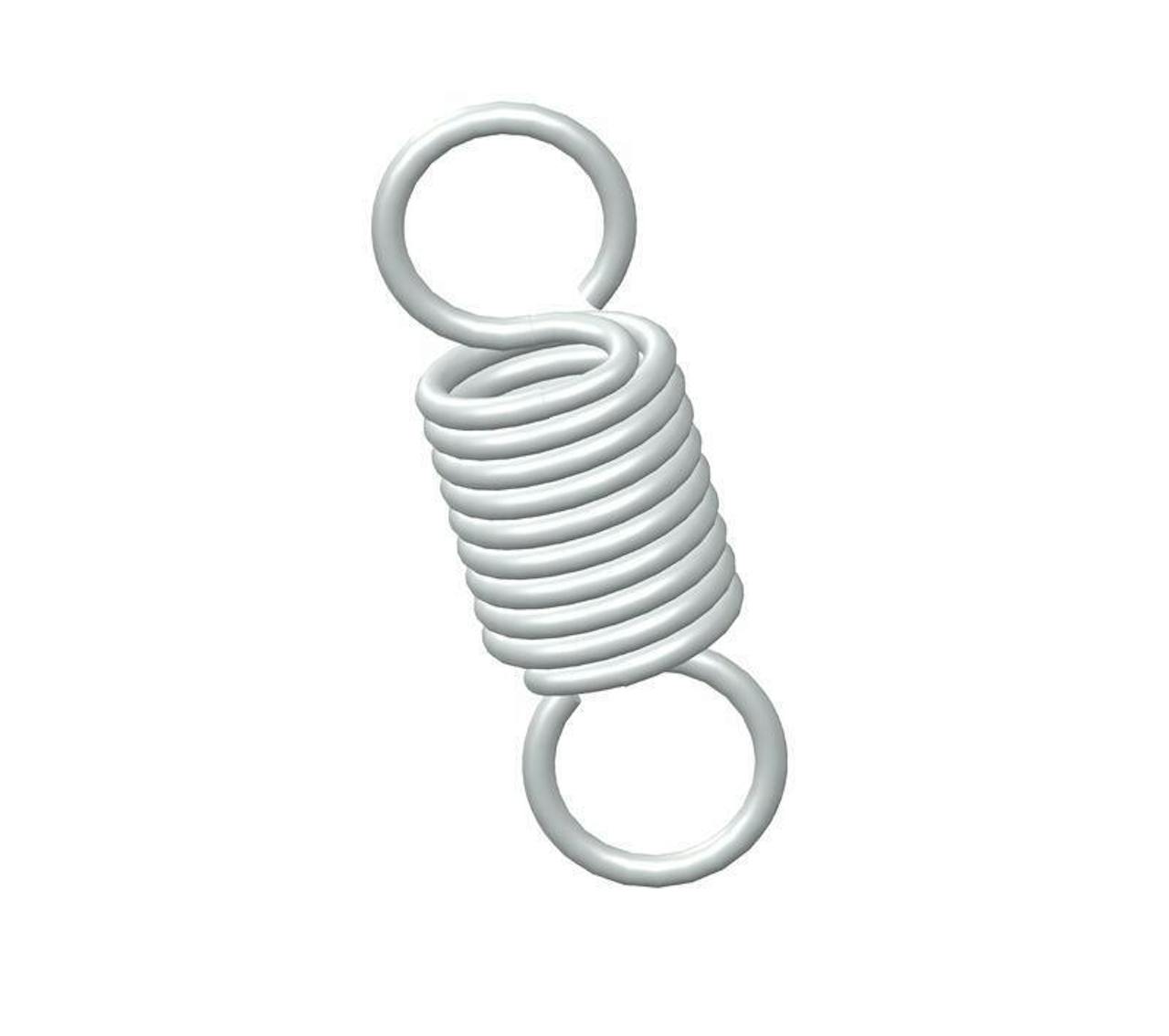

80877SCS - 2.25 Inch 302/304 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.75 Inch and an initial tension of 3 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80877S
Ends Full Loop
Finish None
Initial Tension 3 lb
Length 2.25 in
Material 302/304 Stainless Steel
Outside Diameter 0.75 in
Part Type Standard
Rate 30 lbs/in
SKU 80877SCS
Sugg Max Deflection 0.84 in
Sugg Max Load 28 lbf
Wire Diameter 0.093 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80877S
Ends Full Loop
Finish None
Initial Tension 1.36 kg
Length 57.15 mm
Material 302/304 Stainless Steel
Outside Diameter 19.05 mm
Part Type Standard
Rate 5.25 N/mm
SKU 80877SCS
Sugg Max Deflection 21.34 mm
Sugg Max Load 124.54 N
Wire Diameter 2.36 mm
