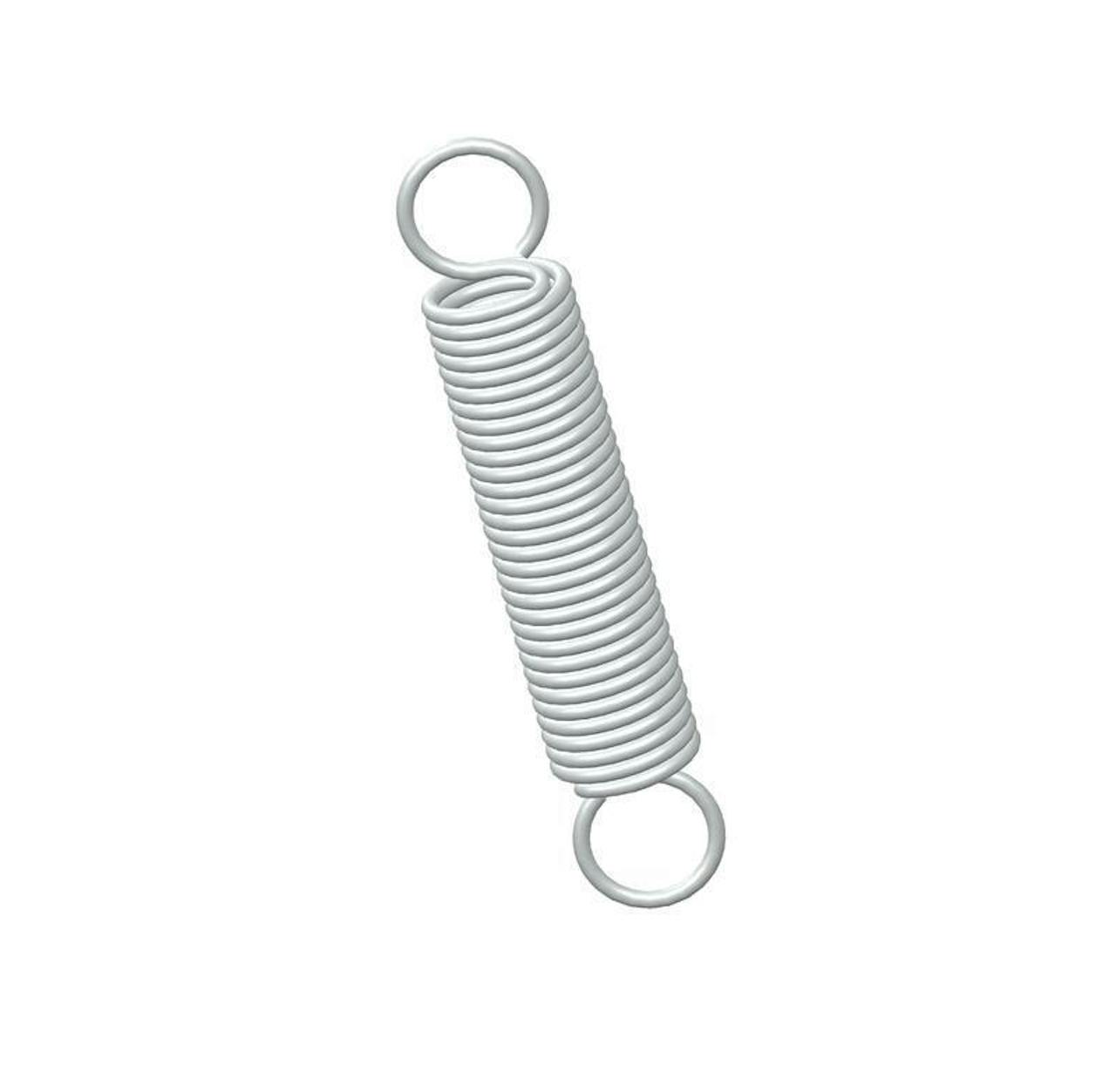

80873SCS - 4 Inch 302/304 Stainless Steel Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.75 Inch and an initial tension of 2 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80873S |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 2 lb |
| Length | 4 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.75 in |
| Part Type | Standard |
| Rate | 7 lbs/in |
| SKU | 80873SCS |
| Sugg Max Deflection | 2.9 in |
| Sugg Max Load | 23 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.085 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80873S |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 0.91 kg |
| Length | 101.6 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 19.05 mm |
| Part Type | Standard |
| Rate | 1.23 N/mm |
| SKU | 80873SCS |
| Sugg Max Deflection | 73.66 mm |
| Sugg Max Load | 102.3 N |
| Wind Direction | Left |
| Wire Diameter | 2.16 mm |
