Century Spring

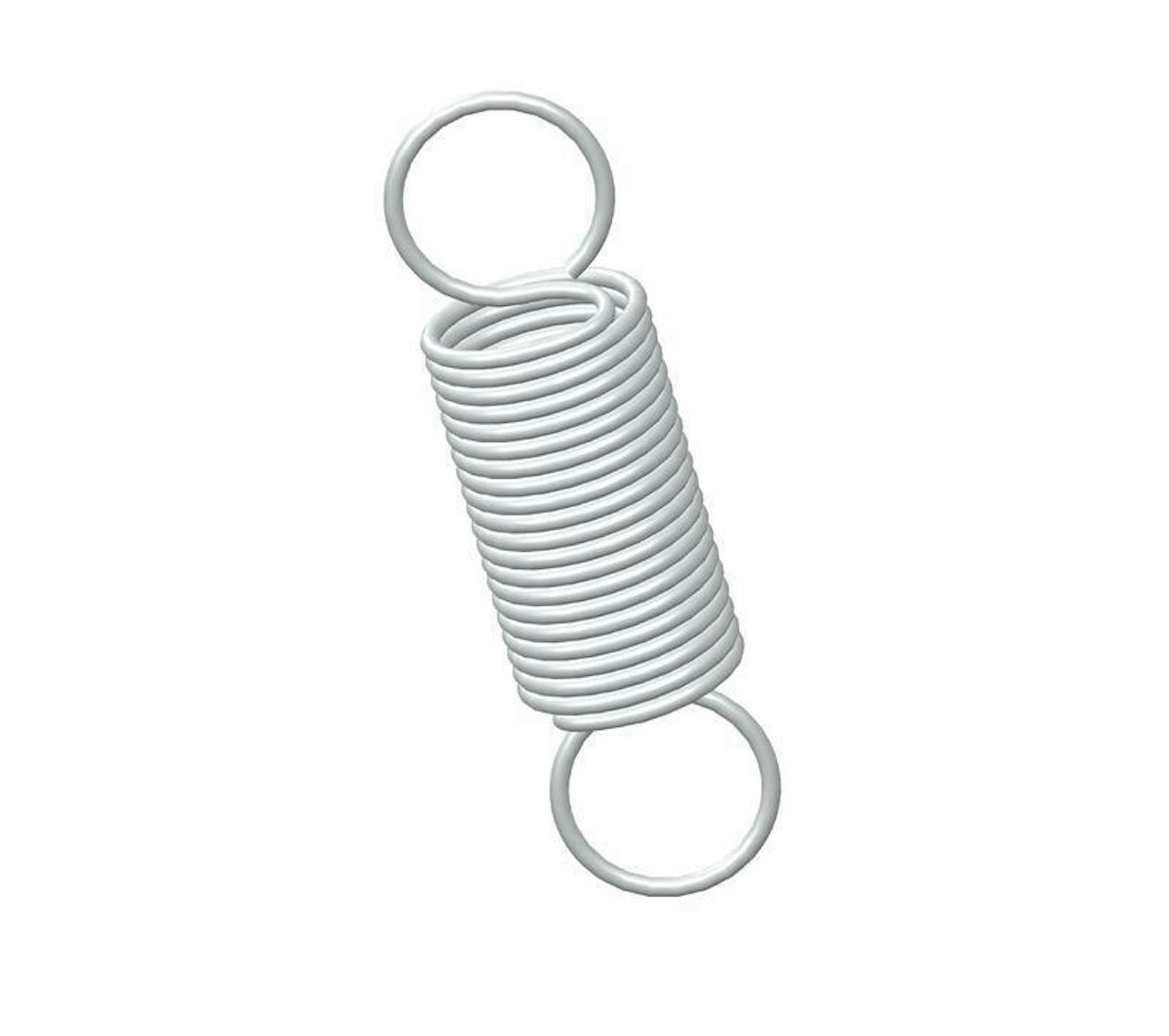

80839SCS - 2.75 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.75 Inch and an initial tension of 1 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80839S
Ends Full Loop
Finish None
Initial Tension 1 lb
Length 2.75 in
Material 302/304 Stainless Steel
Outside Diameter 0.75 in
Part Type Standard
Rate 2.7 lbs/in
SKU 80839SCS
Sugg Max Deflection 3.4 in
Sugg Max Load 10 lbf
Wind Direction Left
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80839S
Ends Full Loop
Finish None
Initial Tension 0.45 kg
Length 69.85 mm
Material 302/304 Stainless Steel
Outside Diameter 19.05 mm
Part Type Standard
Rate 0.47 N/mm
SKU 80839SCS
Sugg Max Deflection 86.36 mm
Sugg Max Load 44.48 N
Wind Direction Left
Wire Diameter 1.59 mm
