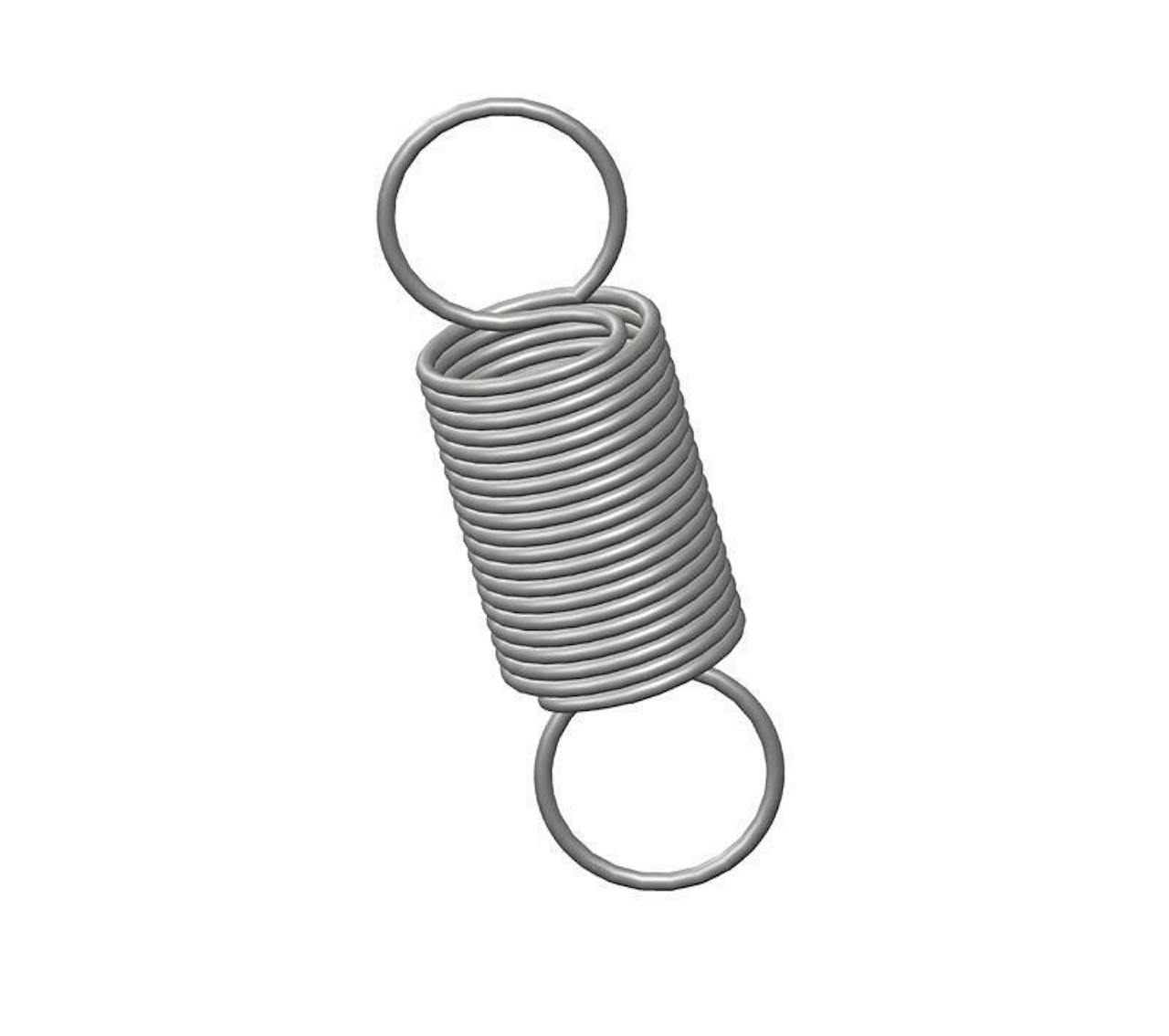

80832CS - 2.5 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.75 Inch and an initial tension of 0.8 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80832
Ends Full Loop
Finish None
Initial Tension 0.8 lb
Length 2.5 in
Material Music Wire
Outside Diameter 0.75 in
Part Type Standard
Rate 2 lbs/in
SKU 80832CS
Sugg Max Deflection 4.7 in
Sugg Max Load 9.9 lbf
Wire Diameter 0.055 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80832
Ends Full Loop
Finish None
Initial Tension 0.36 kg
Length 63.5 mm
Material Music Wire
Outside Diameter 19.05 mm
Part Type Standard
Rate 0.35 N/mm
SKU 80832CS
Sugg Max Deflection 119.38 mm
Sugg Max Load 44.04 N
Wire Diameter 1.4 mm
