Century Spring

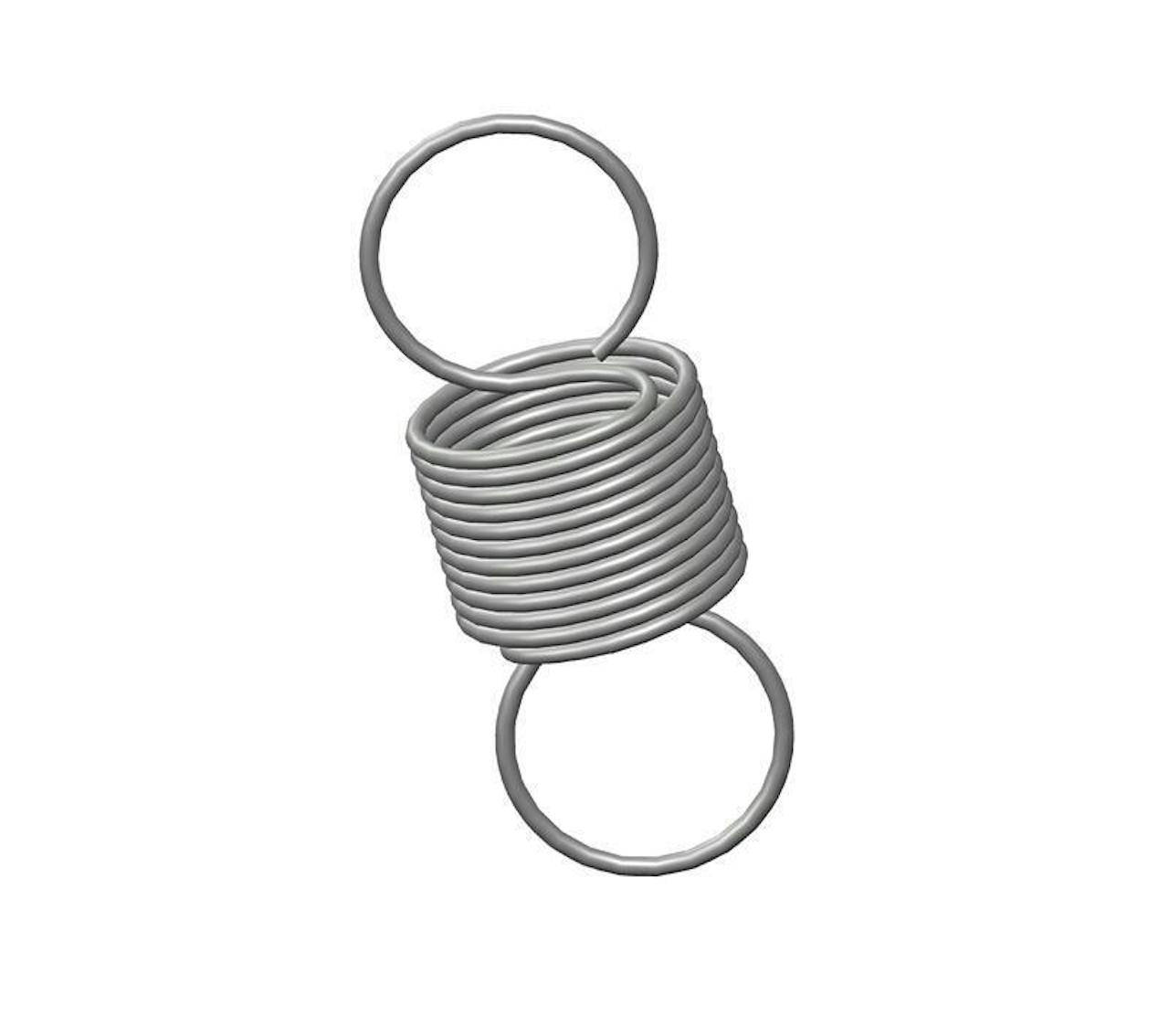

80823CS - 2 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.75 Inch and an initial tension of 0.6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80823
Ends Full Loop
Finish None
Initial Tension 0.6 lb
Length 2 in
Material Music Wire
Outside Diameter 0.75 in
Part Type Standard
Rate 2.3 lbs/in
SKU 80823CS
Sugg Max Deflection 3 in
Sugg Max Load 7.6 lbf
Wind Direction Left
Wire Diameter 0.049 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80823
Ends Full Loop
Finish None
Initial Tension 0.27 kg
Length 50.8 mm
Material Music Wire
Outside Diameter 19.05 mm
Part Type Standard
Rate 0.4 N/mm
SKU 80823CS
Sugg Max Deflection 76.2 mm
Sugg Max Load 33.8 N
Wind Direction Left
Wire Diameter 1.24 mm
