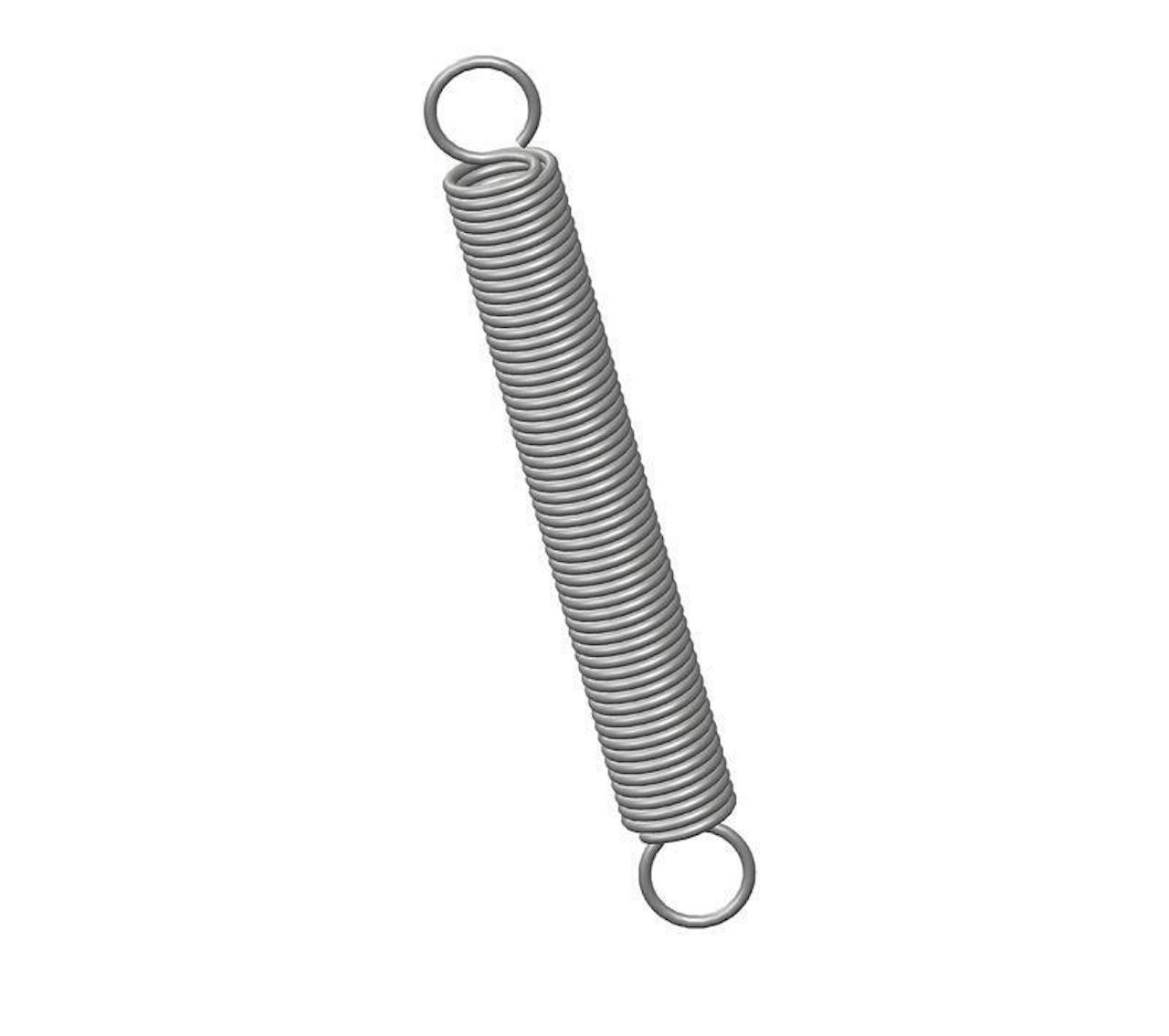

80792CS - 5 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.625 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80792
Ends Full Loop
Finish None
Initial Tension 2 lb
Length 5 in
Material Music Wire
Outside Diameter 0.625 in
Part Type Standard
Rate 3.5 lbs/in
SKU 80792CS
Sugg Max Deflection 6 in
Sugg Max Load 23 lbf
Wire Diameter 0.069 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80792
Ends Full Loop
Finish None
Initial Tension 0.91 kg
Length 127 mm
Material Music Wire
Outside Diameter 15.88 mm
Part Type Standard
Rate 0.61 N/mm
SKU 80792CS
Sugg Max Deflection 152.4 mm
Sugg Max Load 102.3 N
Wire Diameter 1.75 mm
