Century Spring

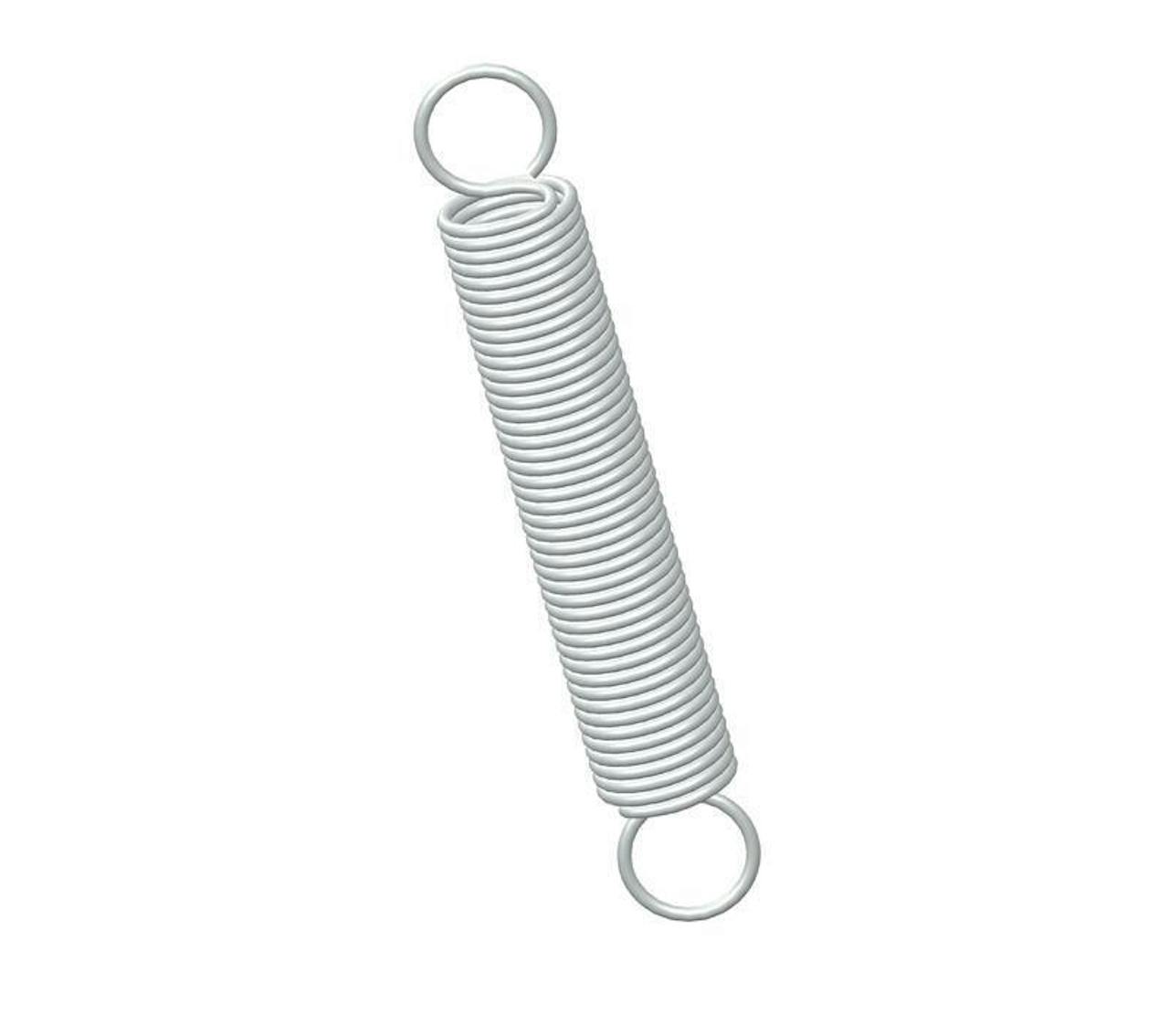

80780SCS - 4 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.625 Inch and an initial tension of 2.2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80780S
Ends Full Loop
Finish None
Initial Tension 2.2 lb
Length 4 in
Material 302/304 Stainless Steel
Outside Diameter 0.625 in
Part Type Standard
Rate 2.5 lbs/in
SKU 80780SCS
Sugg Max Deflection 4.3 in
Sugg Max Load 12 lbf
Wind Direction Left
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80780S
Ends Full Loop
Finish None
Initial Tension 1 kg
Length 101.6 mm
Material 302/304 Stainless Steel
Outside Diameter 15.88 mm
Part Type Standard
Rate 0.44 N/mm
SKU 80780SCS
Sugg Max Deflection 109.22 mm
Sugg Max Load 53.38 N
Wind Direction Left
Wire Diameter 1.59 mm
