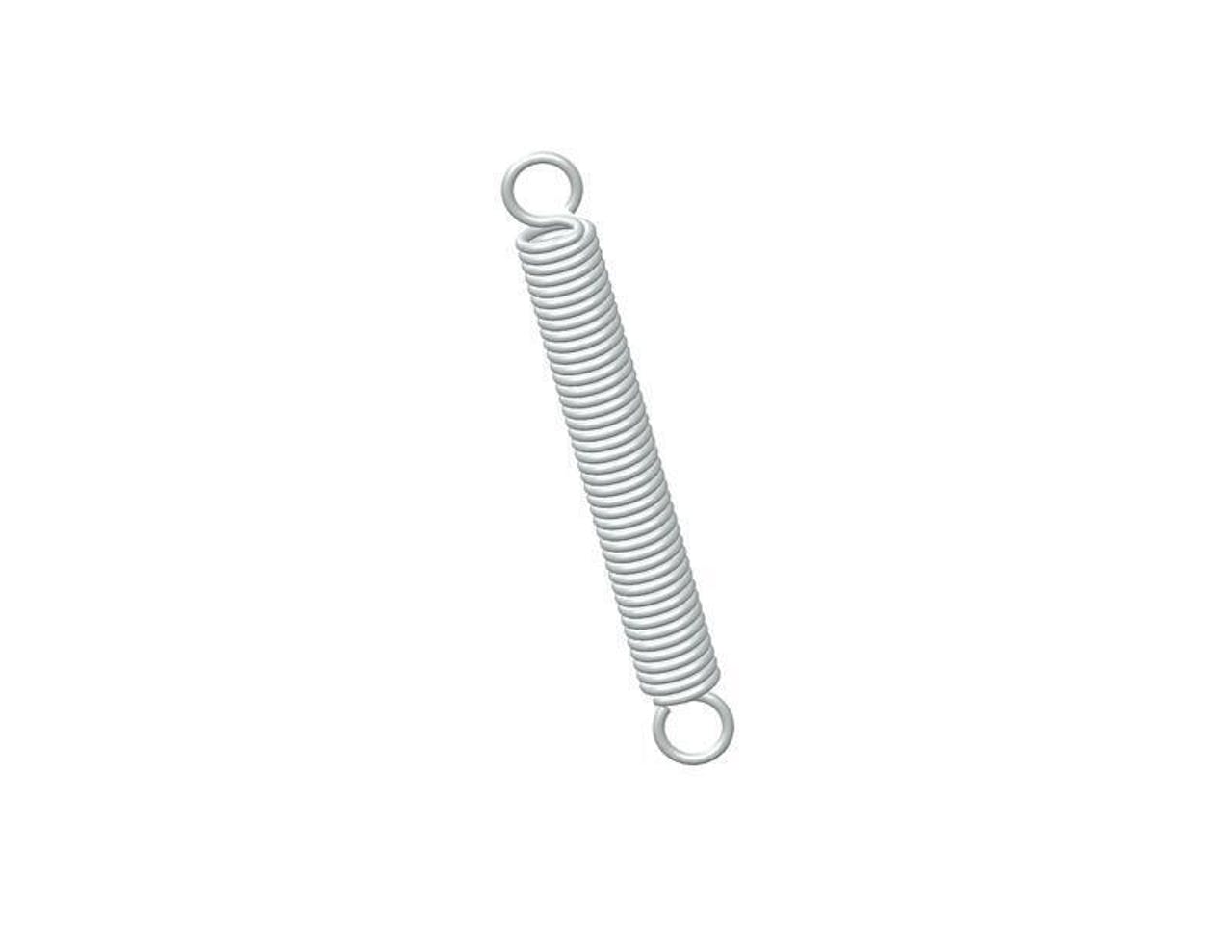

80759SCS - 4 Inch 302/304 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80759S
Ends Full Loop
Finish None
Initial Tension 2 lb
Length 4 in
Material 302/304 Stainless Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 12 lbs/in
SKU 80759SCS
Sugg Max Deflection 1.7 in
Sugg Max Load 22 lbf
Wire Diameter 0.075 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80759S
Ends Full Loop
Finish None
Initial Tension 0.91 kg
Length 101.6 mm
Material 302/304 Stainless Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 2.1 N/mm
SKU 80759SCS
Sugg Max Deflection 43.18 mm
Sugg Max Load 97.86 N
Wire Diameter 1.91 mm
