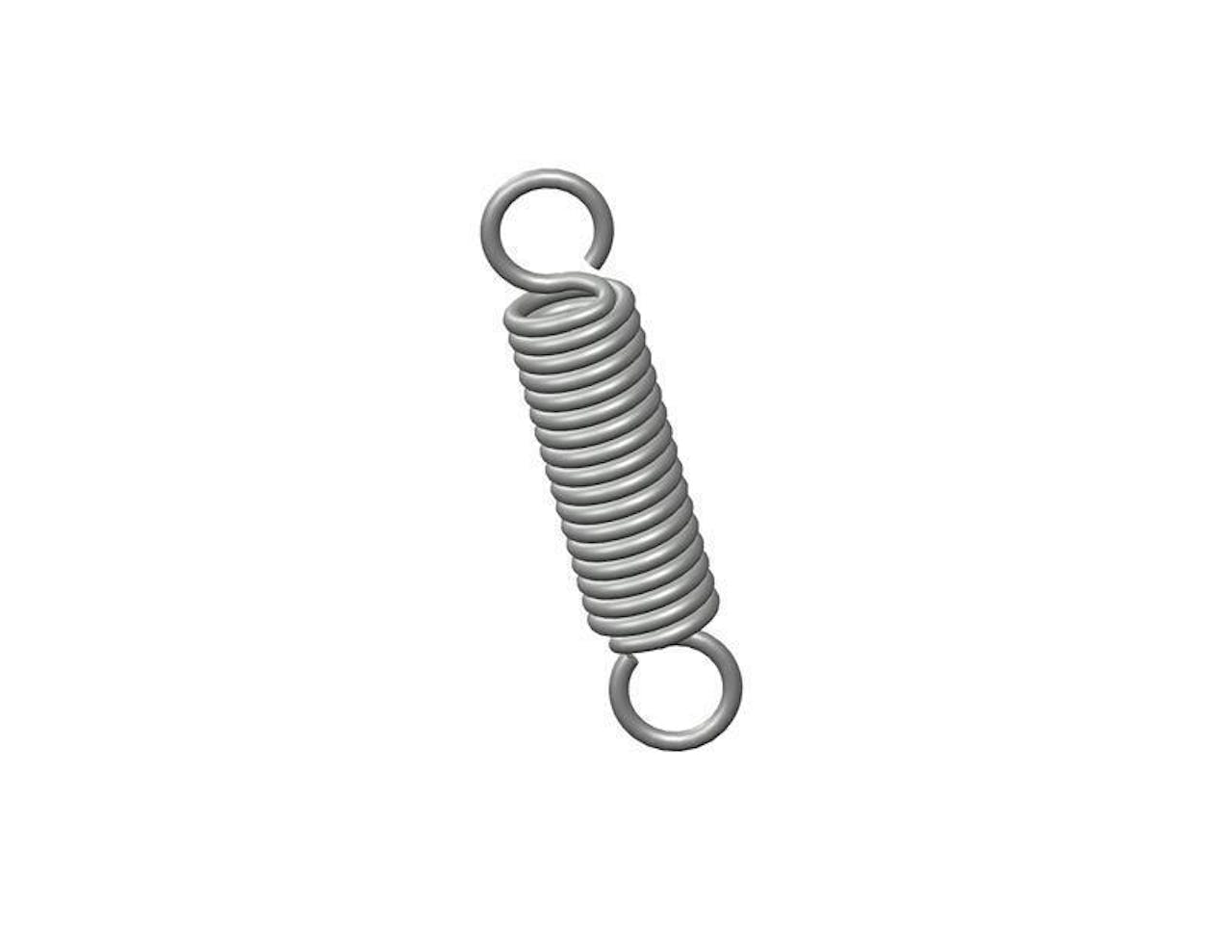

80754CS - 2.25 Inch Music Wire Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in Music Wire. This spring features an O.D. of 0.5 Inch and an initial tension of 3 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80754 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 3 lb |
| Length | 2.25 in |
| Material | Music Wire |
| Outside Diameter | 0.5 in |
| Part Type | Standard |
| Rate | 32 lbs/in |
| SKU | 80754CS |
| Sugg Max Deflection | 0.95 in |
| Sugg Max Load | 33 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.075 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80754 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 1.36 kg |
| Length | 57.15 mm |
| Material | Music Wire |
| Outside Diameter | 12.7 mm |
| Part Type | Standard |
| Rate | 5.6 N/mm |
| SKU | 80754CS |
| Sugg Max Deflection | 24.13 mm |
| Sugg Max Load | 146.78 N |
| Wind Direction | Left |
| Wire Diameter | 1.91 mm |
