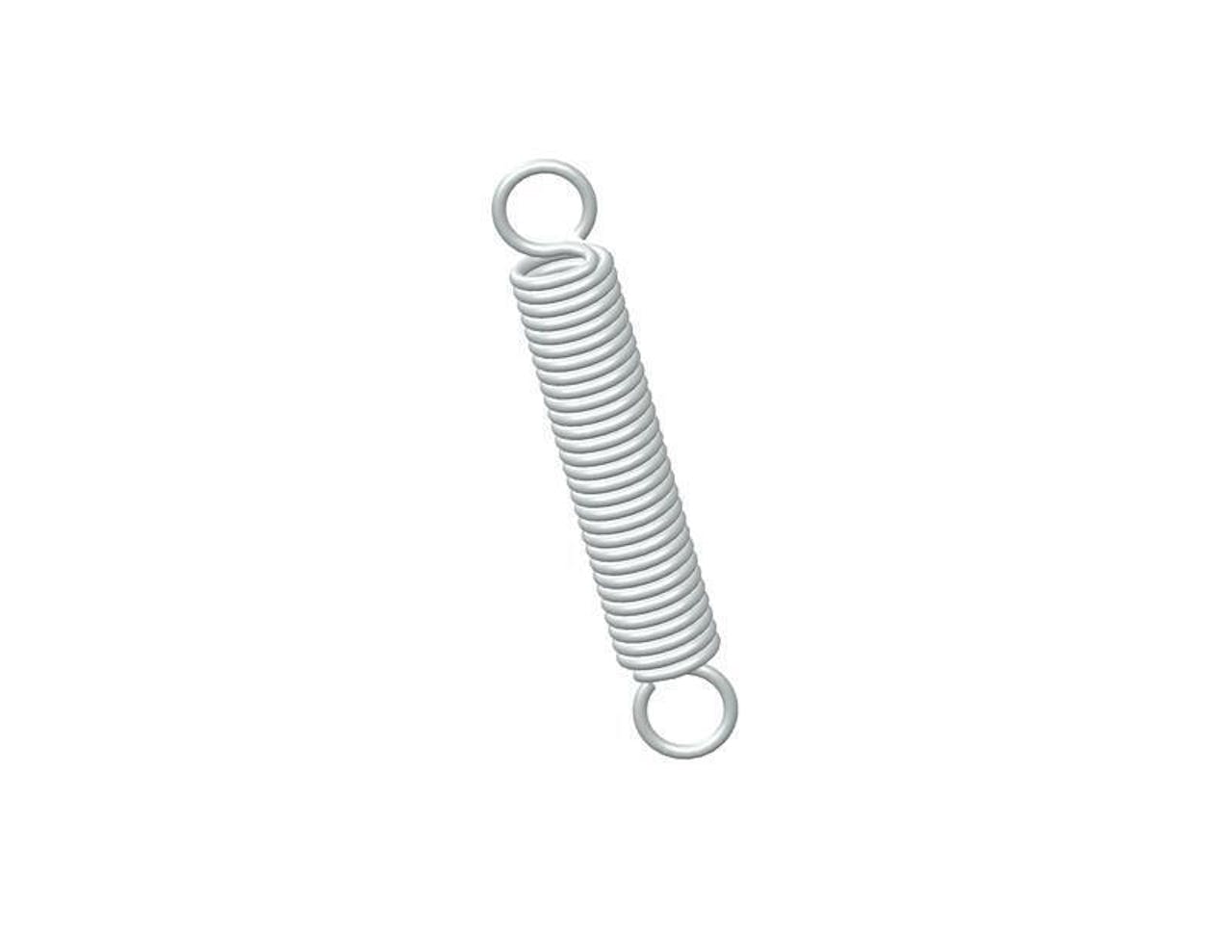

80744SCS - 3 Inch 302/304 Stainless Steel Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 2 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80744S |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 2 lb |
| Length | 3 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.5 in |
| Part Type | Standard |
| Rate | 11 lbs/in |
| SKU | 80744SCS |
| Sugg Max Deflection | 1.5 in |
| Sugg Max Load | 19 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.069 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80744S |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 0.91 kg |
| Length | 76.2 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 12.7 mm |
| Part Type | Standard |
| Rate | 1.93 N/mm |
| SKU | 80744SCS |
| Sugg Max Deflection | 38.1 mm |
| Sugg Max Load | 84.51 N |
| Wind Direction | Left |
| Wire Diameter | 1.75 mm |
