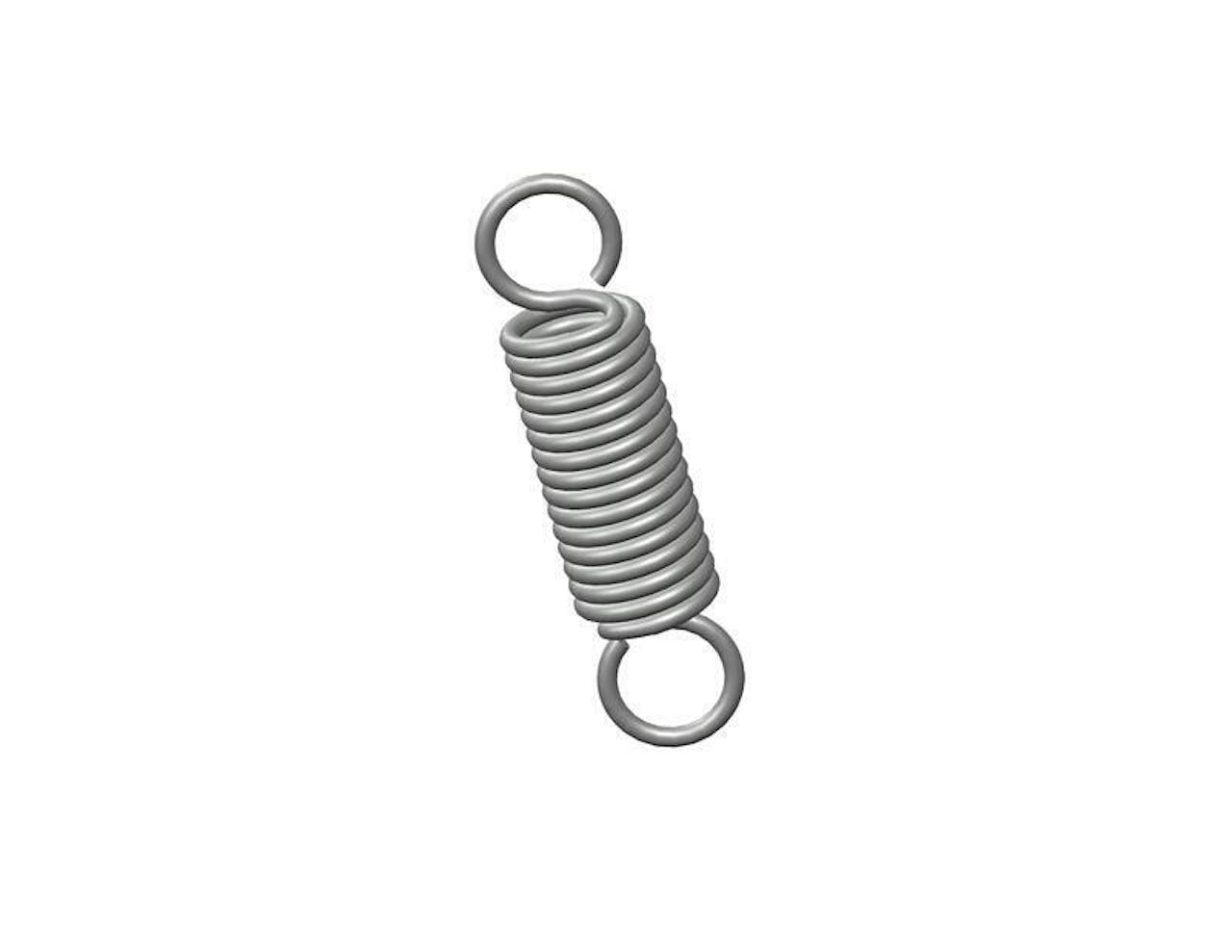

80740CS - 2 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.5 Inch and an initial tension of 5.2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80740
Ends Full Loop
Finish None
Initial Tension 5.2 lb
Length 2 in
Material Music Wire
Outside Diameter 0.5 in
Part Type Standard
Rate 25 lbs/in
SKU 80740CS
Sugg Max Deflection 1 in
Sugg Max Load 28 lbf
Wire Diameter 0.069 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80740
Ends Full Loop
Finish None
Initial Tension 2.36 kg
Length 50.8 mm
Material Music Wire
Outside Diameter 12.7 mm
Part Type Standard
Rate 4.38 N/mm
SKU 80740CS
Sugg Max Deflection 25.4 mm
Sugg Max Load 124.54 N
Wire Diameter 1.75 mm
