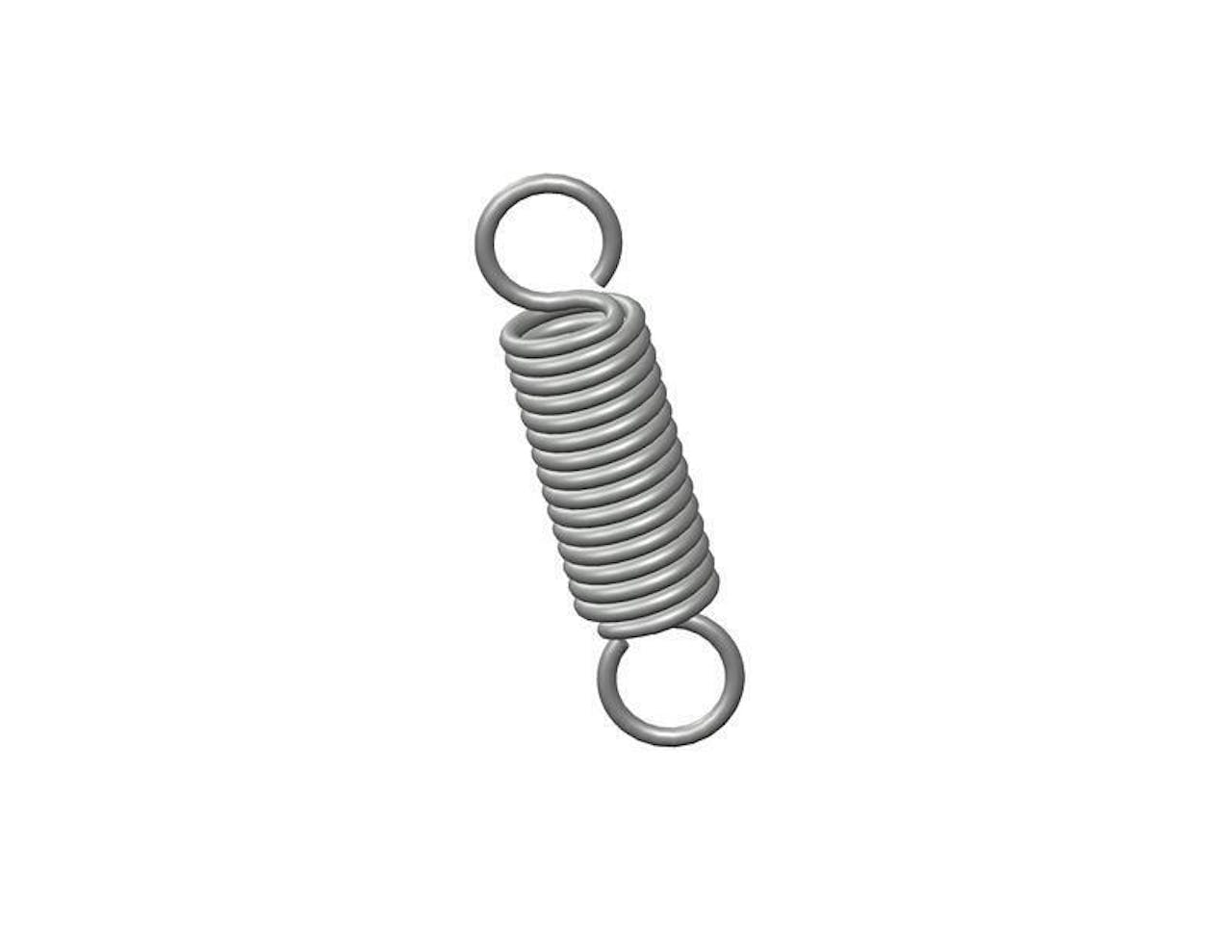

80727CS - 2 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.5 Inch and an initial tension of 4 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80727
Ends Full Loop
Finish None
Initial Tension 4 lb
Length 2 in
Material Music Wire
Outside Diameter 0.5 in
Part Type Standard
Rate 21 lbs/in
SKU 80727CS
Sugg Max Deflection 1.1 in
Sugg Max Load 27 lbf
Wire Diameter 0.067 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80727
Ends Full Loop
Finish None
Initial Tension 1.81 kg
Length 50.8 mm
Material Music Wire
Outside Diameter 12.7 mm
Part Type Standard
Rate 3.68 N/mm
SKU 80727CS
Sugg Max Deflection 27.94 mm
Sugg Max Load 120.1 N
Wire Diameter 1.7 mm
