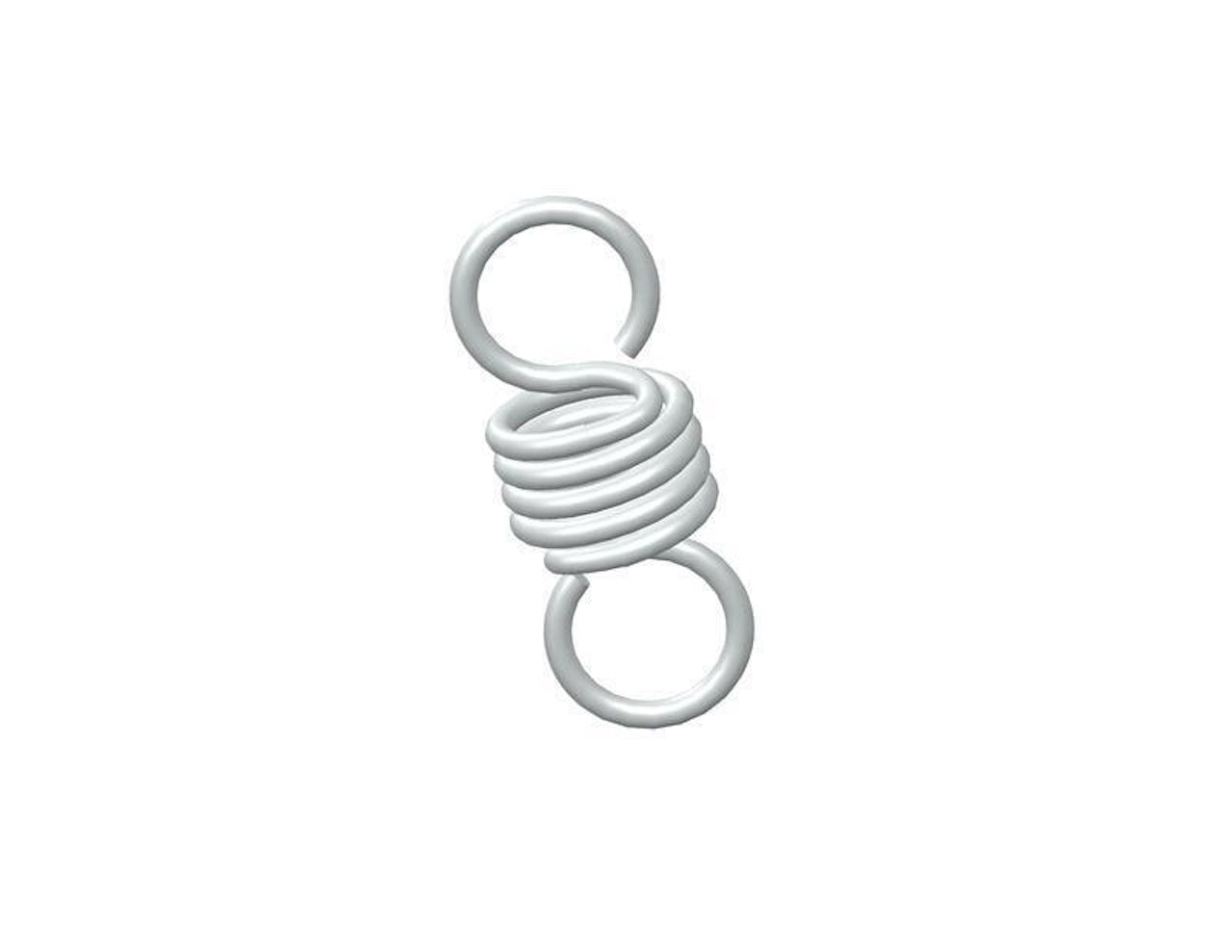

80724SCS - 1.25 Inch 302/304 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 3 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80724S
Ends Full Loop
Finish None
Initial Tension 3 lb
Length 1.25 in
Material 302/304 Stainless Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 47 lbs/in
SKU 80724SCS
Sugg Max Deflection 0.33 in
Sugg Max Load 19 lbf
Wire Diameter 0.067 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80724S
Ends Full Loop
Finish None
Initial Tension 1.36 kg
Length 31.75 mm
Material 302/304 Stainless Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 8.23 N/mm
SKU 80724SCS
Sugg Max Deflection 8.38 mm
Sugg Max Load 84.51 N
Wire Diameter 1.7 mm
