Century Spring

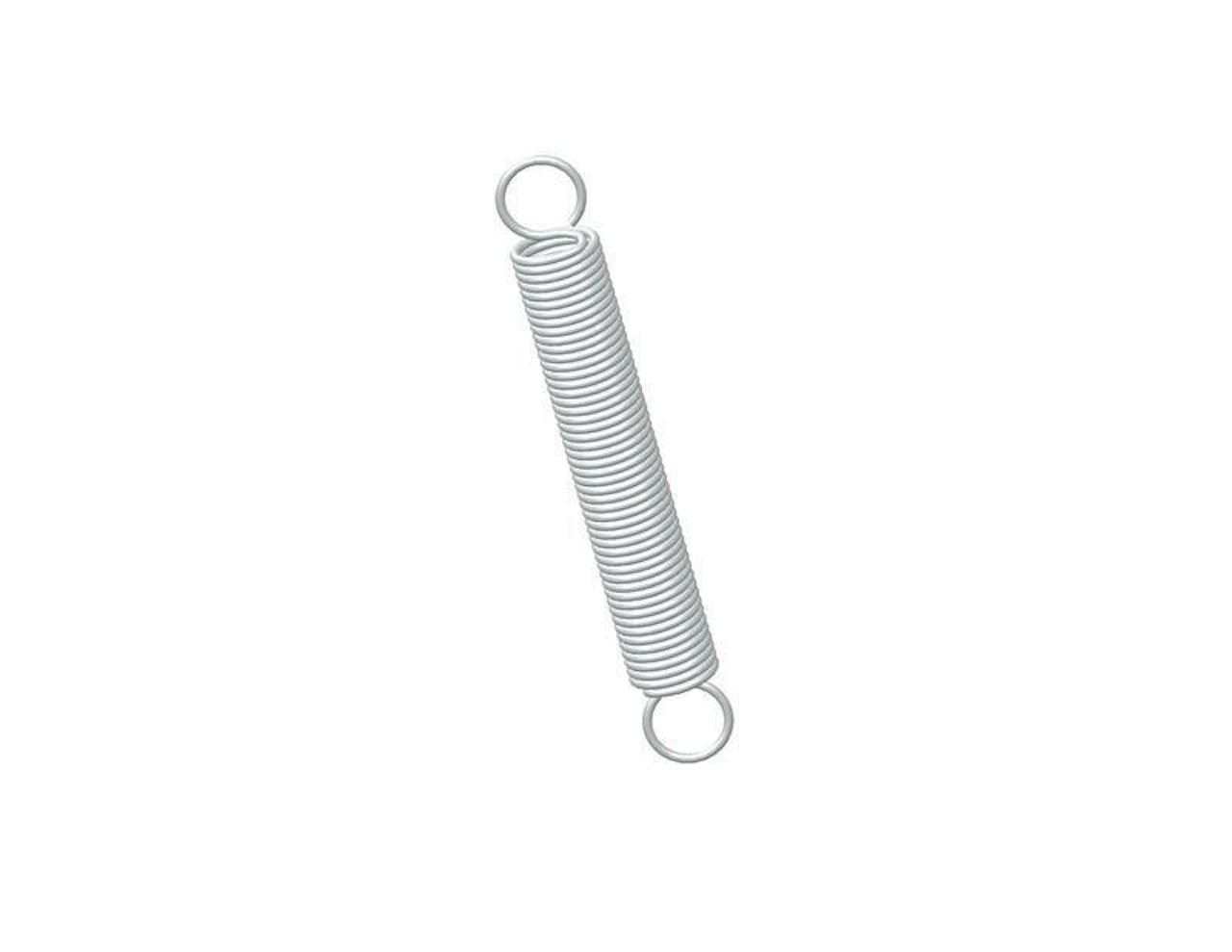

80616SCS - 3 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.42 Inch and an initial tension of 0.7 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80616S
Ends Full Loop
Finish None
Initial Tension 0.7 lb
Length 3 in
Material 302/304 Stainless Steel
Outside Diameter 0.42 in
Part Type Standard
Rate 2 lbs/in
SKU 80616SCS
Sugg Max Deflection 3.2 in
Sugg Max Load 6.9 lbf
Wind Direction Left
Wire Diameter 0.045 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80616S
Ends Full Loop
Finish None
Initial Tension 0.32 kg
Length 76.2 mm
Material 302/304 Stainless Steel
Outside Diameter 10.67 mm
Part Type Standard
Rate 0.35 N/mm
SKU 80616SCS
Sugg Max Deflection 81.28 mm
Sugg Max Load 30.69 N
Wind Direction Left
Wire Diameter 1.14 mm
