Century Spring

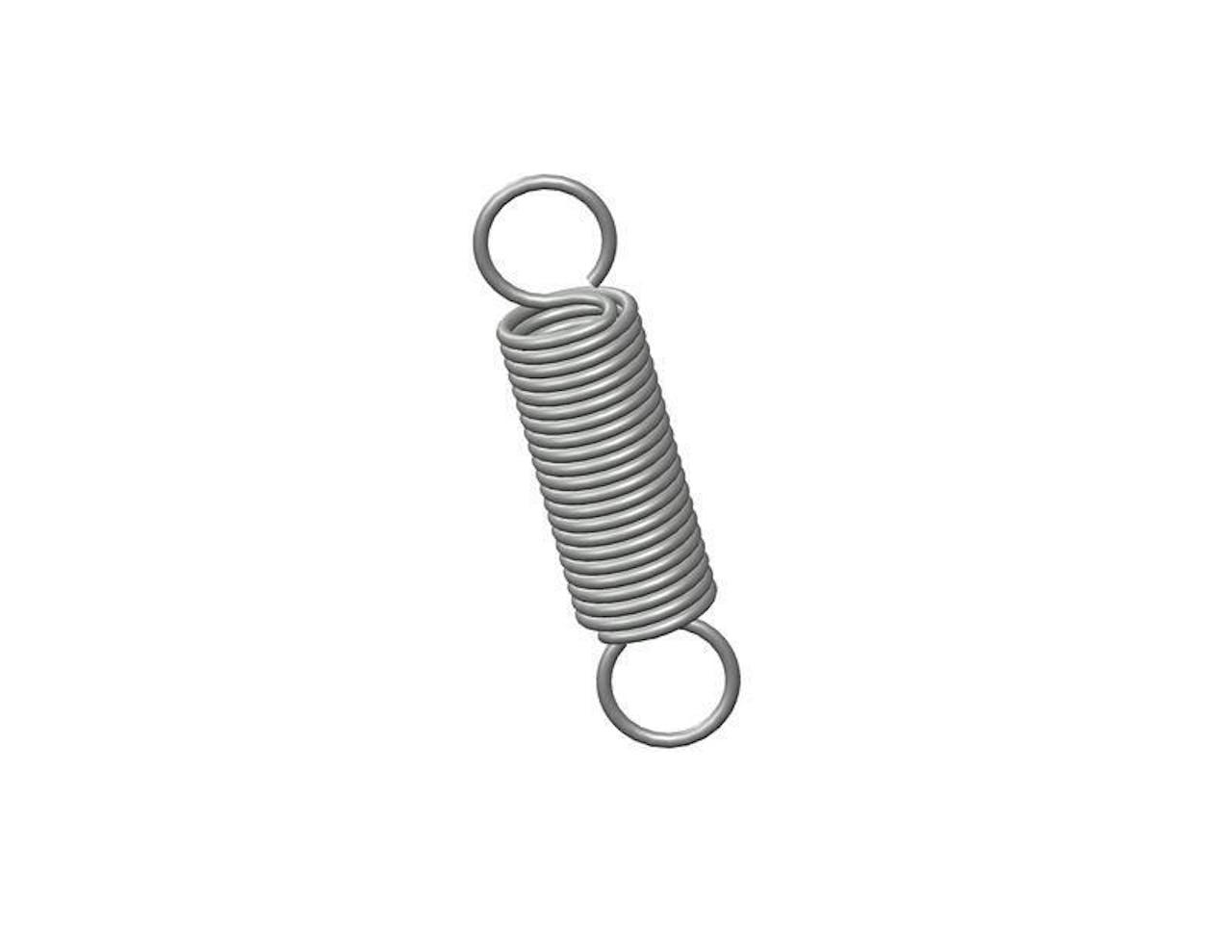

80611CS - 1.75 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.42 Inch and an initial tension of 0.8 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80611
Ends Full Loop
Finish None
Initial Tension 0.8 lb
Length 1.75 in
Material Music Wire
Outside Diameter 0.42 in
Part Type Standard
Rate 5.1 lbs/in
SKU 80611CS
Sugg Max Deflection 1.8 in
Sugg Max Load 10 lbf
Wind Direction Left
Wire Diameter 0.045 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80611
Ends Full Loop
Finish None
Initial Tension 0.36 kg
Length 44.45 mm
Material Music Wire
Outside Diameter 10.67 mm
Part Type Standard
Rate 0.89 N/mm
SKU 80611CS
Sugg Max Deflection 45.72 mm
Sugg Max Load 44.48 N
Wind Direction Left
Wire Diameter 1.14 mm
