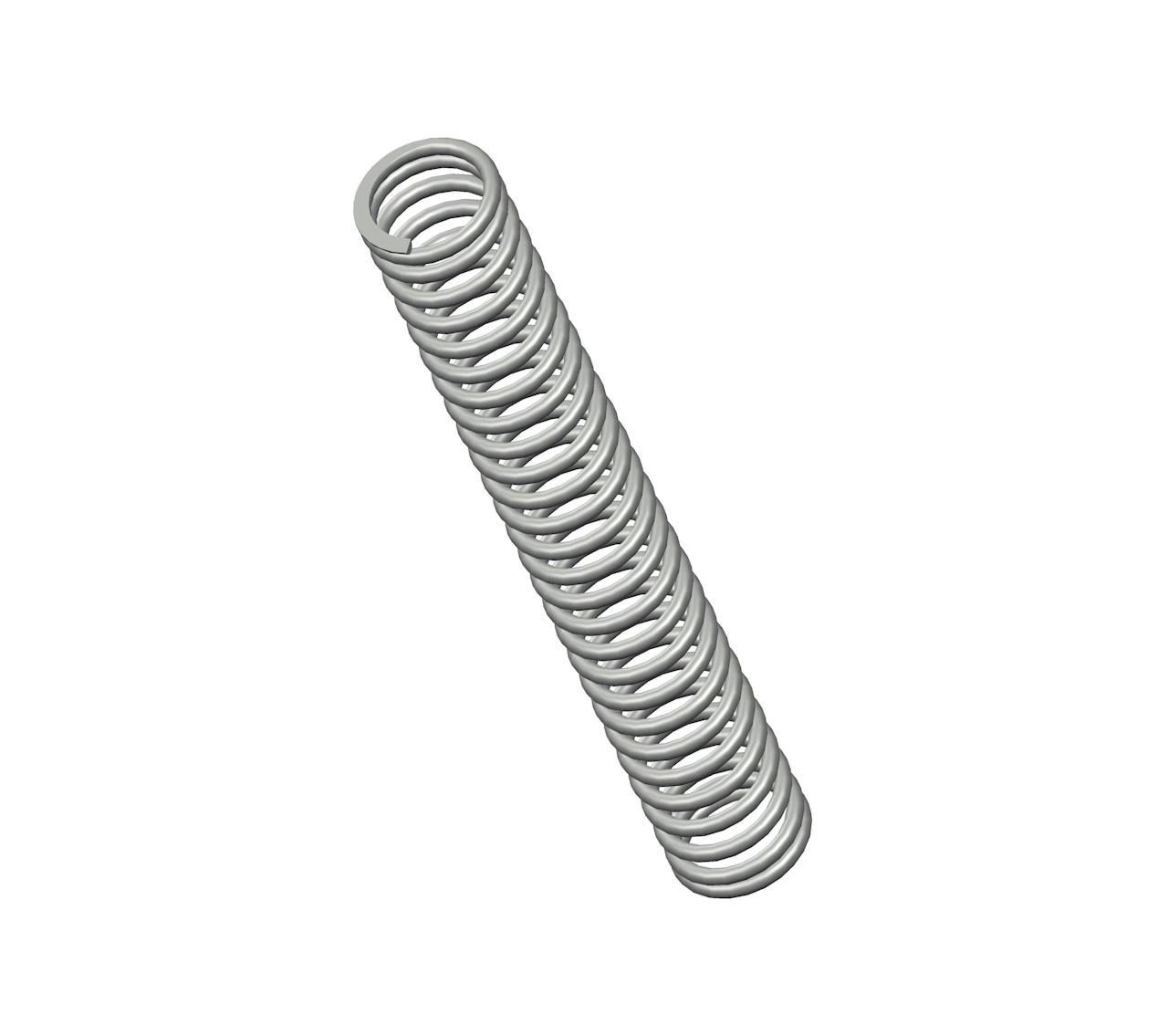

805 - 12 Inch Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from Spring Steel with 27.5 coils and Closed & Ground ends. This spring features an O.D. of 1.75 Inch, and an I.D. of 1.336 Inch.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 805 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 12 in |
| Inside Diameter | 1.336 in |
| Material | Spring Steel |
| Outside Diameter | 1.75 in |
| Part Type | Standard |
| Rate | 28 lbs/in |
| SKU | 805CS |
| Solid Length | 5.69 in |
| Suggested Max Deflection | 5.1 in |
| Suggested Max Load | 144 lbf |
| Total Coils | 27.5 |
| Wire Diameter | 0.207 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 805 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 304.8 mm |
| Inside Diameter | 33.93 mm |
| Material | Spring Steel |
| Outside Diameter | 44.45 mm |
| Part Type | Standard |
| Rate | 4.9 N/mm |
| SKU | 805CS |
| Solid Length | 144.53 mm |
| Suggested Max Deflection | 129.54 mm |
| Suggested Max Load | 640.51 N |
| Total Coils | 27.5 |
| Wire Diameter | 5.26 mm |
The compression spring 805CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality hard drawn, the 805 compression spring design exhibits exceptional tensile strength and resilience.
The 805 design is manufactured with a free length of 12", with an outer diameter of 1.75", an inner diameter of 1.336", and a total of 27.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 28 lbs/in.
The 805CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 805 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 805 design is manufactured with a free length of 12", with an outer diameter of 1.75", an inner diameter of 1.336", and a total of 27.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 28 lbs/in.
The 805CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 805 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
