Shop Online > Springs > Extension > Regular

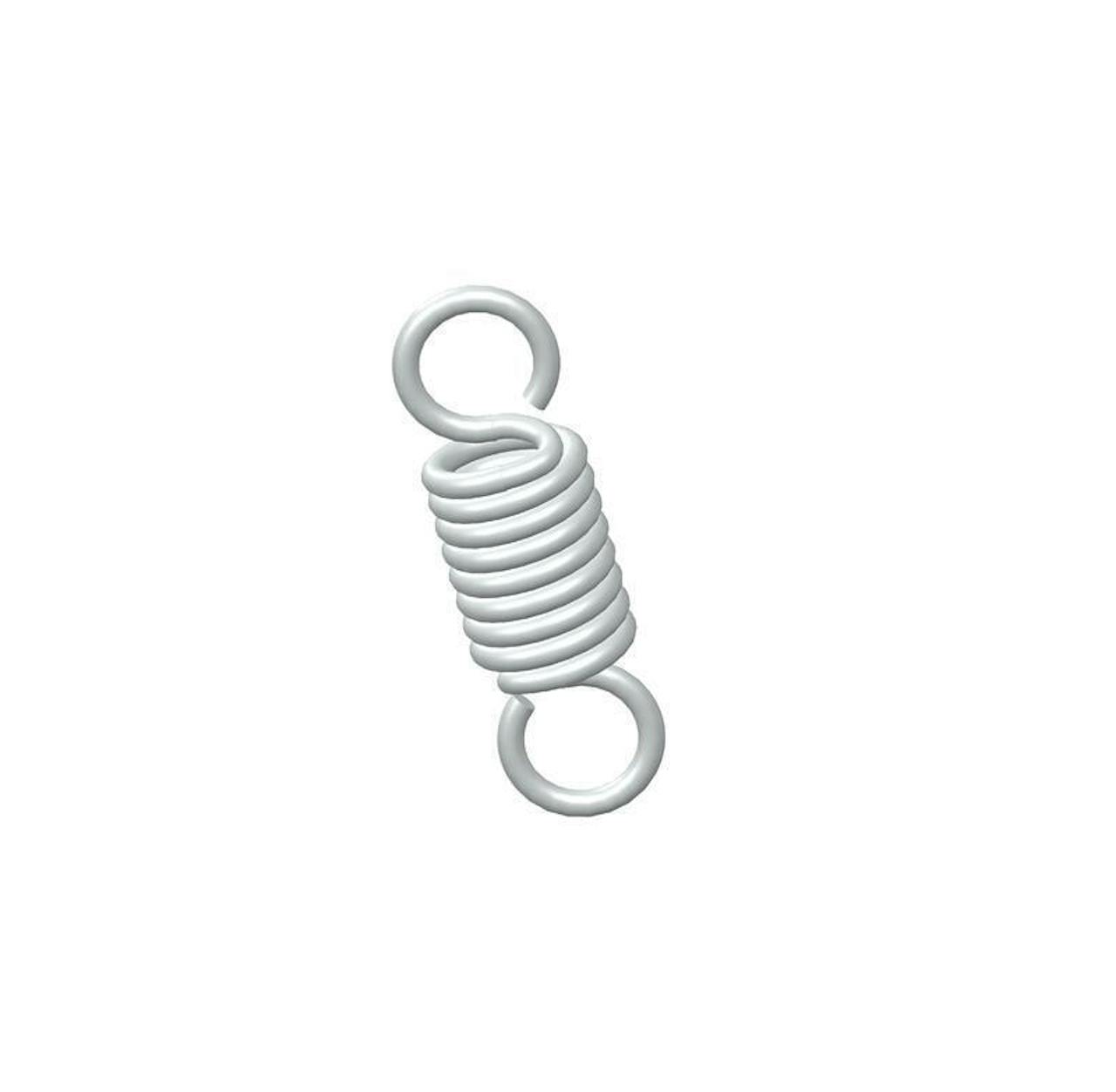

80579SCS - 1.13 Inch 302/304 Stainless Steel Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.359 Inch and an initial tension of 2 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80579S |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 2 lb |
| Length | 1.13 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.359 in |
| Part Type | Standard |
| Rate | 52 lbs/in |
| SKU | 80579SCS |
| Sugg Max Deflection | 0.26 in |
| Sugg Max Load | 15 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.058 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80579S |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 0.91 kg |
| Length | 28.7 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 9.12 mm |
| Part Type | Standard |
| Rate | 9.11 N/mm |
| SKU | 80579SCS |
| Sugg Max Deflection | 6.6 mm |
| Sugg Max Load | 66.72 N |
| Wind Direction | Left |
| Wire Diameter | 1.47 mm |
