Century Spring

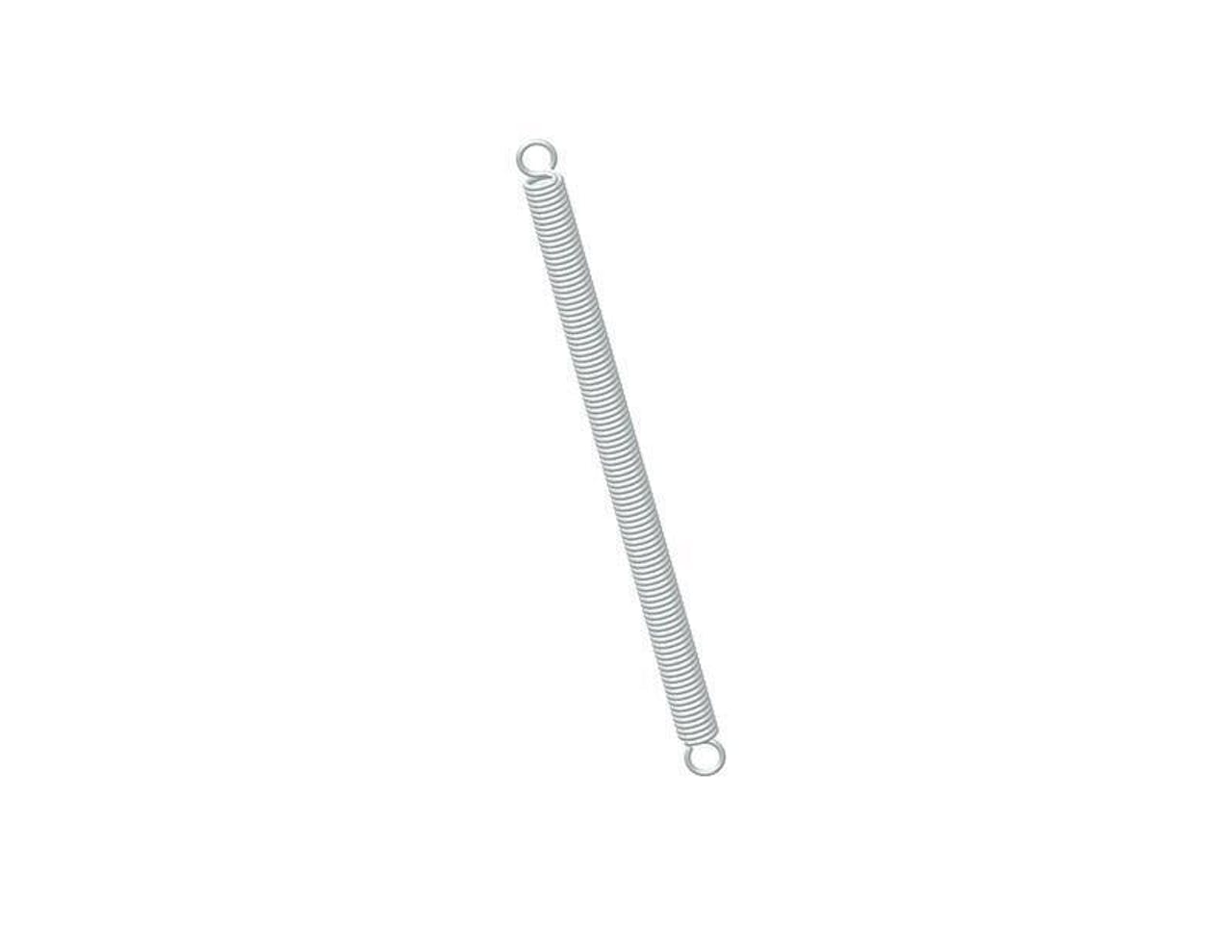

80577SCS - 6 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.359 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80577S
Ends Full Loop
Finish None
Initial Tension 2 lb
Length 6 in
Material 302/304 Stainless Steel
Outside Diameter 0.359 in
Part Type Standard
Rate 3.8 lbs/in
SKU 80577SCS
Sugg Max Deflection 3.1 in
Sugg Max Load 13 lbf
Wind Direction Left
Wire Diameter 0.055 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80577S
Ends Full Loop
Finish None
Initial Tension 0.91 kg
Length 152.4 mm
Material 302/304 Stainless Steel
Outside Diameter 9.12 mm
Part Type Standard
Rate 0.67 N/mm
SKU 80577SCS
Sugg Max Deflection 78.74 mm
Sugg Max Load 57.82 N
Wind Direction Left
Wire Diameter 1.4 mm
