Century Spring

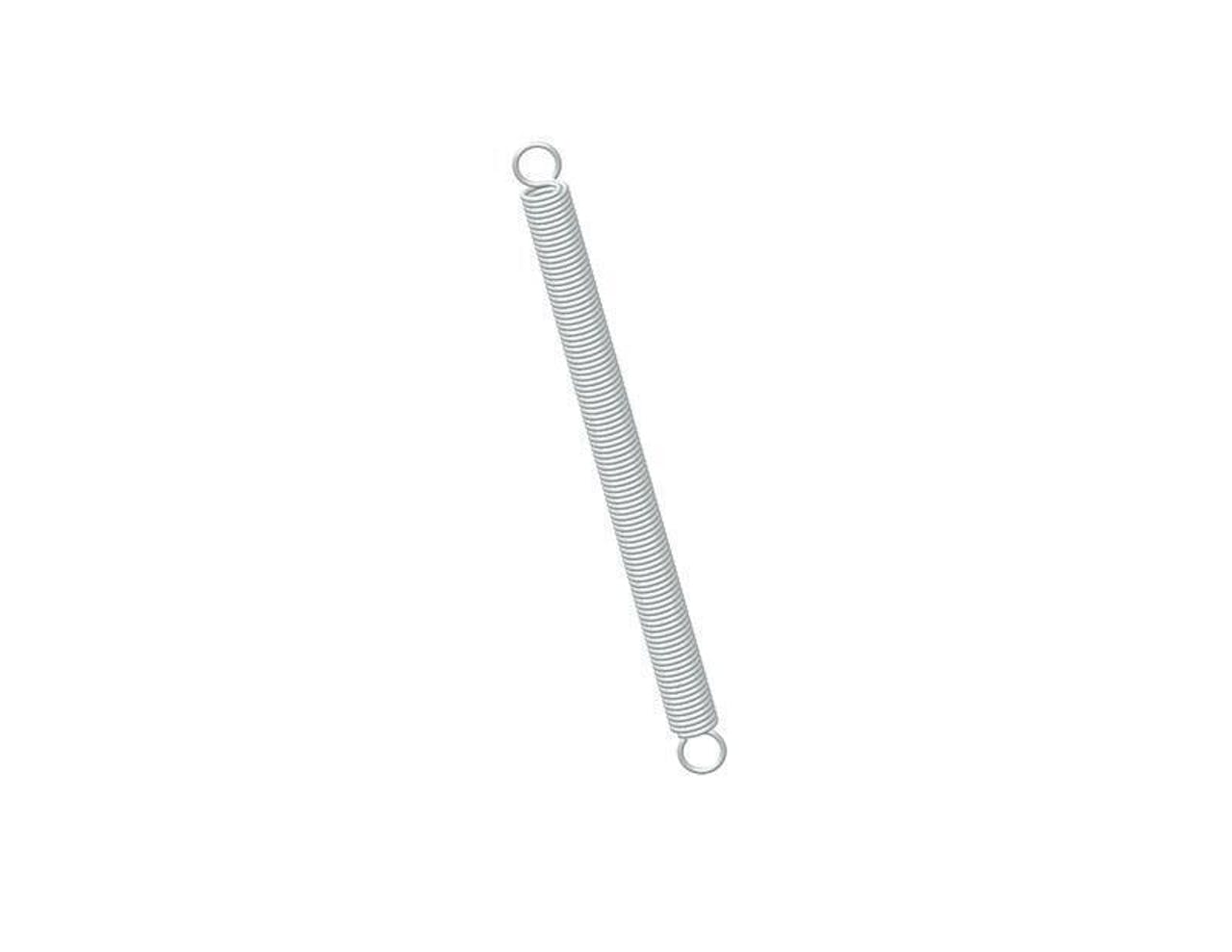

80530SCS - 5 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.359 Inch and an initial tension of 0.8 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80530S
Ends Full Loop
Finish None
Initial Tension 0.8 lb
Length 5 in
Material 302/304 Stainless Steel
Outside Diameter 0.359 in
Part Type Standard
Rate 1.6 lbs/in
SKU 80530SCS
Sugg Max Deflection 4.4 in
Sugg Max Load 7.9 lbf
Wind Direction Left
Wire Diameter 0.045 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80530S
Ends Full Loop
Finish None
Initial Tension 0.36 kg
Length 127 mm
Material 302/304 Stainless Steel
Outside Diameter 9.12 mm
Part Type Standard
Rate 0.28 N/mm
SKU 80530SCS
Sugg Max Deflection 111.76 mm
Sugg Max Load 35.14 N
Wind Direction Left
Wire Diameter 1.14 mm
