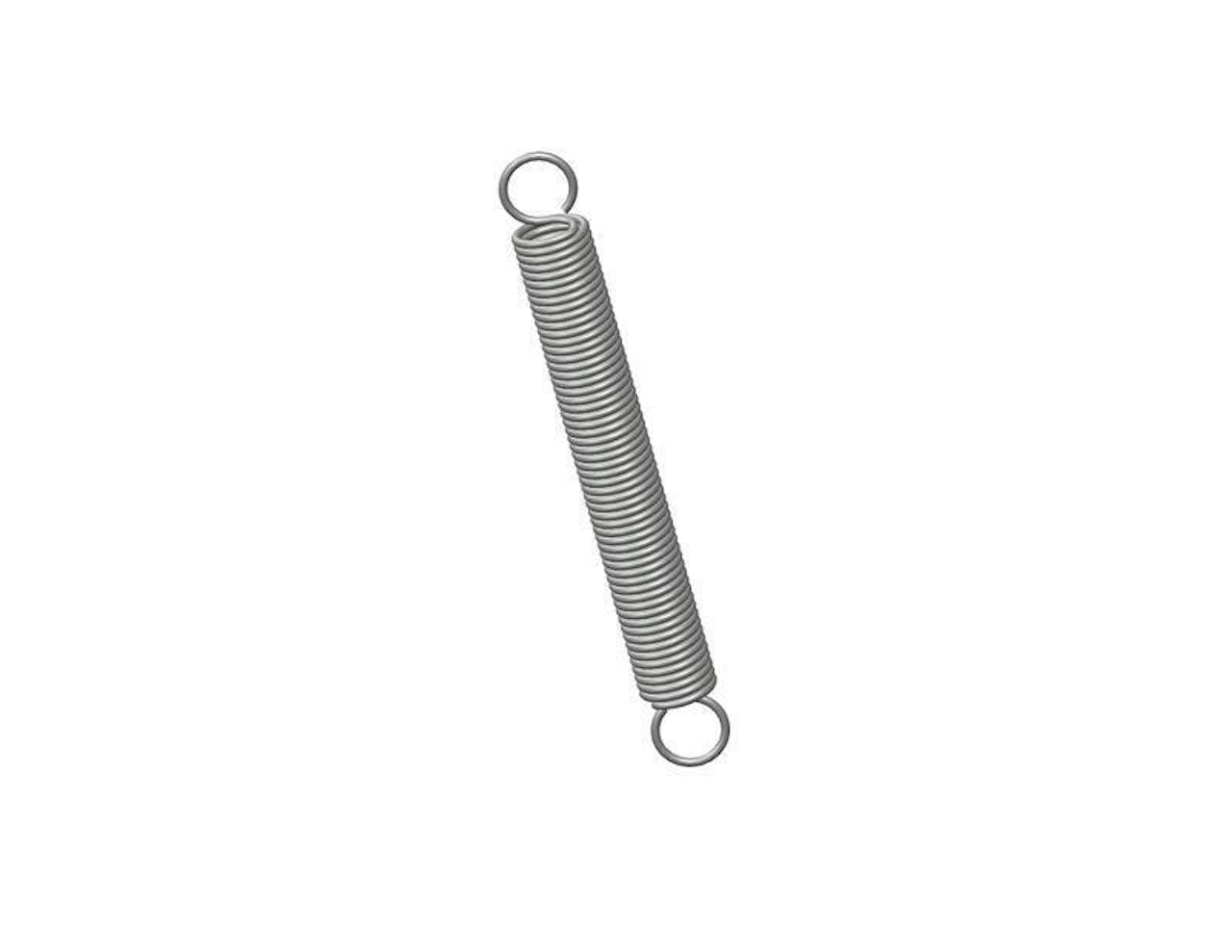

80510CS - 3 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.359 Inch and an initial tension of 0.8 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80510
Ends Full Loop
Finish None
Initial Tension 0.8 lb
Length 3 in
Material Music Wire
Outside Diameter 0.359 in
Part Type Standard
Rate 2.1 lbs/in
SKU 80510CS
Sugg Max Deflection 3.9 in
Sugg Max Load 8.9 lbf
Wire Diameter 0.041 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80510
Ends Full Loop
Finish None
Initial Tension 0.36 kg
Length 76.2 mm
Material Music Wire
Outside Diameter 9.12 mm
Part Type Standard
Rate 0.37 N/mm
SKU 80510CS
Sugg Max Deflection 99.06 mm
Sugg Max Load 39.59 N
Wire Diameter 1.04 mm
