Century Spring

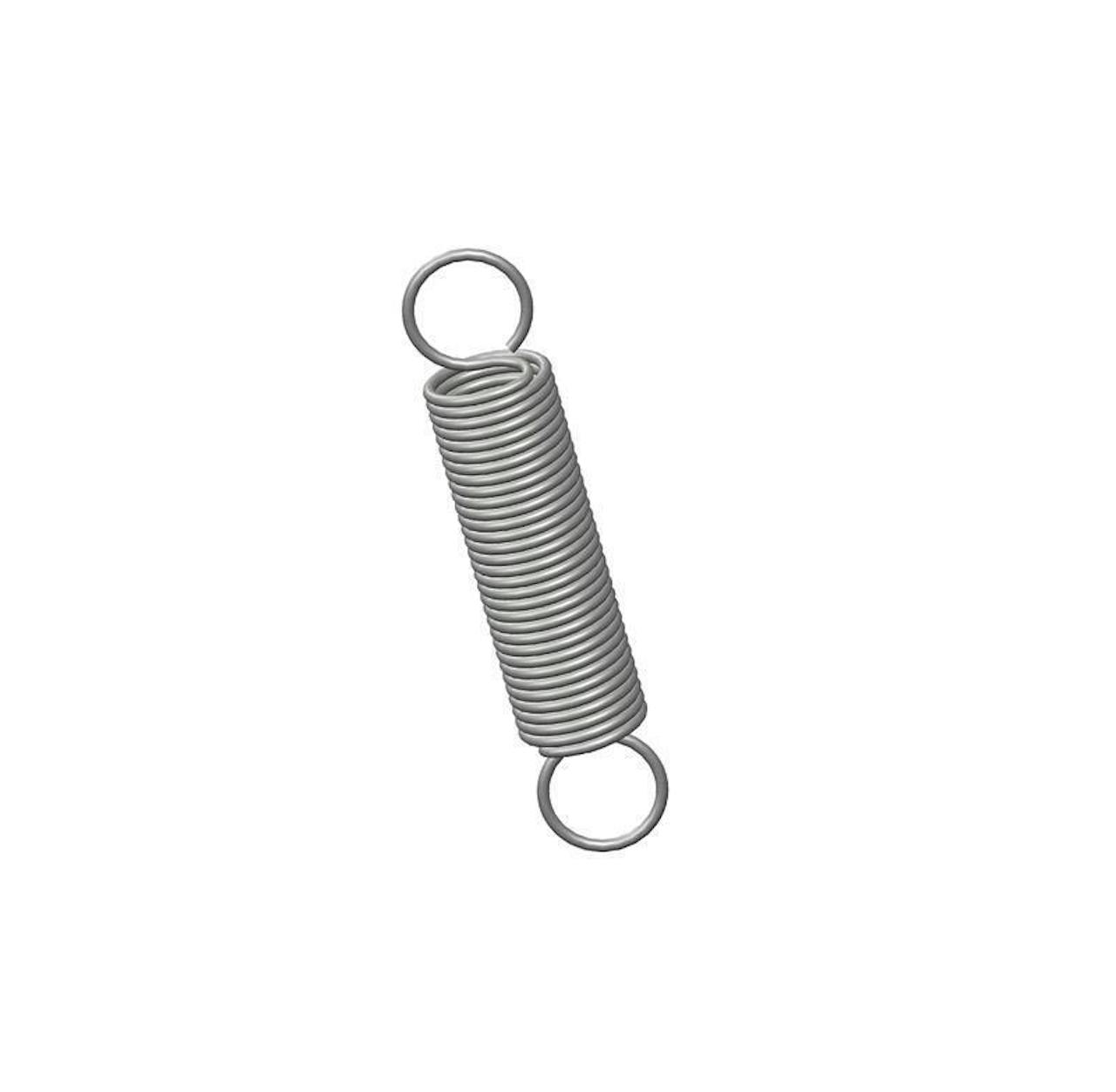

80462CS - 1.75 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.359 Inch and an initial tension of 0.5 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80462
Ends Full Loop
Finish None
Initial Tension 0.5 lb
Length 1.75 in
Material Music Wire
Outside Diameter 0.359 in
Part Type Standard
Rate 1.7 lbs/in
SKU 80462CS
Sugg Max Deflection 2.9 in
Sugg Max Load 5.4 lbf
Wind Direction Left
Wire Diameter 0.034 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80462
Ends Full Loop
Finish None
Initial Tension 0.23 kg
Length 44.45 mm
Material Music Wire
Outside Diameter 9.12 mm
Part Type Standard
Rate 0.3 N/mm
SKU 80462CS
Sugg Max Deflection 73.66 mm
Sugg Max Load 24.02 N
Wind Direction Left
Wire Diameter 0.86 mm
