Century Spring

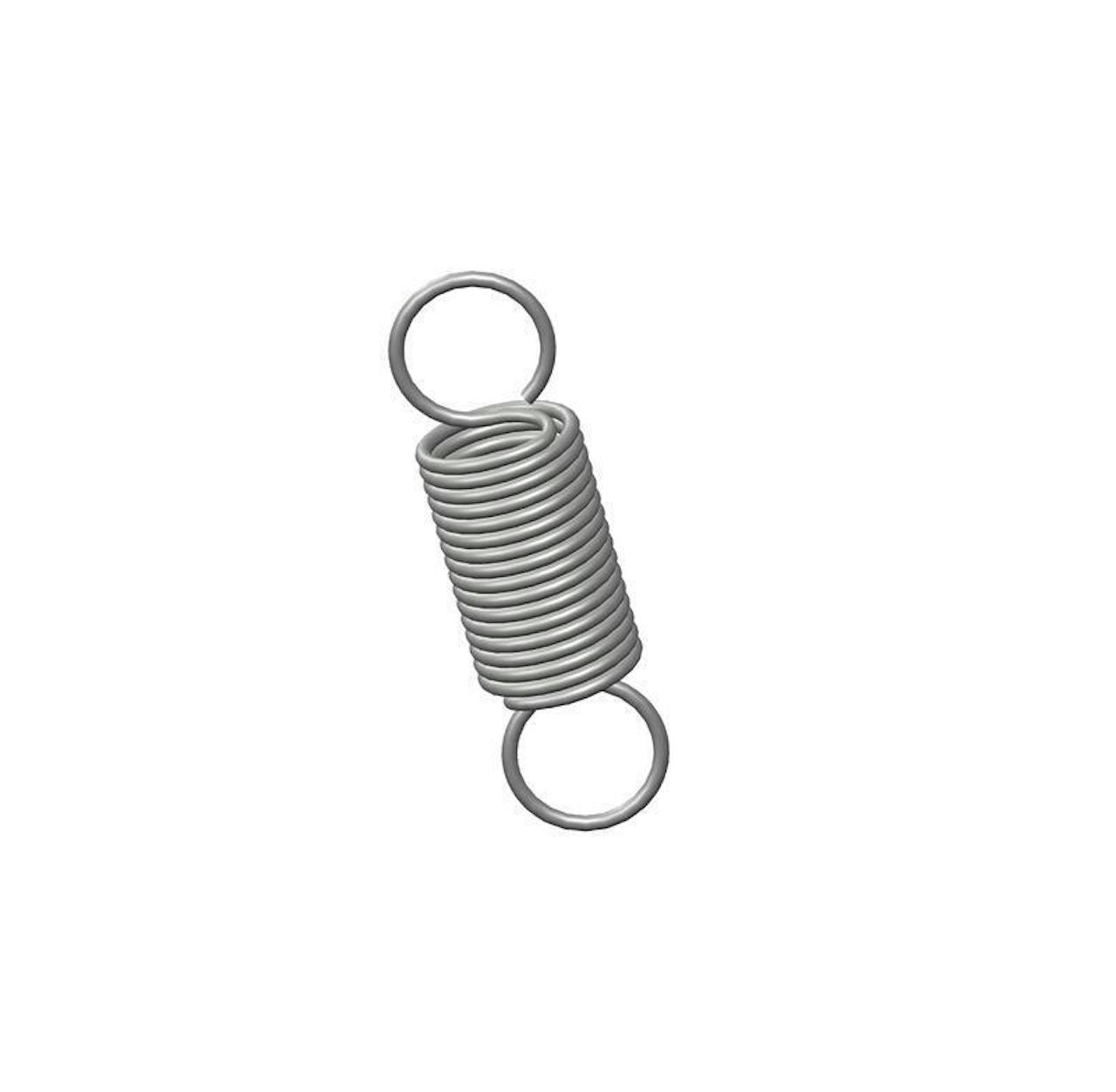

80459CS - 1.25 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.359 Inch and an initial tension of 0.5 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80459
Ends Full Loop
Finish None
Initial Tension 0.5 lb
Length 1.25 in
Material Music Wire
Outside Diameter 0.359 in
Part Type Standard
Rate 3.1 lbs/in
SKU 80459CS
Sugg Max Deflection 1.6 in
Sugg Max Load 5.4 lbf
Wind Direction Left
Wire Diameter 0.034 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80459
Ends Full Loop
Finish None
Initial Tension 0.23 kg
Length 31.75 mm
Material Music Wire
Outside Diameter 9.12 mm
Part Type Standard
Rate 0.54 N/mm
SKU 80459CS
Sugg Max Deflection 40.64 mm
Sugg Max Load 24.02 N
Wind Direction Left
Wire Diameter 0.86 mm
