Century Spring

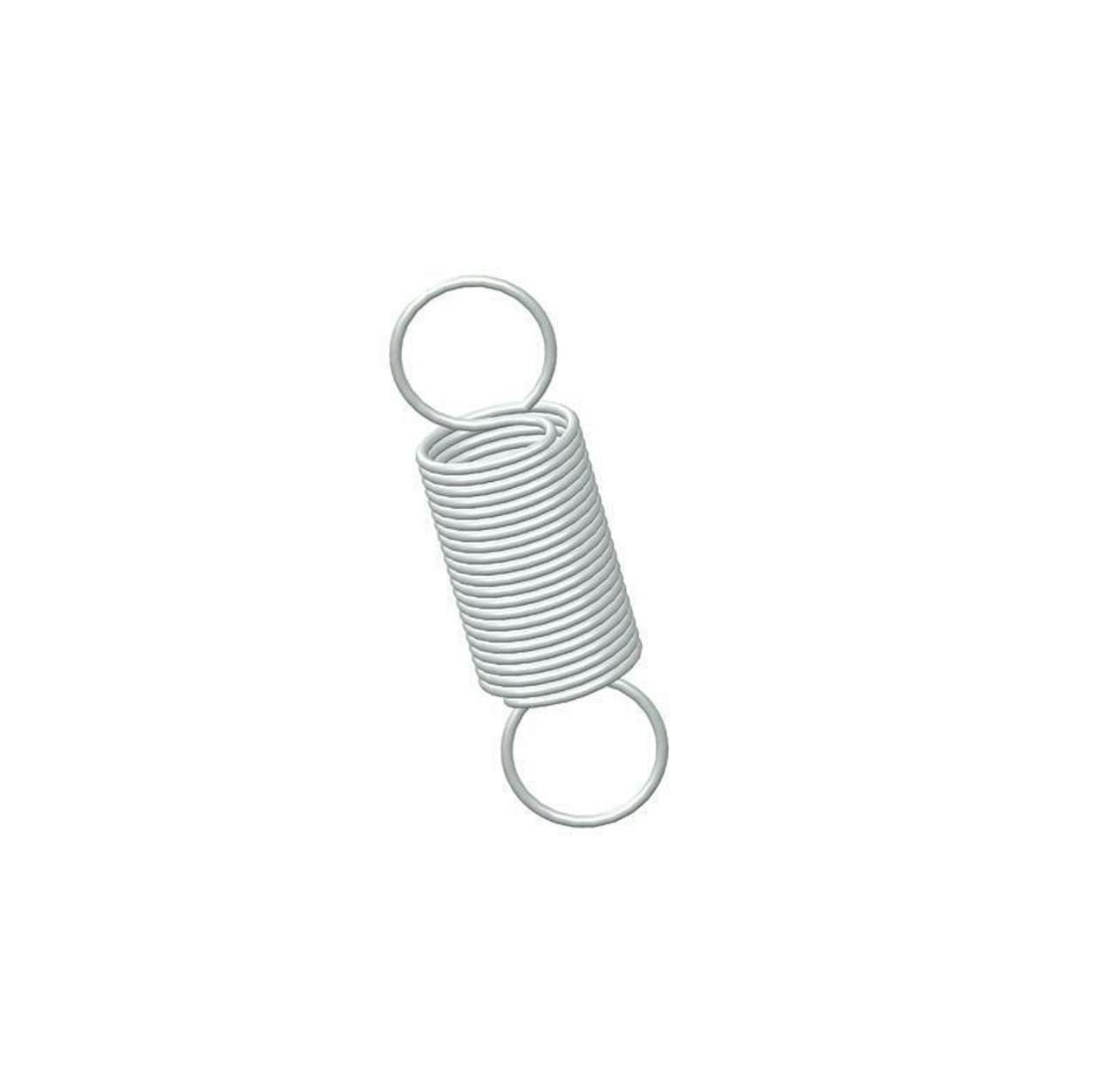

80439SCS - 1.25 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.359 Inch and an initial tension of 0.2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80439S
Ends Full Loop
Finish None
Initial Tension 0.2 lb
Length 1.25 in
Material 302/304 Stainless Steel
Outside Diameter 0.359 in
Part Type Standard
Rate 0.65 lbs/in
SKU 80439SCS
Sugg Max Deflection 2.3 in
Sugg Max Load 1.7 lbf
Wind Direction Left
Wire Diameter 0.026 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80439S
Ends Full Loop
Finish None
Initial Tension 0.09 kg
Length 31.75 mm
Material 302/304 Stainless Steel
Outside Diameter 9.12 mm
Part Type Standard
Rate 0.11 N/mm
SKU 80439SCS
Sugg Max Deflection 58.42 mm
Sugg Max Load 7.56 N
Wind Direction Left
Wire Diameter 0.66 mm
