Century Spring

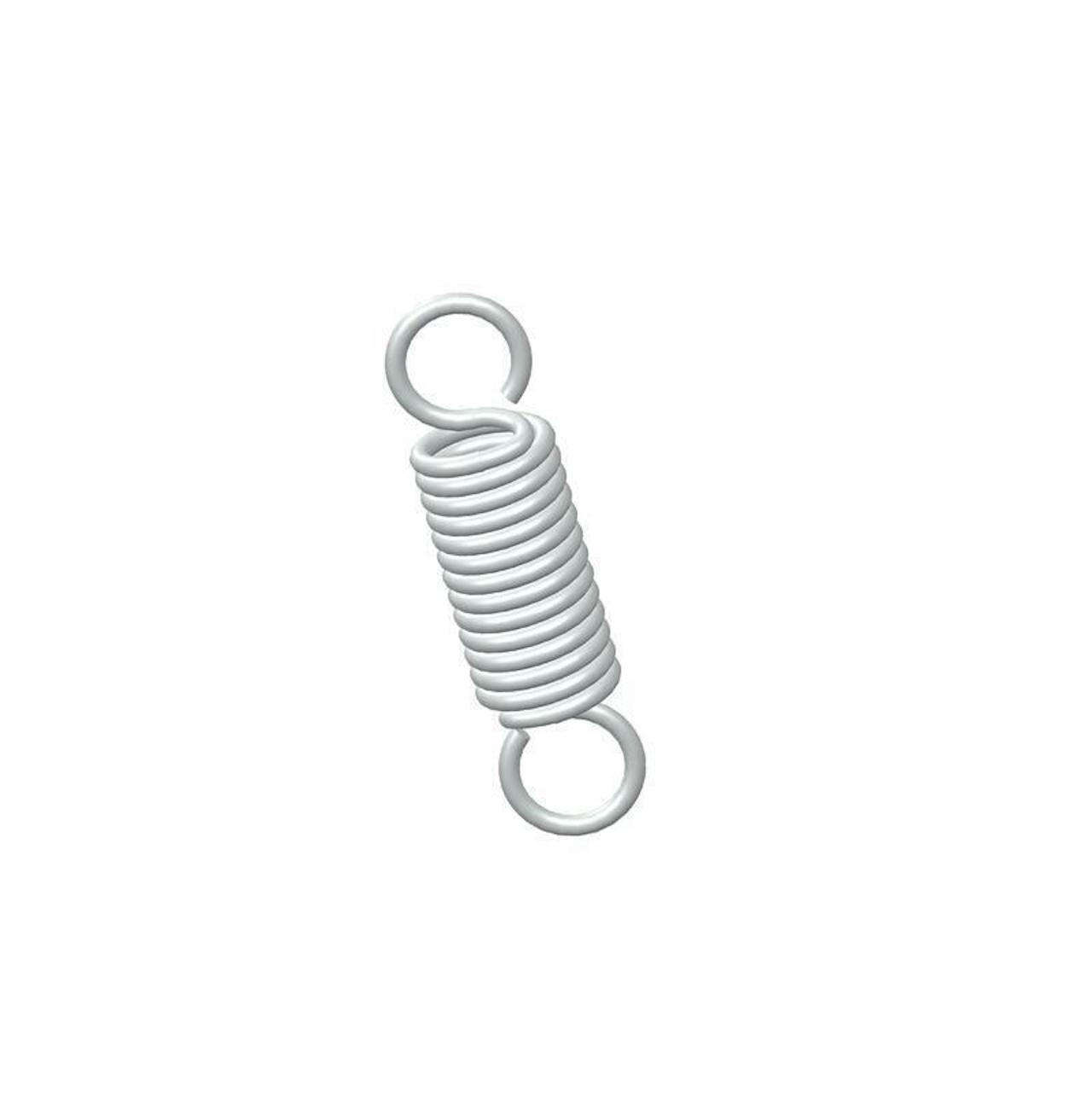

80405SCS - 1.13 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.3 Inch and an initial tension of 1 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80405S
Ends Full Loop
Finish None
Initial Tension 1 lb
Length 1.13 in
Material 302/304 Stainless Steel
Outside Diameter 0.3 in
Part Type Standard
Rate 15 lbs/in
SKU 80405SCS
Sugg Max Deflection 0.47 in
Sugg Max Load 8.3 lbf
Wind Direction Left
Wire Diameter 0.043 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80405S
Ends Full Loop
Finish None
Initial Tension 0.45 kg
Length 28.7 mm
Material 302/304 Stainless Steel
Outside Diameter 7.62 mm
Part Type Standard
Rate 2.63 N/mm
SKU 80405SCS
Sugg Max Deflection 11.94 mm
Sugg Max Load 36.92 N
Wind Direction Left
Wire Diameter 1.09 mm
