Century Spring

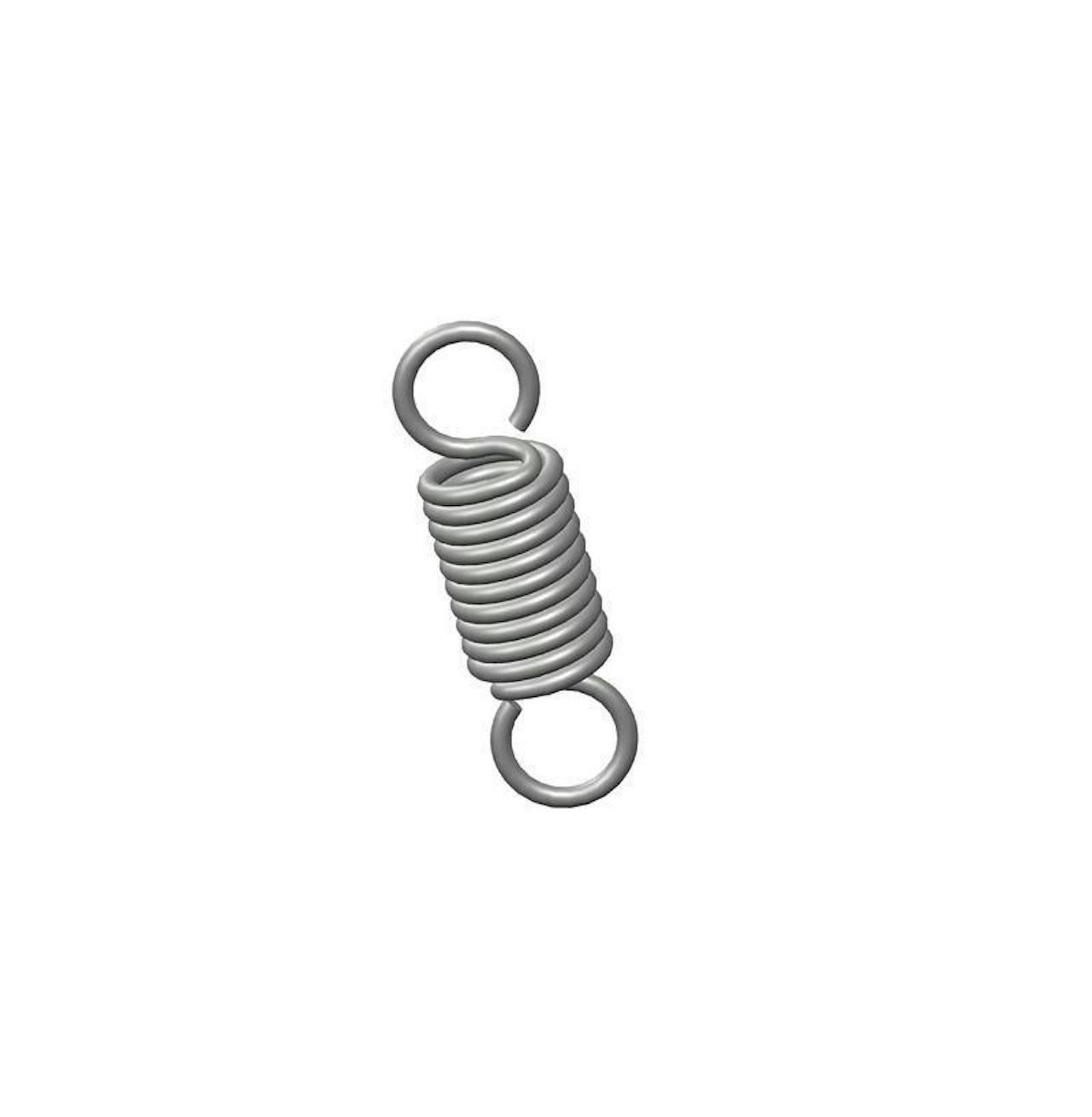

80404CS - 1 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.3 Inch and an initial tension of 2.2 pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80404
Ends Full Loop
Finish None
Initial Tension 2.2 lb
Length 1 in
Material Music Wire
Outside Diameter 0.3 in
Part Type Standard
Rate 22 lbs/in
SKU 80404CS
Sugg Max Deflection 0.48 in
Sugg Max Load 12 lbf
Wind Direction Left
Wire Diameter 0.043 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80404
Ends Full Loop
Finish None
Initial Tension 1 kg
Length 25.4 mm
Material Music Wire
Outside Diameter 7.62 mm
Part Type Standard
Rate 3.85 N/mm
SKU 80404CS
Sugg Max Deflection 12.19 mm
Sugg Max Load 53.38 N
Wind Direction Left
Wire Diameter 1.09 mm
