Century Spring

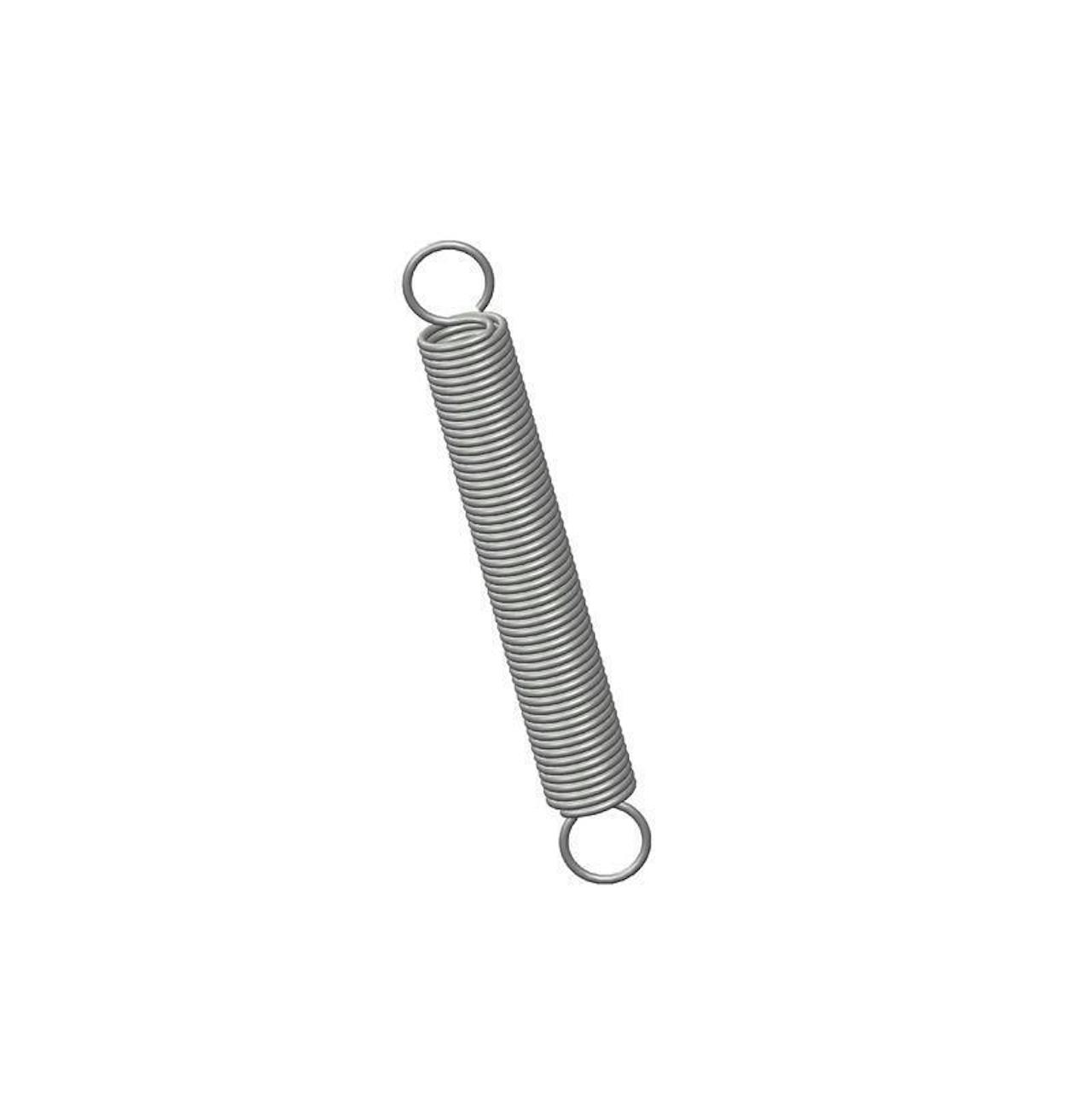

80388CS - 2.25 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.3 Inch and an initial tension of 0.4 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80388
Ends Full Loop
Finish None
Initial Tension 0.4 lb
Length 2.25 in
Material Music Wire
Outside Diameter 0.3 in
Part Type Standard
Rate 1.2 lbs/in
SKU 80388CS
Sugg Max Deflection 3.7 in
Sugg Max Load 4.8 lbf
Wind Direction Left
Wire Diameter 0.031 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80388
Ends Full Loop
Finish None
Initial Tension 0.18 kg
Length 57.15 mm
Material Music Wire
Outside Diameter 7.62 mm
Part Type Standard
Rate 0.21 N/mm
SKU 80388CS
Sugg Max Deflection 93.98 mm
Sugg Max Load 21.35 N
Wind Direction Left
Wire Diameter 0.79 mm
