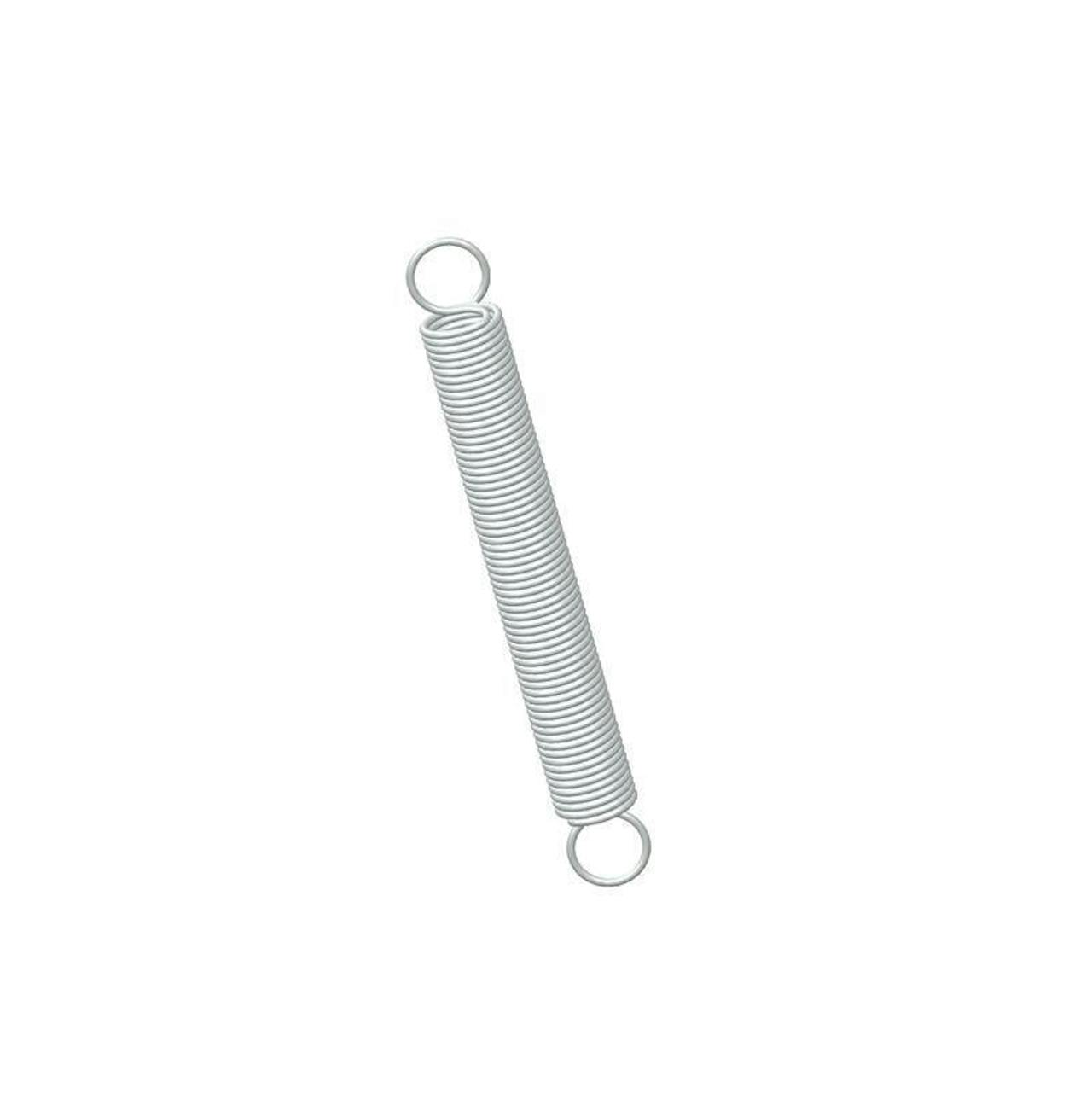

80380SCS - 2.5 Inch 302/304 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.3 Inch and an initial tension of 0.3 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80380S
Ends Full Loop
Finish None
Initial Tension 0.3 lb
Length 2.5 in
Material 302/304 Stainless Steel
Outside Diameter 0.3 in
Part Type Standard
Rate 0.71 lbs/in
SKU 80380SCS
Sugg Max Deflection 3.8 in
Sugg Max Load 3 lbf
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80380S
Ends Full Loop
Finish None
Initial Tension 0.14 kg
Length 63.5 mm
Material 302/304 Stainless Steel
Outside Diameter 7.62 mm
Part Type Standard
Rate 0.12 N/mm
SKU 80380SCS
Sugg Max Deflection 96.52 mm
Sugg Max Load 13.34 N
Wire Diameter 0.76 mm
