Century Spring

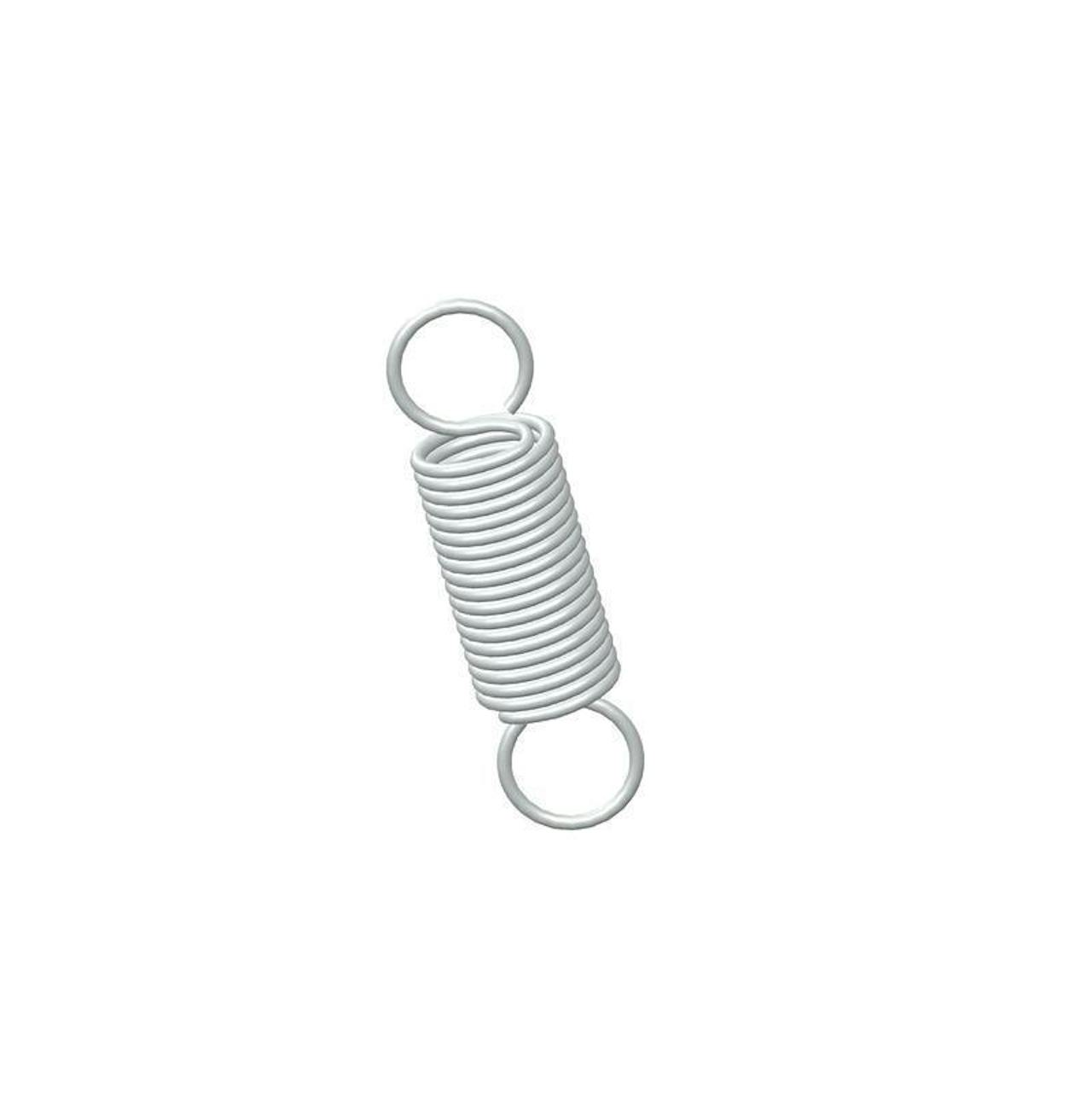

80373SCS - 1.13 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.3 Inch and an initial tension of 0.3 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80373S
Ends Full Loop
Finish None
Initial Tension 0.3 lb
Length 1.13 in
Material 302/304 Stainless Steel
Outside Diameter 0.3 in
Part Type Standard
Rate 2.3 lbs/in
SKU 80373SCS
Sugg Max Deflection 1.2 in
Sugg Max Load 3 lbf
Wind Direction Left
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80373S
Ends Full Loop
Finish None
Initial Tension 0.14 kg
Length 28.7 mm
Material 302/304 Stainless Steel
Outside Diameter 7.62 mm
Part Type Standard
Rate 0.4 N/mm
SKU 80373SCS
Sugg Max Deflection 30.48 mm
Sugg Max Load 13.34 N
Wind Direction Left
Wire Diameter 0.76 mm
