Century Spring

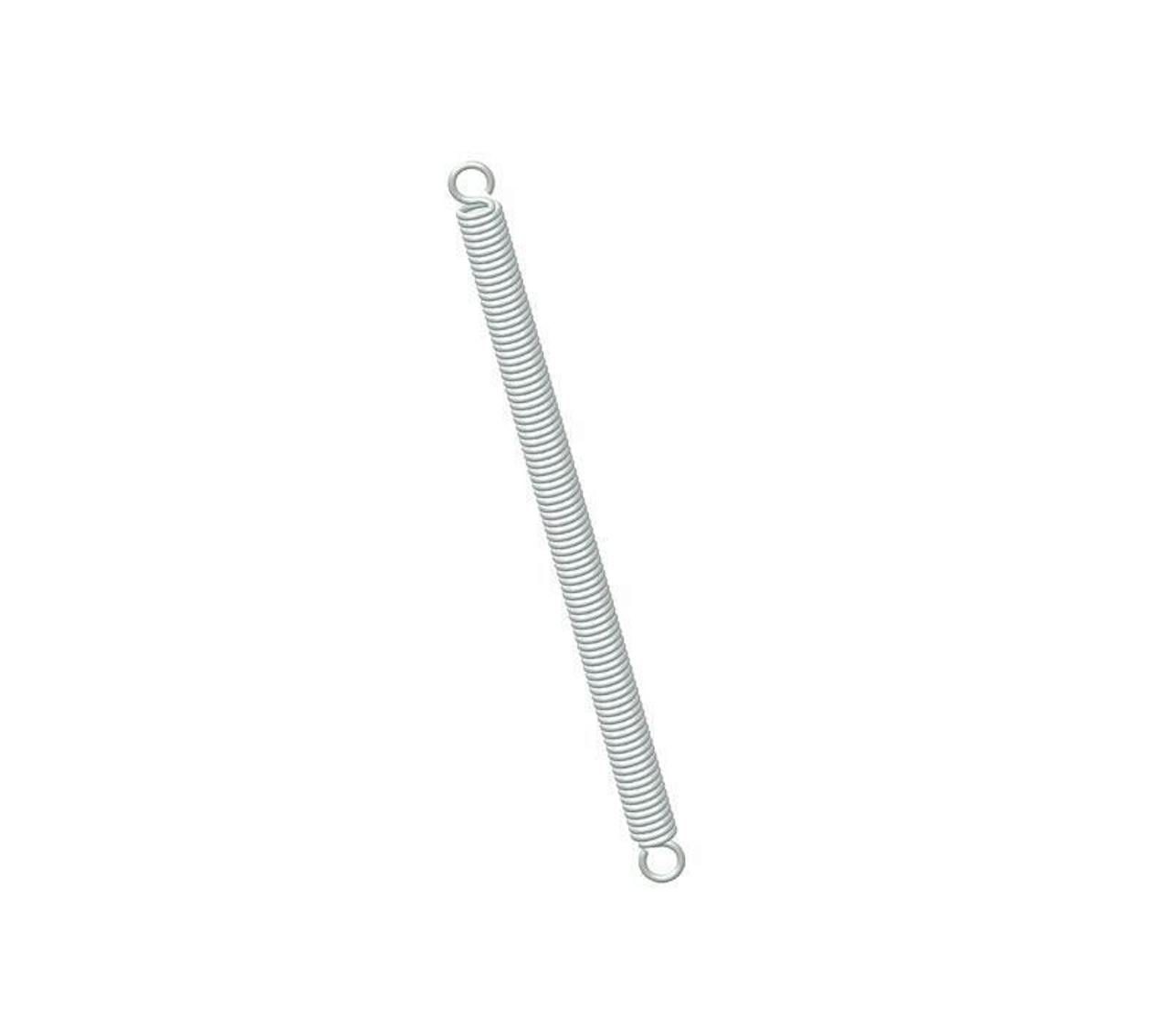

80369SCS - 4 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.24 Inch and an initial tension of 0.9 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80369S
Ends Full Loop
Finish None
Initial Tension 0.9 lb
Length 4 in
Material 302/304 Stainless Steel
Outside Diameter 0.24 in
Part Type Standard
Rate 5 lbs/in
SKU 80369SCS
Sugg Max Deflection 1.5 in
Sugg Max Load 8.6 lbf
Wind Direction Left
Wire Diameter 0.042 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80369S
Ends Full Loop
Finish None
Initial Tension 0.41 kg
Length 101.6 mm
Material 302/304 Stainless Steel
Outside Diameter 6.1 mm
Part Type Standard
Rate 0.88 N/mm
SKU 80369SCS
Sugg Max Deflection 38.1 mm
Sugg Max Load 38.25 N
Wind Direction Left
Wire Diameter 1.07 mm
