Century Spring

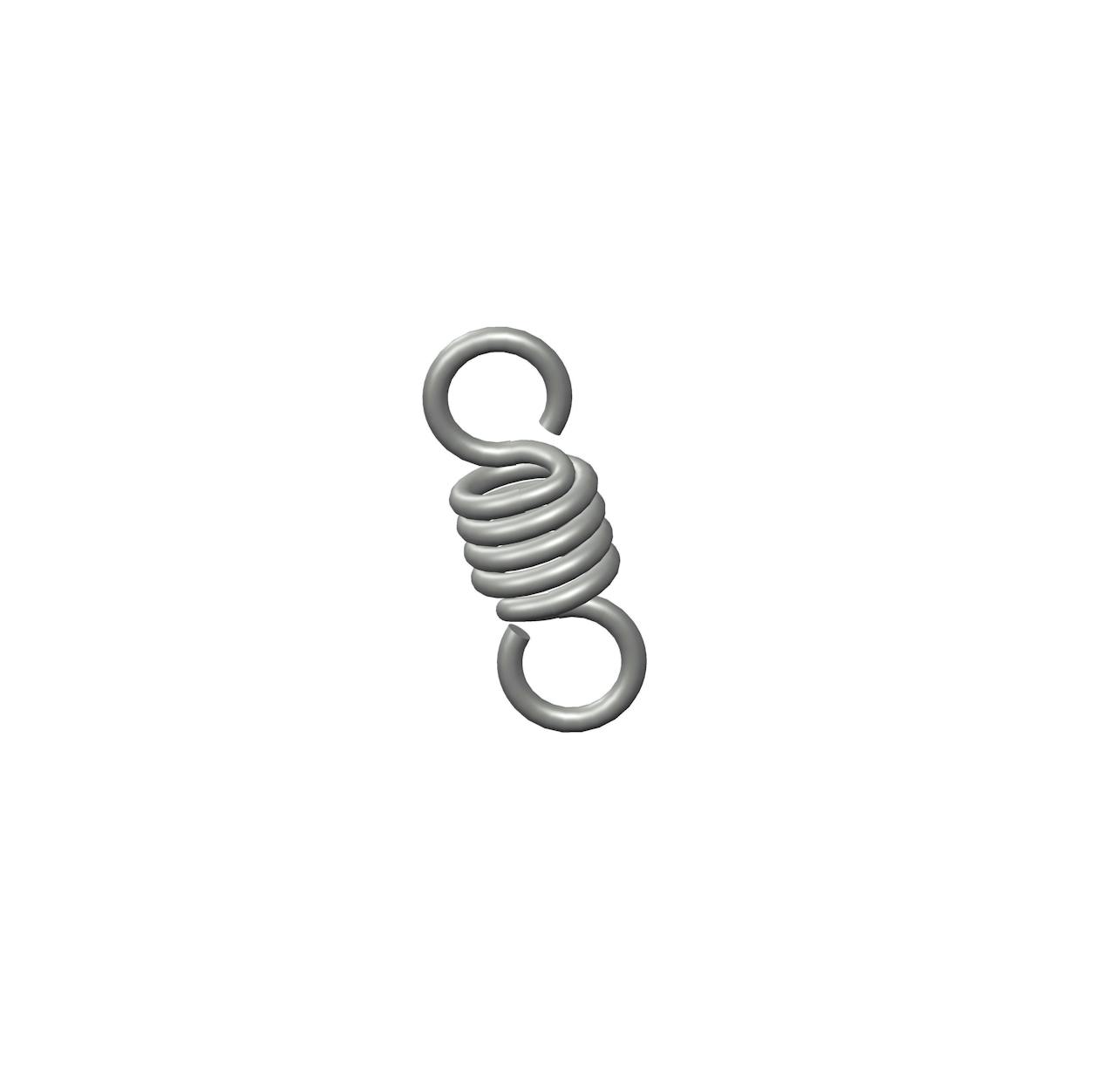

80354CS - 0.63 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.24 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80354
Ends Full Loop
Finish None
Initial Tension 2 lb
Length 0.63 in
Material Music Wire
Outside Diameter 0.24 in
Part Type Standard
Rate 79 lbs/in
SKU 80354CS
Sugg Max Deflection 0.15 in
Sugg Max Load 13 lbf
Wind Direction Left
Wire Diameter 0.042 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80354
Ends Full Loop
Finish None
Initial Tension 0.91 kg
Length 16 mm
Material Music Wire
Outside Diameter 6.1 mm
Part Type Standard
Rate 13.83 N/mm
SKU 80354CS
Sugg Max Deflection 3.81 mm
Sugg Max Load 57.82 N
Wind Direction Left
Wire Diameter 1.07 mm
