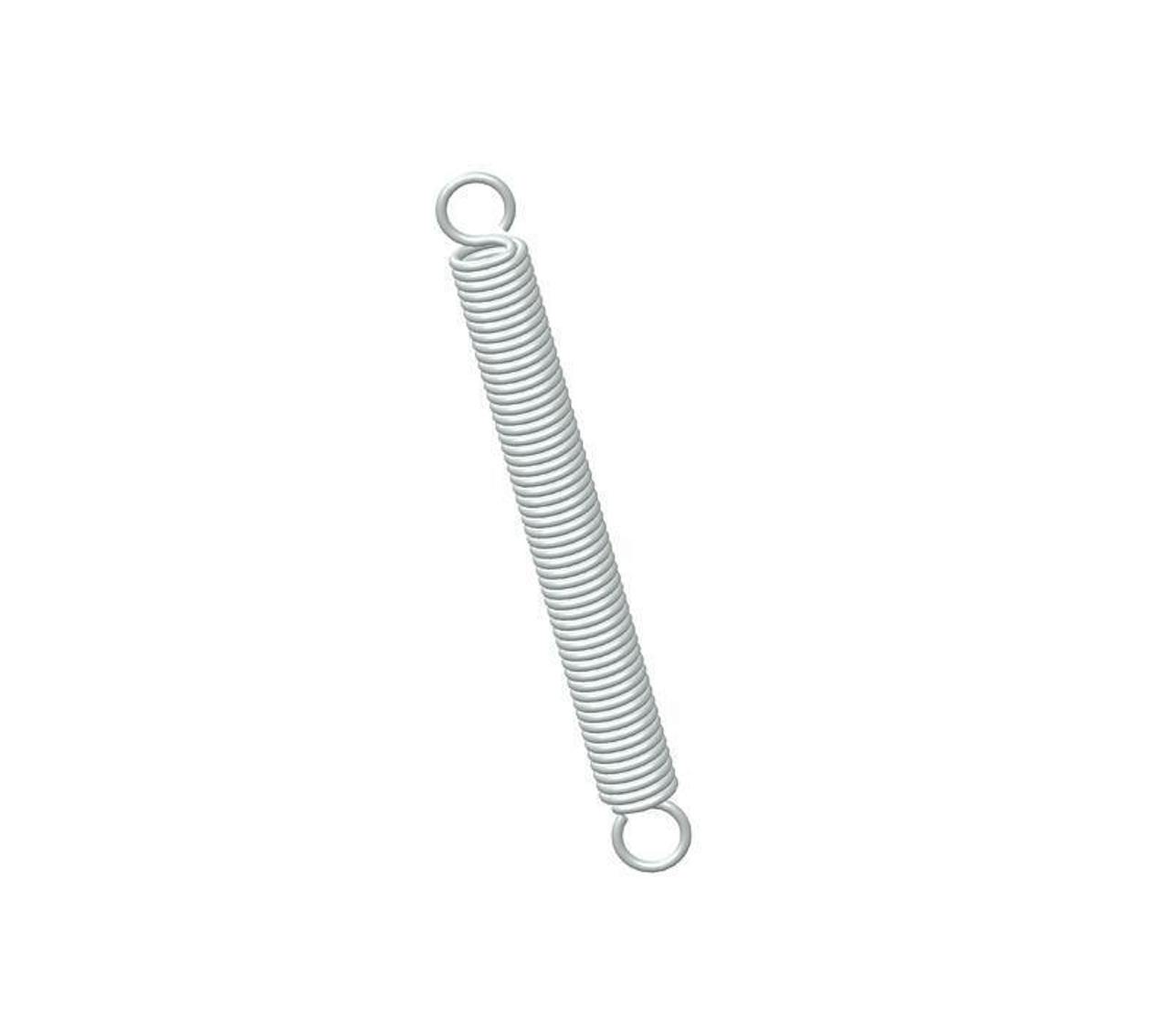

80327SCS - 2.25 Inch 302/304 Stainless Steel Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.24 Inch and an initial tension of 0.6 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80327S |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 0.6 lb |
| Length | 2.25 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.24 in |
| Part Type | Standard |
| Rate | 3.3 lbs/in |
| SKU | 80327SCS |
| Sugg Max Deflection | 1.5 in |
| Sugg Max Load | 5.4 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.034 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80327S |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 0.27 kg |
| Length | 57.15 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 6.1 mm |
| Part Type | Standard |
| Rate | 0.58 N/mm |
| SKU | 80327SCS |
| Sugg Max Deflection | 38.1 mm |
| Sugg Max Load | 24.02 N |
| Wind Direction | Left |
| Wire Diameter | 0.86 mm |
