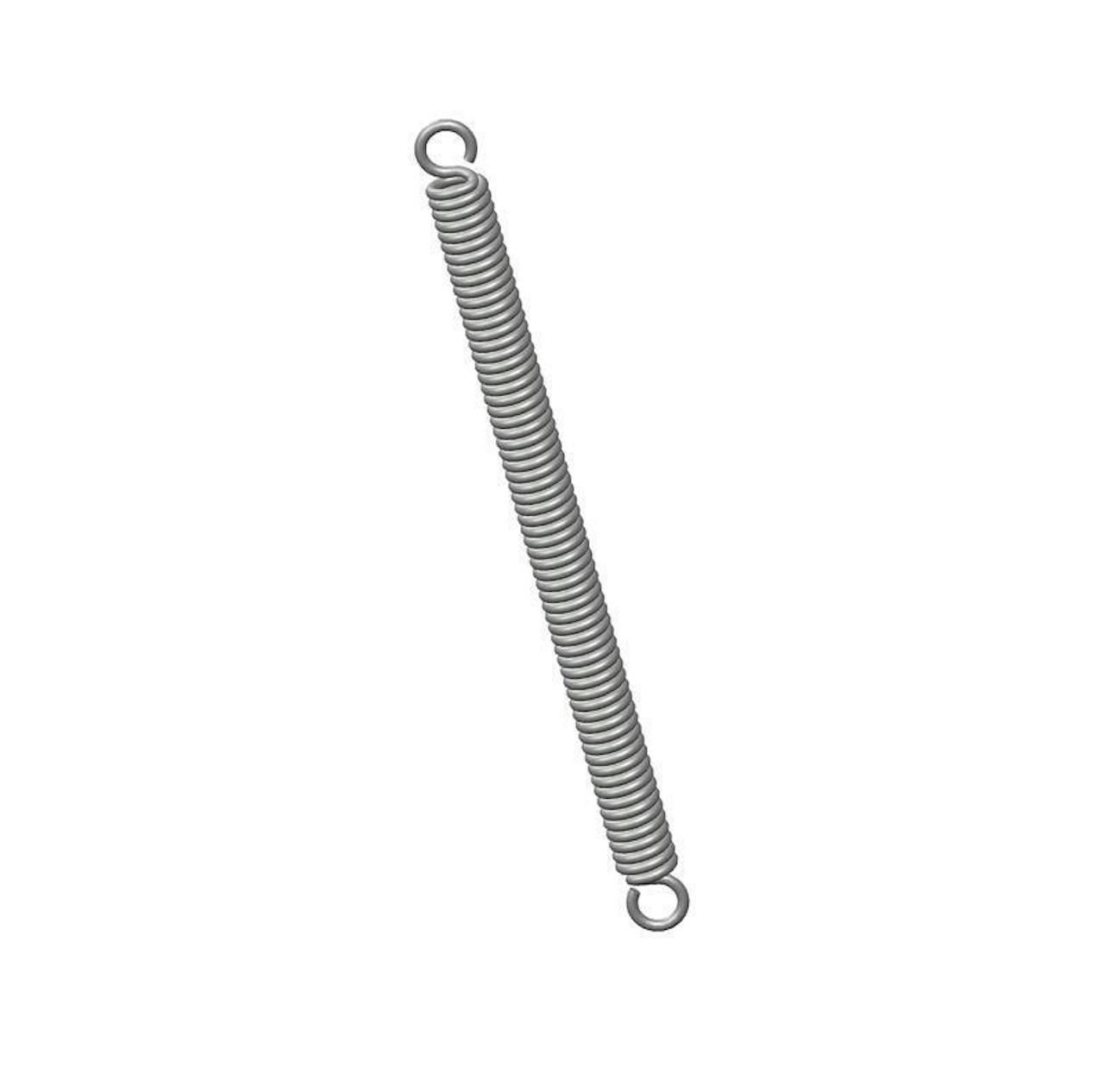

80234CS - 2.5 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.18 Inch and an initial tension of 0.8 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80234
Ends Full Loop
Finish None
Initial Tension 0.8 lb
Length 2.5 in
Material Music Wire
Outside Diameter 0.18 in
Part Type Standard
Rate 9 lbs/in
SKU 80234CS
Sugg Max Deflection 1 in
Sugg Max Load 9.9 lbf
Wire Diameter 0.034 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80234
Ends Full Loop
Finish None
Initial Tension 0.36 kg
Length 63.5 mm
Material Music Wire
Outside Diameter 4.57 mm
Part Type Standard
Rate 1.58 N/mm
SKU 80234CS
Sugg Max Deflection 25.4 mm
Sugg Max Load 44.04 N
Wire Diameter 0.86 mm
