Century Spring

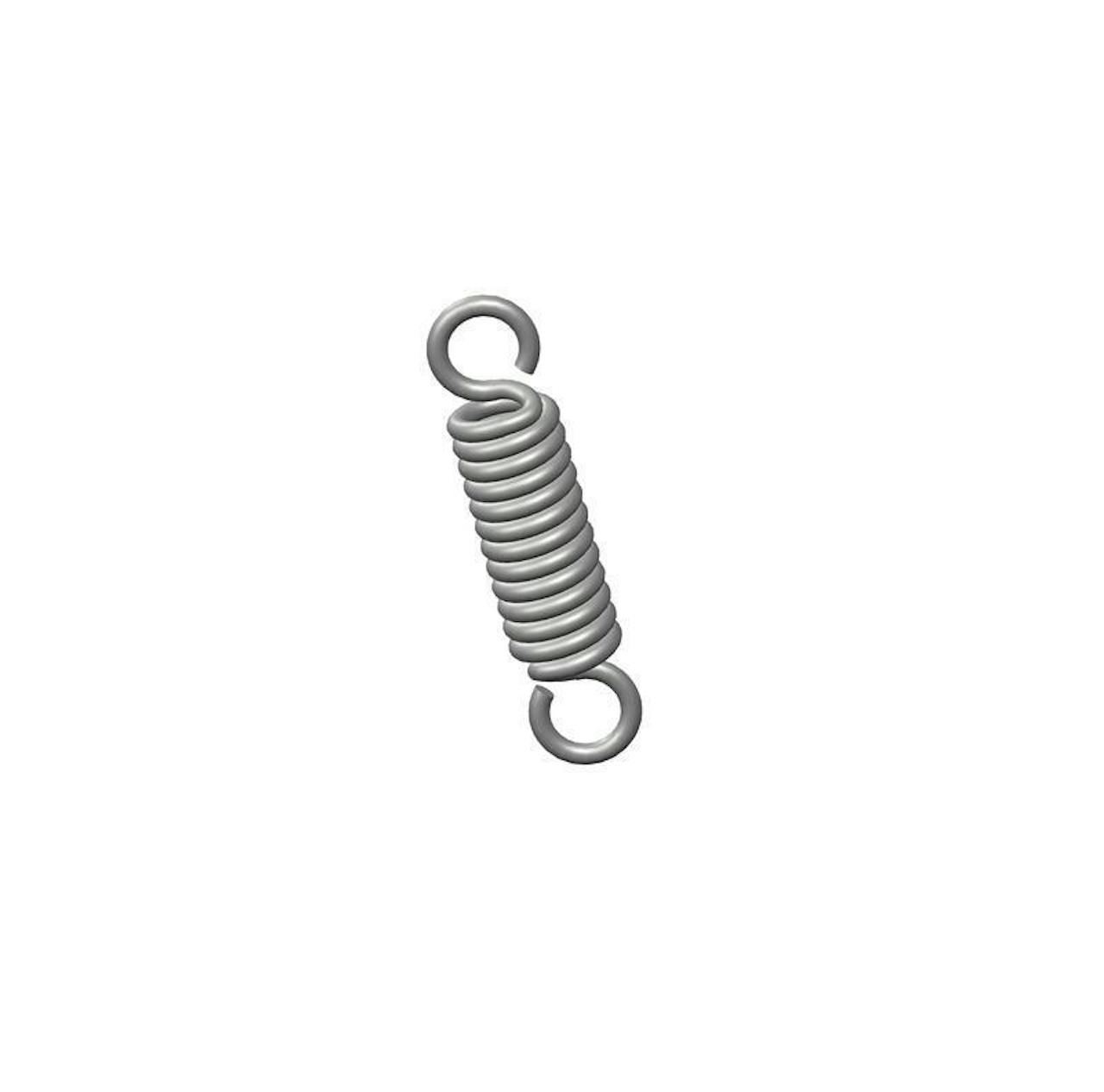

80224CS - 0.75 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.18 Inch and an initial tension of 0.8 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80224
Ends Full Loop
Finish None
Initial Tension 0.8 lb
Length 0.75 in
Material Music Wire
Outside Diameter 0.18 in
Part Type Standard
Rate 42 lbs/in
SKU 80224CS
Sugg Max Deflection 0.21 in
Sugg Max Load 9.9 lbf
Wind Direction Left
Wire Diameter 0.034 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80224
Ends Full Loop
Finish None
Initial Tension 0.36 kg
Length 19.05 mm
Material Music Wire
Outside Diameter 4.57 mm
Part Type Standard
Rate 7.35 N/mm
SKU 80224CS
Sugg Max Deflection 5.33 mm
Sugg Max Load 44.04 N
Wind Direction Left
Wire Diameter 0.86 mm
