Century Spring

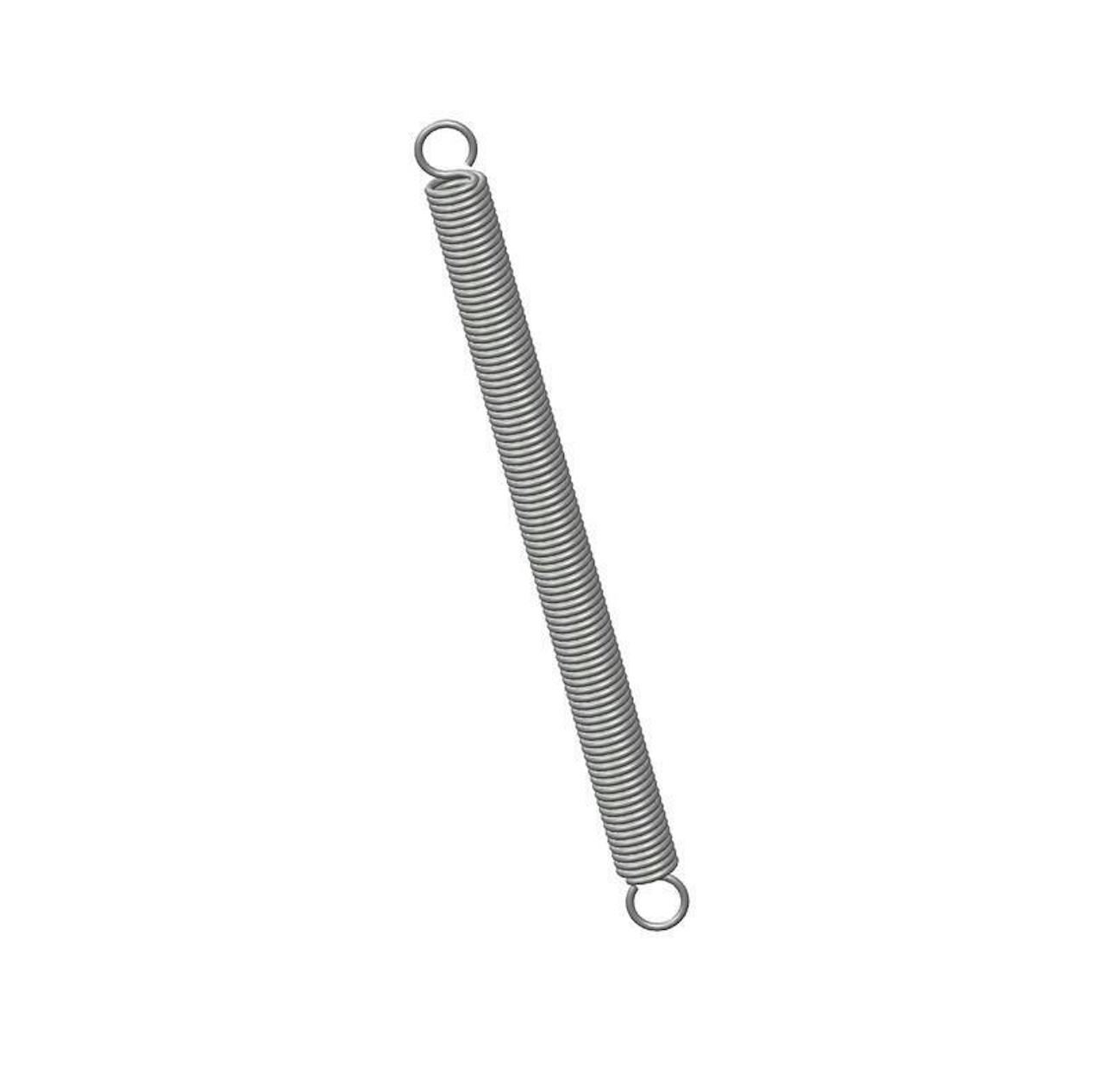

80183CS - 2.5 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.18 Inch and an initial tension of 0.4 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80183
Ends Full Loop
Finish None
Initial Tension 0.4 lb
Length 2.5 in
Material Music Wire
Outside Diameter 0.18 in
Part Type Standard
Rate 1.3 lbs/in
SKU 80183CS
Sugg Max Deflection 2.7 in
Sugg Max Load 3.9 lbf
Wind Direction Left
Wire Diameter 0.024 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80183
Ends Full Loop
Finish None
Initial Tension 0.18 kg
Length 63.5 mm
Material Music Wire
Outside Diameter 4.57 mm
Part Type Standard
Rate 0.23 N/mm
SKU 80183CS
Sugg Max Deflection 68.58 mm
Sugg Max Load 17.35 N
Wind Direction Left
Wire Diameter 0.61 mm
