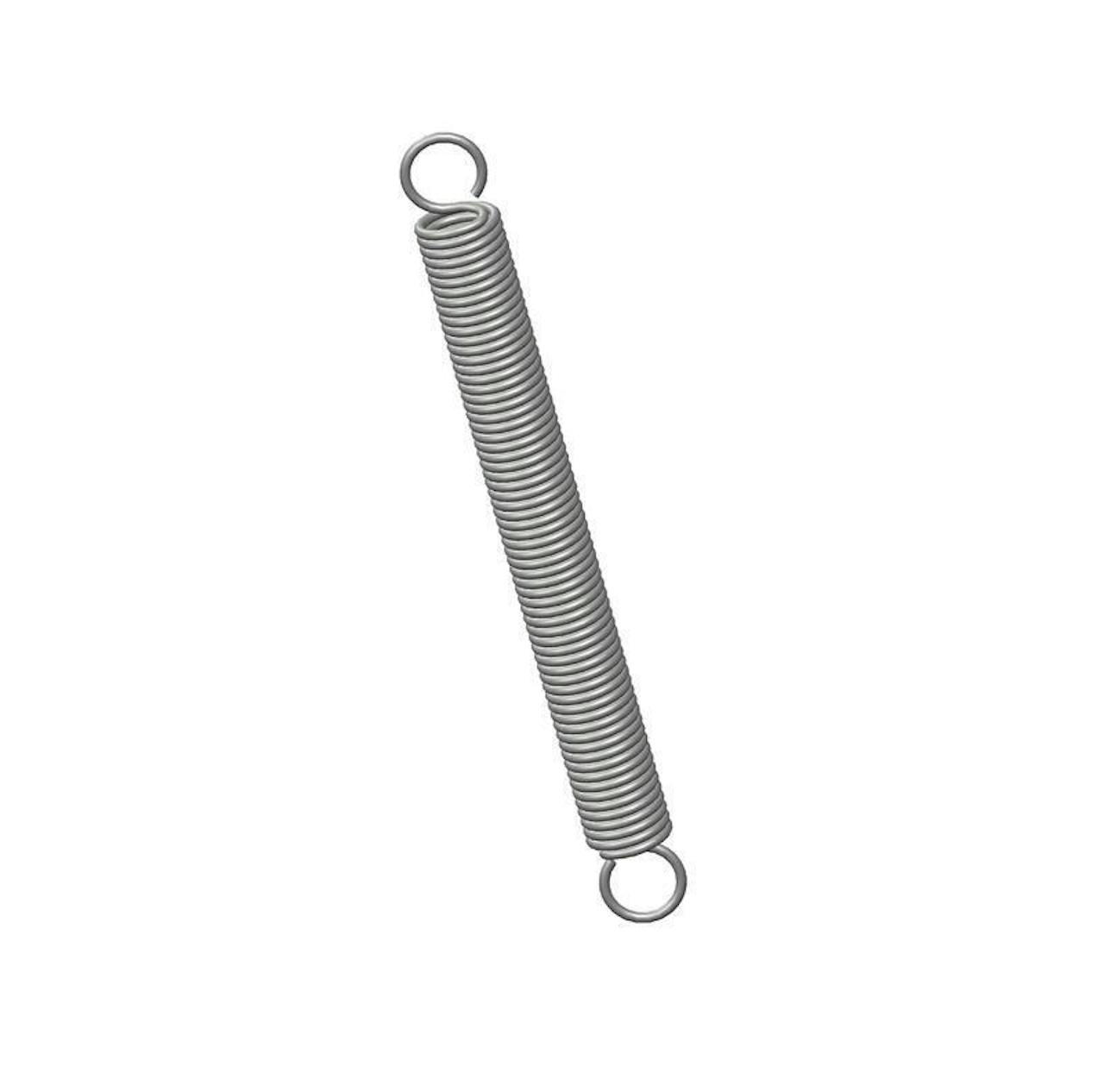

80168CS - 1.75 Inch Music Wire Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in Music Wire. This spring features an O.D. of 0.18 Inch and an initial tension of 0.3 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80168 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 0.3 lb |
| Length | 1.75 in |
| Material | Music Wire |
| Outside Diameter | 0.18 in |
| Part Type | Standard |
| Rate | 1.3 lbs/in |
| SKU | 80168CS |
| Sugg Max Deflection | 2.2 in |
| Sugg Max Load | 3 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.022 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80168 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 0.14 kg |
| Length | 44.45 mm |
| Material | Music Wire |
| Outside Diameter | 4.57 mm |
| Part Type | Standard |
| Rate | 0.23 N/mm |
| SKU | 80168CS |
| Sugg Max Deflection | 55.88 mm |
| Sugg Max Load | 13.34 N |
| Wind Direction | Left |
| Wire Diameter | 0.56 mm |
