Century Spring

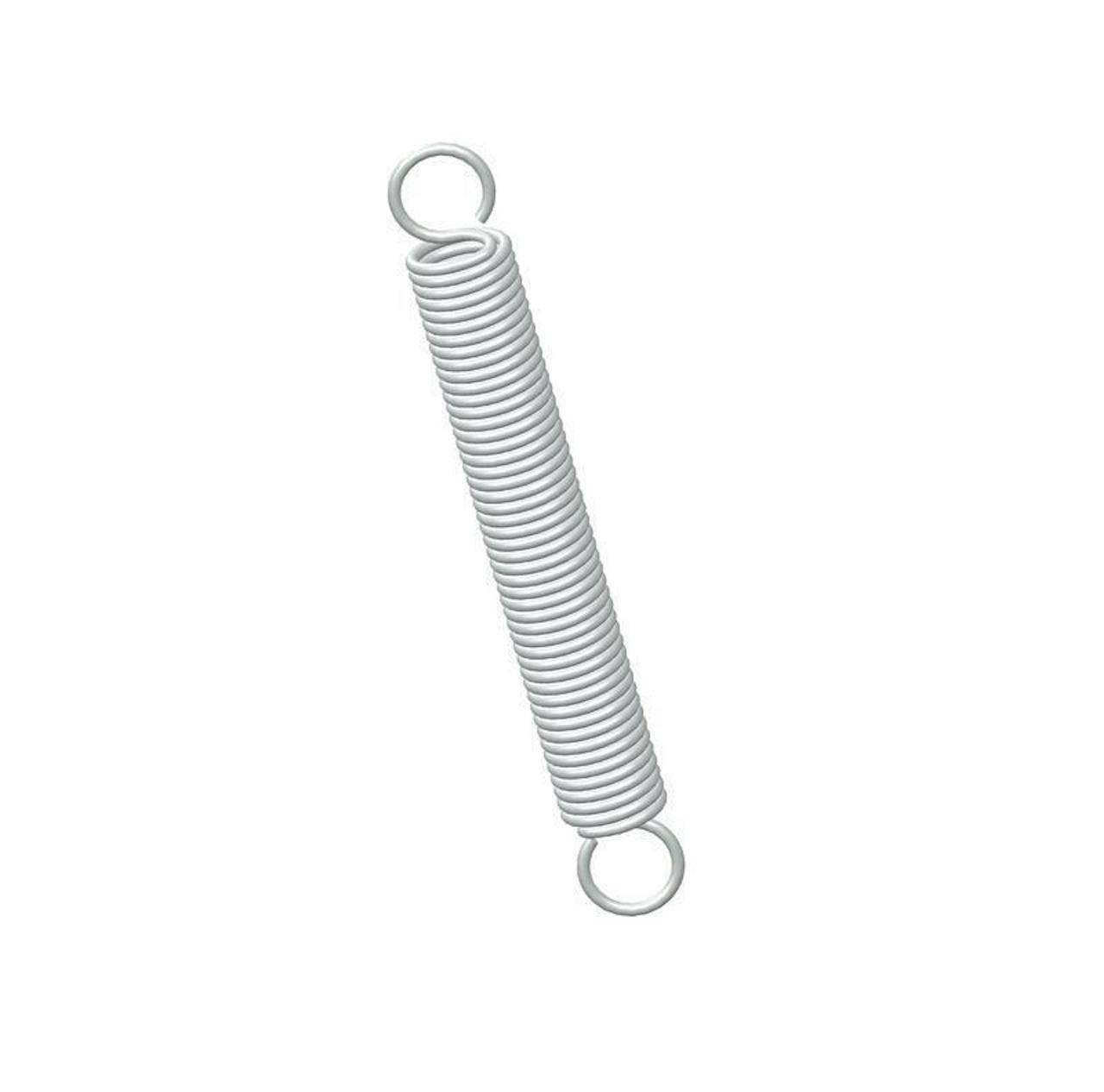

80166SCS - 1.38 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.18 Inch and an initial tension of 0.4 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80166S
Ends Full Loop
Finish None
Initial Tension 0.4 lb
Length 1.38 in
Material 302/304 Stainless Steel
Outside Diameter 0.18 in
Part Type Standard
Rate 1.4 lbs/in
SKU 80166SCS
Sugg Max Deflection 1.3 in
Sugg Max Load 2 lbf
Wind Direction Left
Wire Diameter 0.022 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80166S
Ends Full Loop
Finish None
Initial Tension 0.18 kg
Length 35.05 mm
Material 302/304 Stainless Steel
Outside Diameter 4.57 mm
Part Type Standard
Rate 0.25 N/mm
SKU 80166SCS
Sugg Max Deflection 33.02 mm
Sugg Max Load 8.9 N
Wind Direction Left
Wire Diameter 0.56 mm
