Century Spring

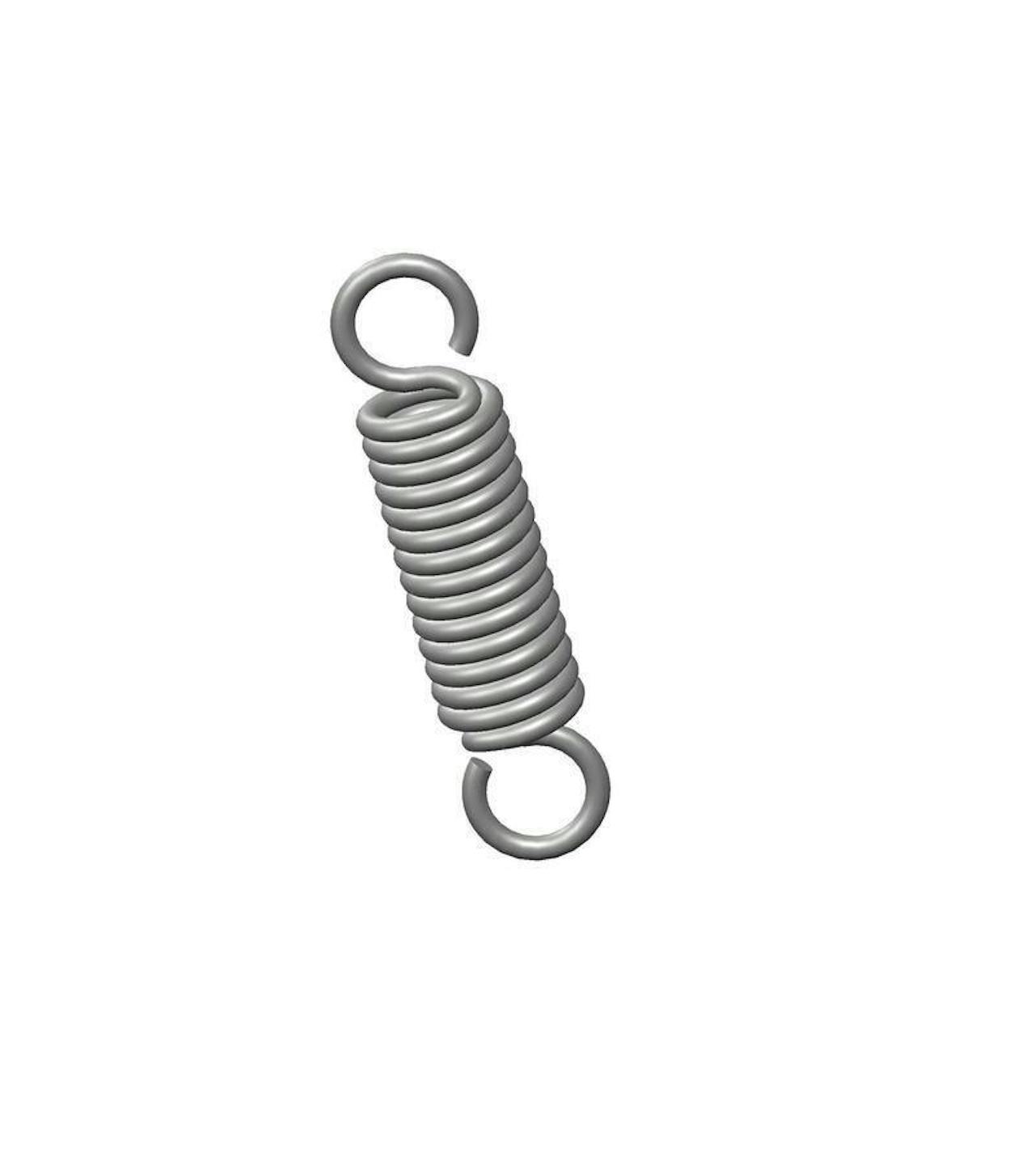

80103CS - 0.5 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.12 Inch and an initial tension of 0.62 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80103
Ends Full Loop
Finish None
Initial Tension 0.62 lb
Length 0.5 in
Material Music Wire
Outside Diameter 0.12 in
Part Type Standard
Rate 14 lbs/in
SKU 80103CS
Sugg Max Deflection 0.21 in
Sugg Max Load 3.4 lbf
Wind Direction Left
Wire Diameter 0.02 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80103
Ends Full Loop
Finish None
Initial Tension 0.28 kg
Length 12.7 mm
Material Music Wire
Outside Diameter 3.05 mm
Part Type Standard
Rate 2.45 N/mm
SKU 80103CS
Sugg Max Deflection 5.33 mm
Sugg Max Load 15.12 N
Wind Direction Left
Wire Diameter 0.51 mm
