Century Spring

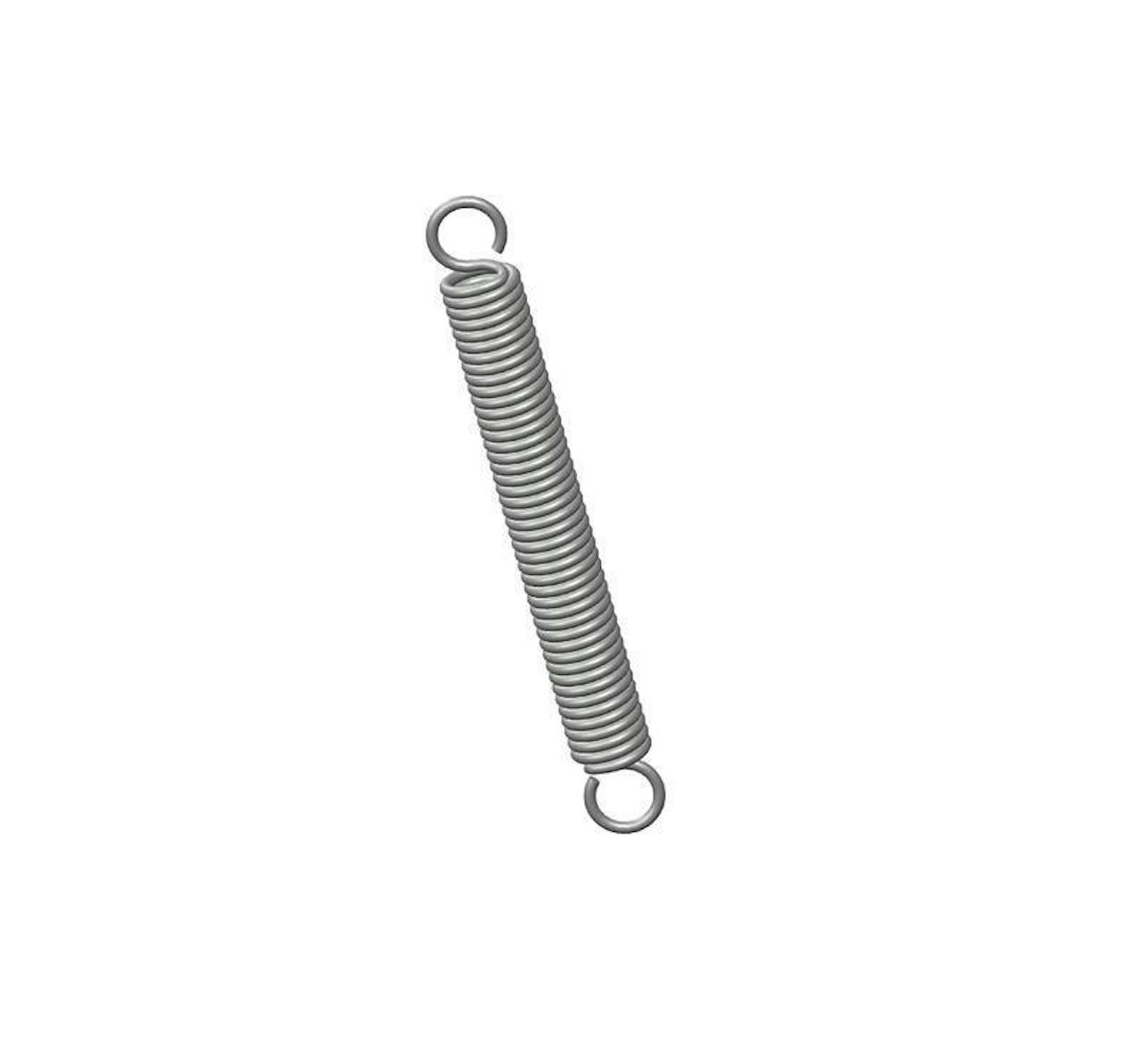

80095CS - 1 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.12 Inch and an initial tension of 0.3 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80095
Ends Full Loop
Finish None
Initial Tension 0.3 lb
Length 1 in
Material Music Wire
Outside Diameter 0.12 in
Part Type Standard
Rate 3.1 lbs/in
SKU 80095CS
Sugg Max Deflection 0.71 in
Sugg Max Load 2.5 lbf
Wind Direction Left
Wire Diameter 0.018 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80095
Ends Full Loop
Finish None
Initial Tension 0.14 kg
Length 25.4 mm
Material Music Wire
Outside Diameter 3.05 mm
Part Type Standard
Rate 0.54 N/mm
SKU 80095CS
Sugg Max Deflection 18.03 mm
Sugg Max Load 11.12 N
Wind Direction Left
Wire Diameter 0.46 mm
