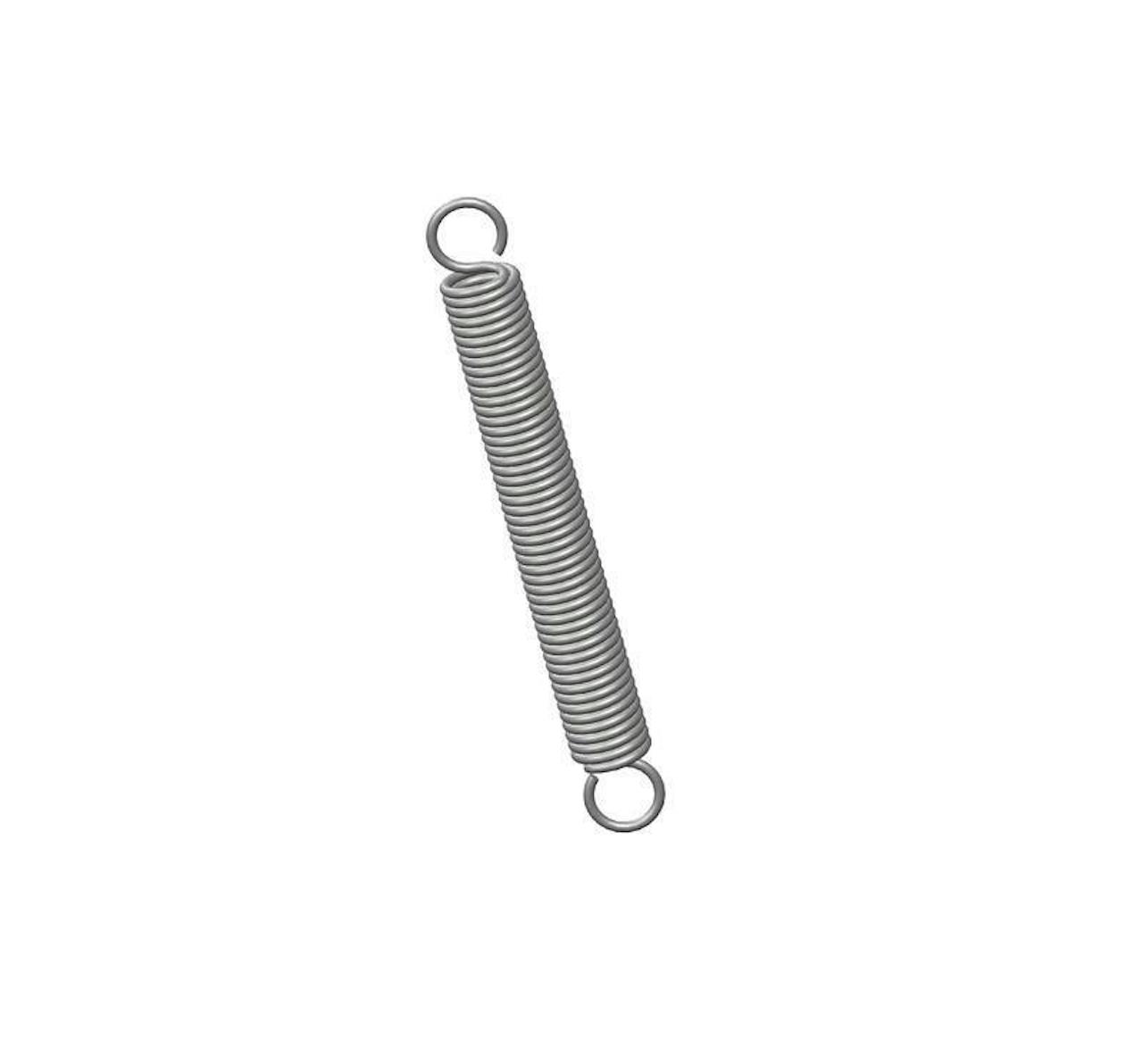

80083CS - 1 Inch Music Wire Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in Music Wire. This spring features an O.D. of 0.12 Inch and an initial tension of 0.26 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80083 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 0.26 lb |
| Length | 1 in |
| Material | Music Wire |
| Outside Diameter | 0.12 in |
| Part Type | Standard |
| Rate | 1.6 lbs/in |
| SKU | 80083CS |
| Sugg Max Deflection | 1 in |
| Sugg Max Load | 1.8 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.016 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80083 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 0.12 kg |
| Length | 25.4 mm |
| Material | Music Wire |
| Outside Diameter | 3.05 mm |
| Part Type | Standard |
| Rate | 0.28 N/mm |
| SKU | 80083CS |
| Sugg Max Deflection | 25.4 mm |
| Sugg Max Load | 8.01 N |
| Wind Direction | Left |
| Wire Diameter | 0.41 mm |
