Century Spring

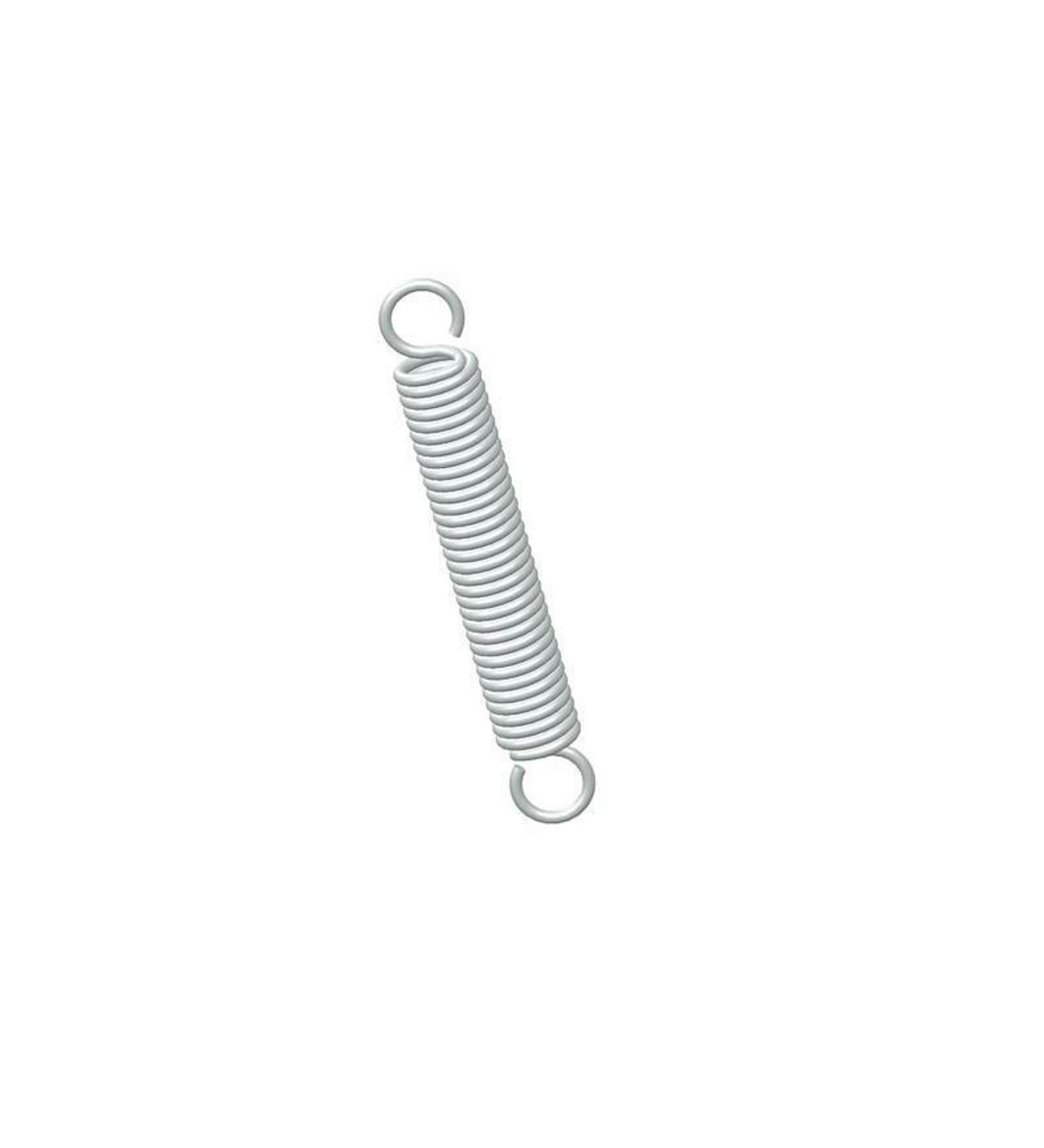

80057SCS - 0.63 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.094 Inch and an initial tension of 0.1 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80057S
Ends Full Loop
Finish None
Initial Tension 0.1 lb
Length 0.63 in
Material 302/304 Stainless Steel
Outside Diameter 0.094 in
Part Type Standard
Rate 2.9 lbs/in
SKU 80057SCS
Sugg Max Deflection 0.32 in
Sugg Max Load 1.1 lbf
Wind Direction Left
Wire Diameter 0.014 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80057S
Ends Full Loop
Finish None
Initial Tension 0.05 kg
Length 16 mm
Material 302/304 Stainless Steel
Outside Diameter 2.39 mm
Part Type Standard
Rate 0.51 N/mm
SKU 80057SCS
Sugg Max Deflection 8.13 mm
Sugg Max Load 4.89 N
Wind Direction Left
Wire Diameter 0.36 mm
