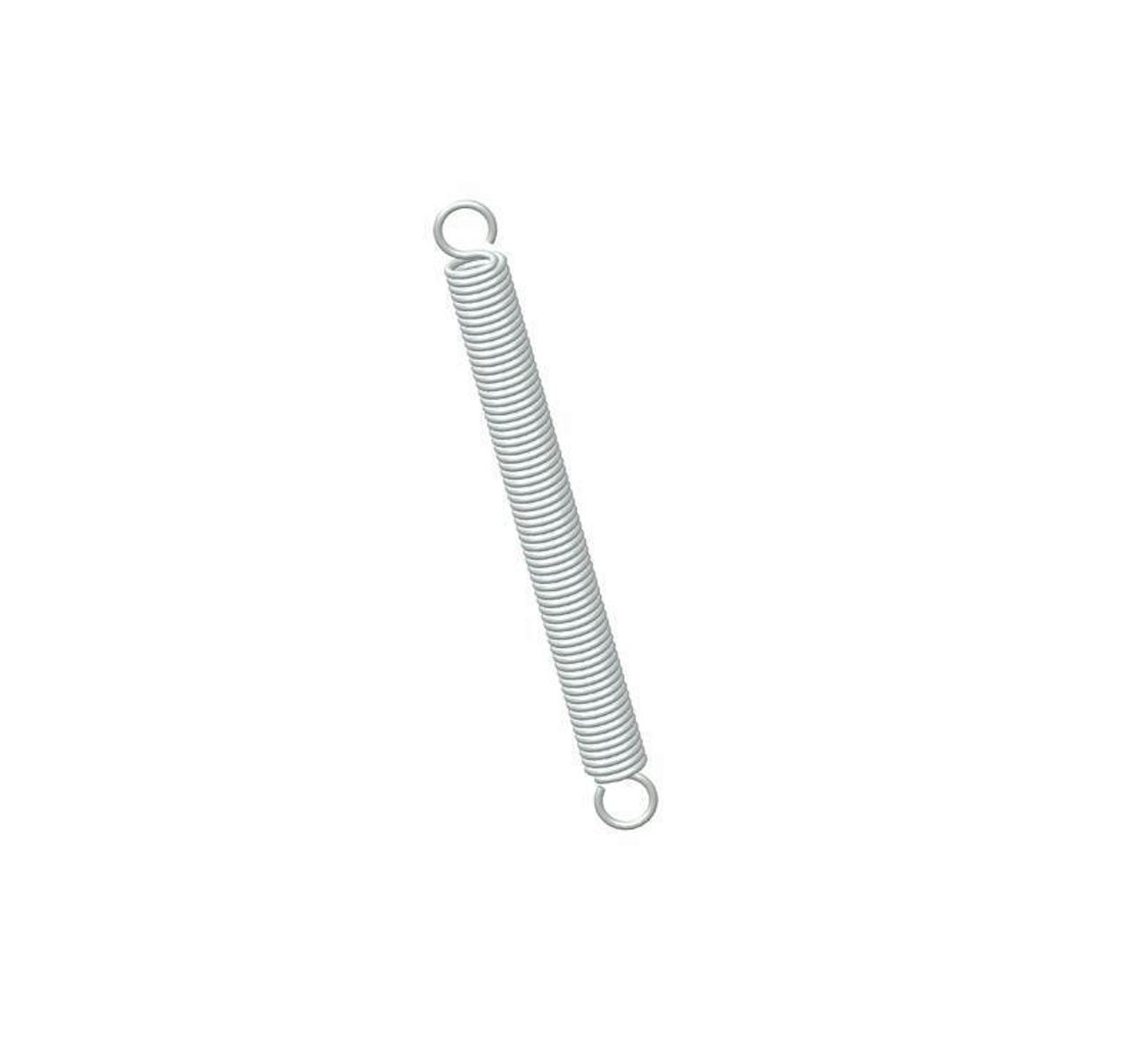

80053SCS - 1 Inch 302/304 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.094 Inch and an initial tension of 0.1 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80053S
Ends Full Loop
Finish None
Initial Tension 0.1 lb
Length 1 in
Material 302/304 Stainless Steel
Outside Diameter 0.094 in
Part Type Standard
Rate 1 lbs/in
SKU 80053SCS
Sugg Max Deflection 0.72 in
Sugg Max Load 0.86 lbf
Wire Diameter 0.013 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80053S
Ends Full Loop
Finish None
Initial Tension 0.05 kg
Length 25.4 mm
Material 302/304 Stainless Steel
Outside Diameter 2.39 mm
Part Type Standard
Rate 0.18 N/mm
SKU 80053SCS
Sugg Max Deflection 18.29 mm
Sugg Max Load 3.83 N
Wire Diameter 0.33 mm
