Century Spring

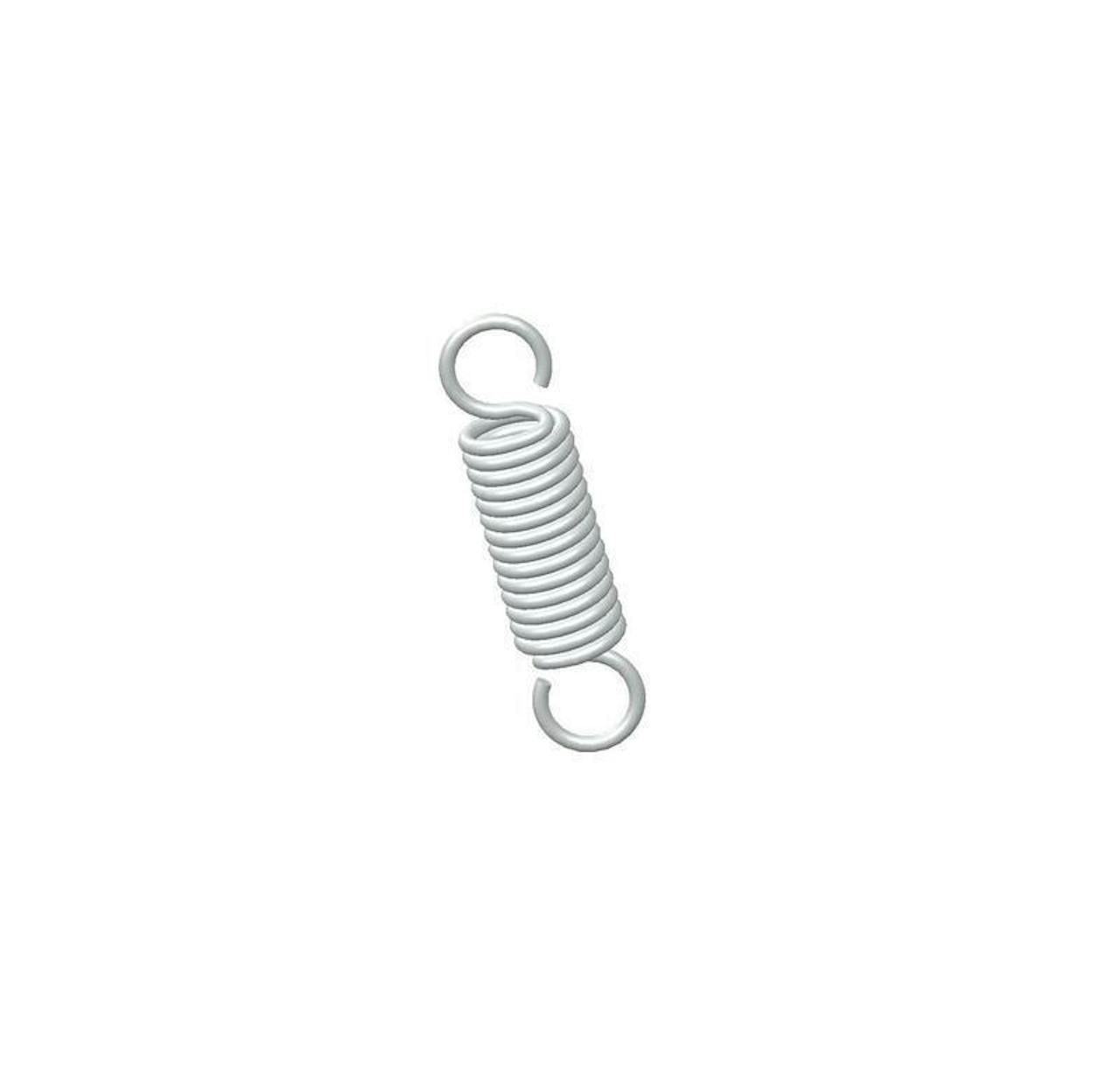

80012SCS - 0.25 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.063 Inch and an initial tension of 0.05 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80012S
Ends Full Loop
Finish None
Initial Tension 0.05 lb
Length 0.25 in
Material 302/304 Stainless Steel
Outside Diameter 0.063 in
Part Type Standard
Rate 3.1 lbs/in
SKU 80012SCS
Sugg Max Deflection 0.12 in
Sugg Max Load 0.42 lbf
Wind Direction Left
Wire Diameter 0.009 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80012S
Ends Full Loop
Finish None
Initial Tension 0.02 kg
Length 6.35 mm
Material 302/304 Stainless Steel
Outside Diameter 1.6 mm
Part Type Standard
Rate 0.54 N/mm
SKU 80012SCS
Sugg Max Deflection 3.05 mm
Sugg Max Load 1.87 N
Wind Direction Left
Wire Diameter 0.23 mm
