77071CS - 5.118" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

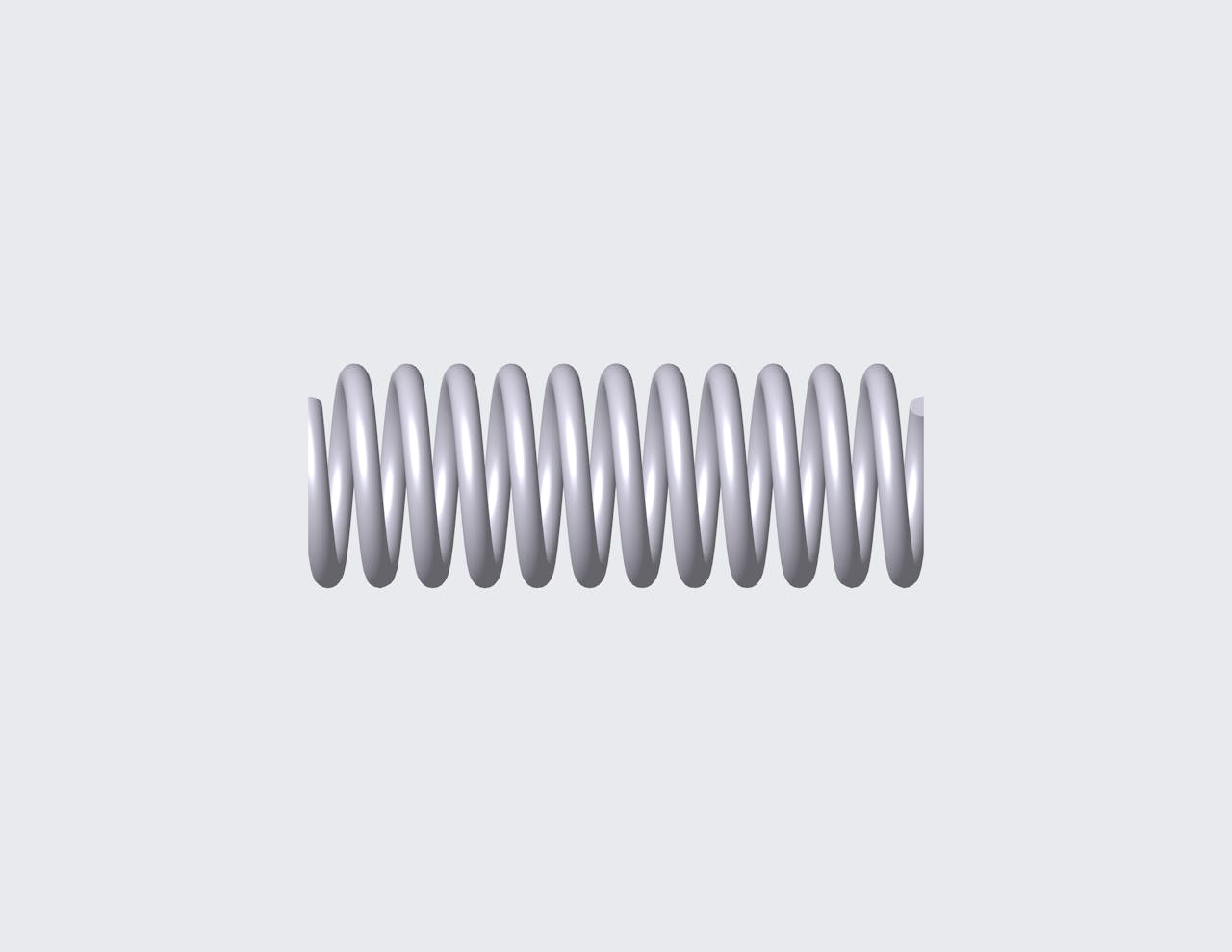

Compression spring manufactured from music wire with 11.21 coils and closed & ground ends. This spring features an O.D. of 1.873", and an I.D. of 1.403".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 77071
Ends Closed & Ground
Finish None
Free Length 5.118 in
Inside Diameter 1.403 in
Material Music Wire
Outside Diameter 1.873 in
Part Type Metric
Rate 108.426 lbs/in
SKU 77071CS
Solid Length 2.635 in
Suggested Max Deflection 2.501 in
Suggested Max Load 271.168 lbf
Total Coils 11.21
Wire Diameter 0.235 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 77071
Ends Closed & Ground
Finish None
Free Length 130 mm
Inside Diameter 35.64 mm
Material Music Wire
Outside Diameter 47.57 mm
Part Type Metric
Rate 18.99 N/mm
SKU 77071CS
Solid Length 66.93 mm
Suggested Max Deflection 63.53 mm
Suggested Max Load 1206.16 N
Total Coils 11.21
Wire Diameter 5.97 mm
The 77071CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.235" diameter music wire, the 77071 spring design exhibits reliable strength across its 11.21 active coils, withstanding repeated compression cycles with a maximum load of 271.168 lbf without succumbing to fatigue.

We manufacture the 77071 design to provide a compression spring that is 5.118" long at rest and provides a consistent rate of 108.426 lbs/in along its recommended maximum of 2.501" deflection. For best results, your application should fully accommodate the inner (1.403") and outer (1.873") diameters of this spring and be designed for its closed & ground end configuration.
