76956CS - 8.858" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

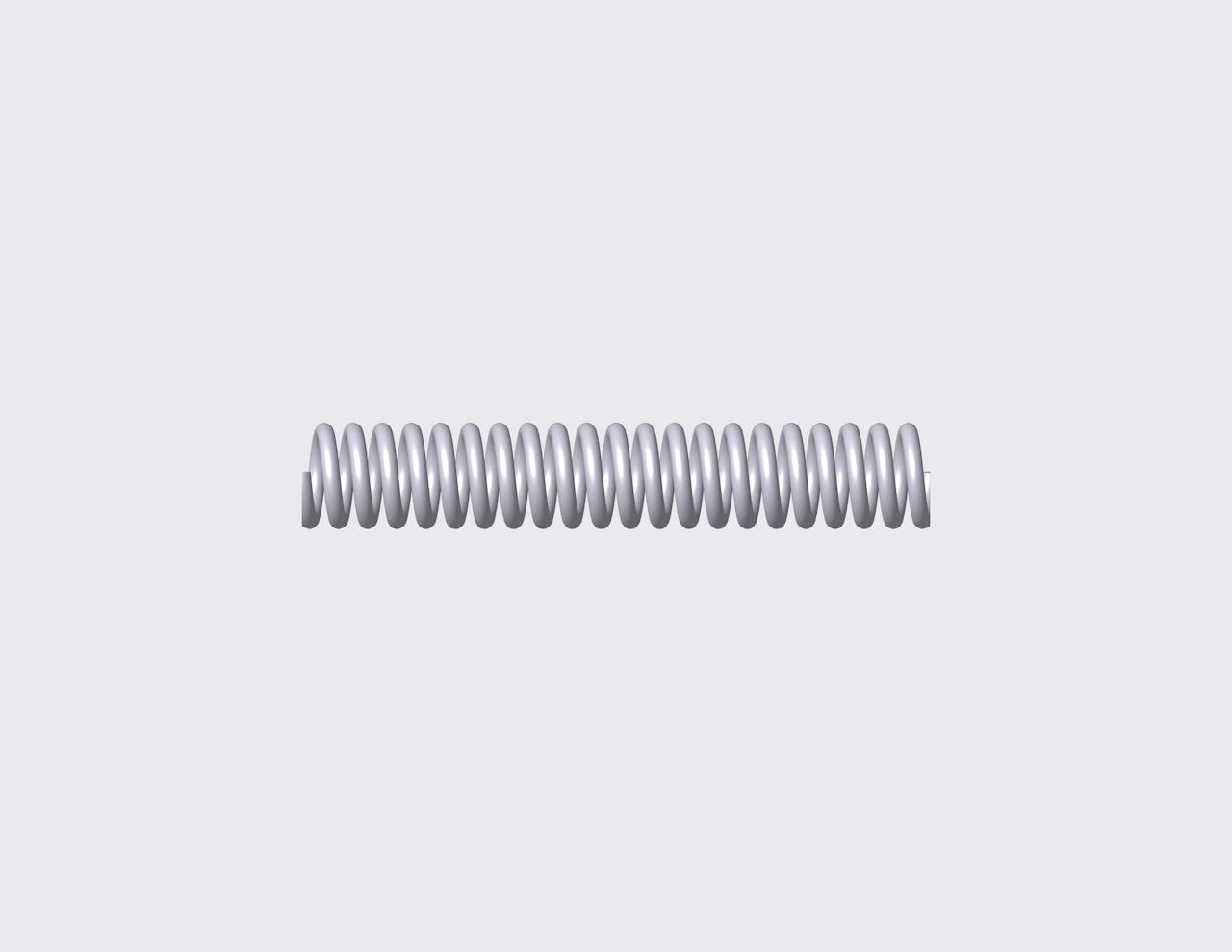

Compression spring manufactured from music wire with 20.92 coils and closed & ground ends. This spring features an O.D. of 1.51", and an I.D. of 1.01".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 76956
Ends Closed & Ground
Finish None
Free Length 8.858 in
Inside Diameter 1.01 in
Material Music Wire
Outside Diameter 1.51 in
Part Type Metric
Rate 148.422 lbs/in
SKU 76956CS
Solid Length 5.23 in
Suggested Max Deflection 2.653 in
Suggested Max Load 393.786 lbf
Total Coils 20.92
Wire Diameter 0.25 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 76956
Ends Closed & Ground
Finish None
Free Length 224.99 mm
Inside Diameter 25.65 mm
Material Music Wire
Outside Diameter 38.35 mm
Part Type Metric
Rate 25.99 N/mm
SKU 76956CS
Solid Length 132.84 mm
Suggested Max Deflection 67.39 mm
Suggested Max Load 1751.56 N
Total Coils 20.92
Wire Diameter 6.35 mm
The 76956 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 76956CS compression spring is designed with a free length of 7.244" total of 20.22 coils, and a rate of 154.125 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 76956 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
