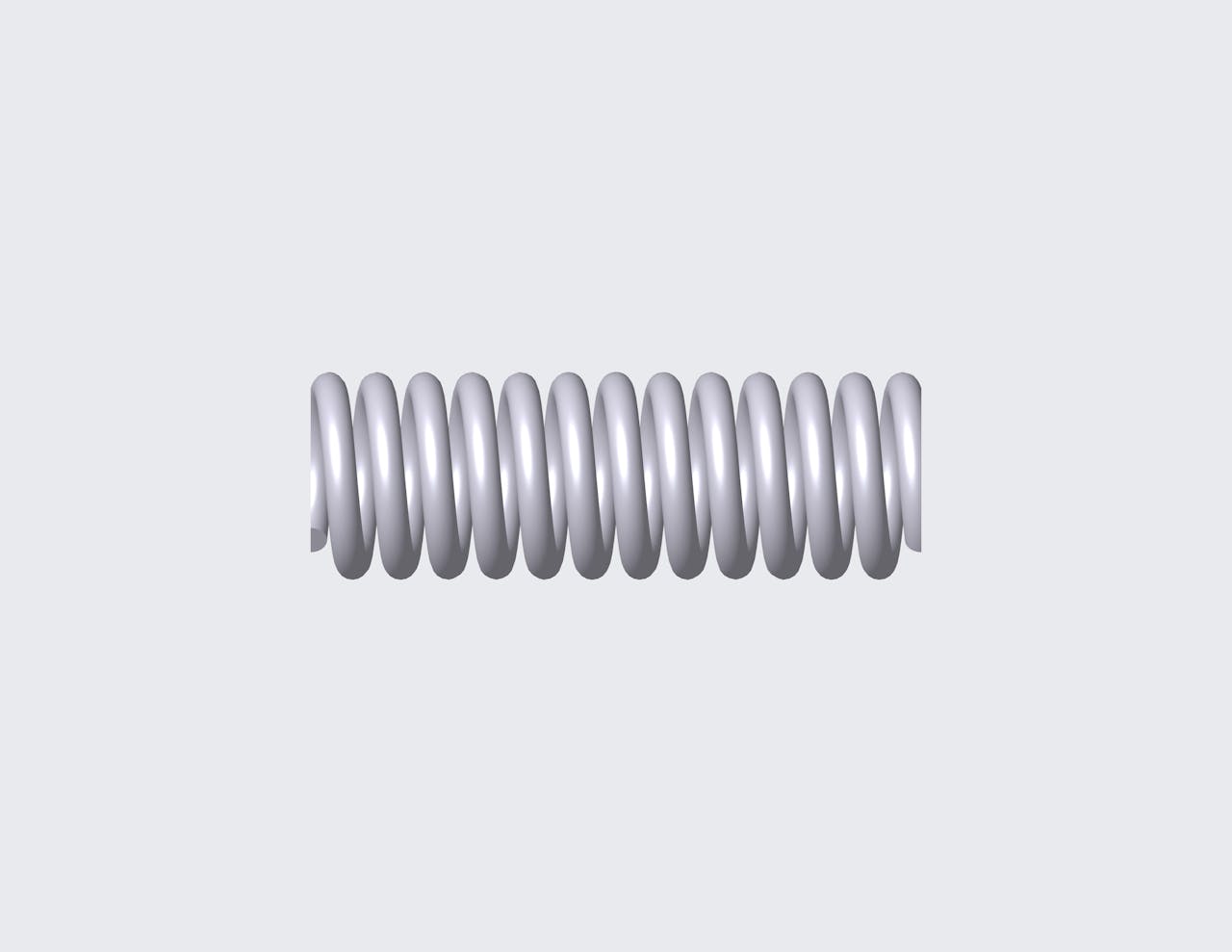

76934CS - 4.331" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 12.07 coils and closed & ground ends. This spring features an O.D. of 1.475", and an I.D. of 1.005".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 76934 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 4.331 in |
| Inside Diameter | 1.005 in |
| Material | Music Wire |
| Outside Diameter | 1.475 in |
| Part Type | Metric |
| Rate | 228.408 lbs/in |
| SKU | 76934CS |
| Solid Length | 2.837 in |
| Suggested Max Deflection | 1.473 in |
| Suggested Max Load | 336.489 lbf |
| Total Coils | 12.07 |
| Wire Diameter | 0.235 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 76934 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 110.01 mm |
| Inside Diameter | 25.53 mm |
| Material | Music Wire |
| Outside Diameter | 37.47 mm |
| Part Type | Metric |
| Rate | 39.99 N/mm |
| SKU | 76934CS |
| Solid Length | 72.06 mm |
| Suggested Max Deflection | 37.41 mm |
| Suggested Max Load | 1496.7 N |
| Total Coils | 12.07 |
| Wire Diameter | 5.97 mm |
The compression spring 76934CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 76934 compression spring design exhibits exceptional tensile strength and resilience.
The 76934 design is manufactured with a free length of 4.331", with an outer diameter of 1.475", an inner diameter of 1.005", and a total of 12.07 coils, expertly designed to deliver consistent compression characteristics including a rate of 228.408 lbs/in.
The 76934CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 76934 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 76934 design is manufactured with a free length of 4.331", with an outer diameter of 1.475", an inner diameter of 1.005", and a total of 12.07 coils, expertly designed to deliver consistent compression characteristics including a rate of 228.408 lbs/in.
The 76934CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 76934 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
