76906CS - 4.724" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

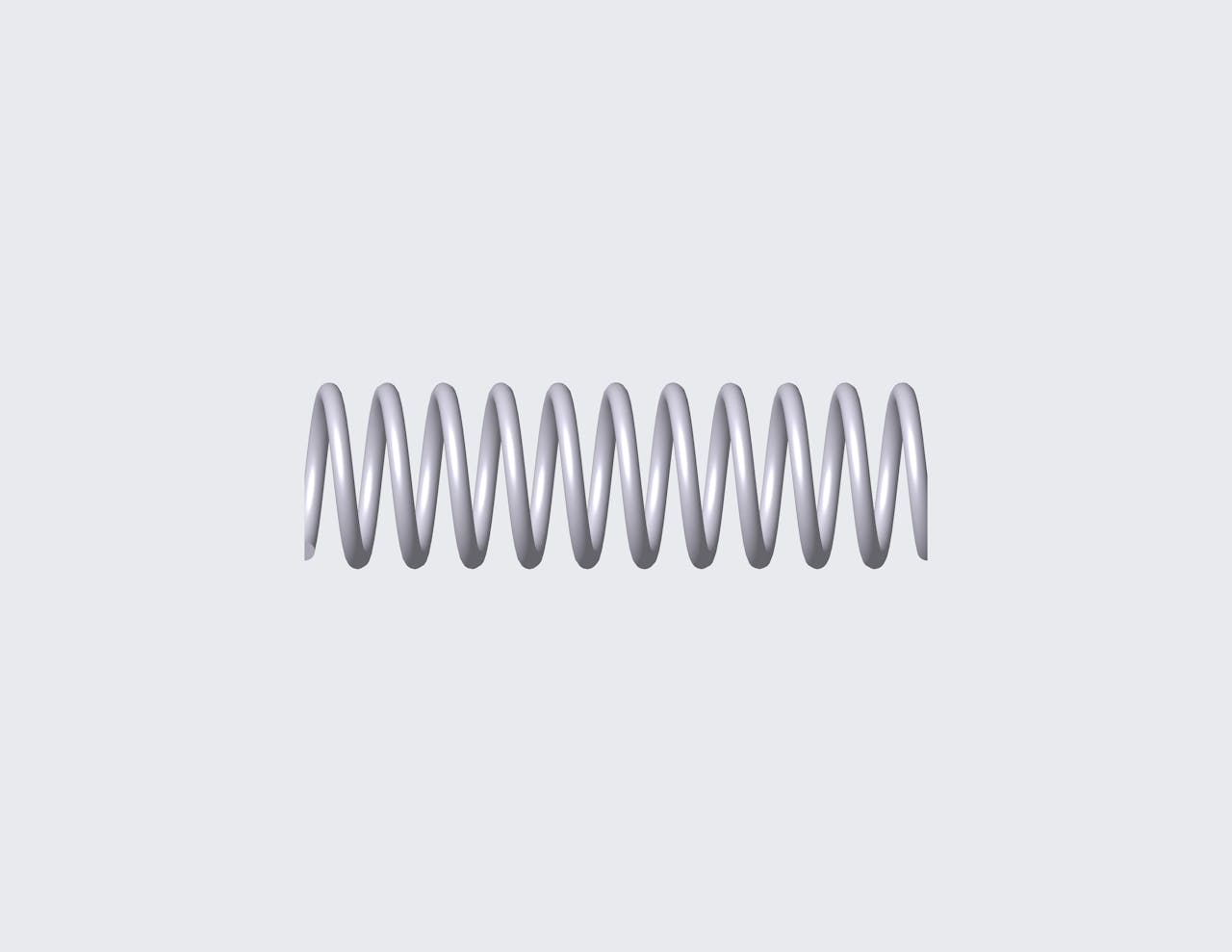

Compression spring manufactured from music wire with 10.5 coils and closed & ground ends. This spring features an O.D. of 1.417", and an I.D. of 1.102".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 76906
Ends Closed & Ground
Finish None
Free Length 4.724 in
Inside Diameter 1.102 in
Material Music Wire
Outside Diameter 1.417 in
Part Type Metric
Rate 52.017 lbs/in
SKU 76906CS
Solid Length 1.654 in
Suggested Max Deflection 2.233 in
Suggested Max Load 116.16 lbf
Total Coils 10.5
Wire Diameter 0.157 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 76906
Ends Closed & Ground
Finish None
Free Length 119.99 mm
Inside Diameter 27.99 mm
Material Music Wire
Outside Diameter 35.99 mm
Part Type Metric
Rate 9.11 N/mm
SKU 76906CS
Solid Length 42.01 mm
Suggested Max Deflection 56.72 mm
Suggested Max Load 516.68 N
Total Coils 10.5
Wire Diameter 3.99 mm
The 76906CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.157" diameter music wire, the 76906 spring design exhibits reliable strength across its 10.5 active coils, withstanding repeated compression cycles with a maximum load of 116.16 lbf without succumbing to fatigue.

We manufacture the 76906 design to provide a compression spring that is 4.724" long at rest and provides a consistent rate of 52.017 lbs/in along its recommended maximum of 2.233" deflection. For best results, your application should fully accommodate the inner (1.102") and outer (1.417") diameters of this spring and be designed for its closed & ground end configuration.
