76871CS - 9.646" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

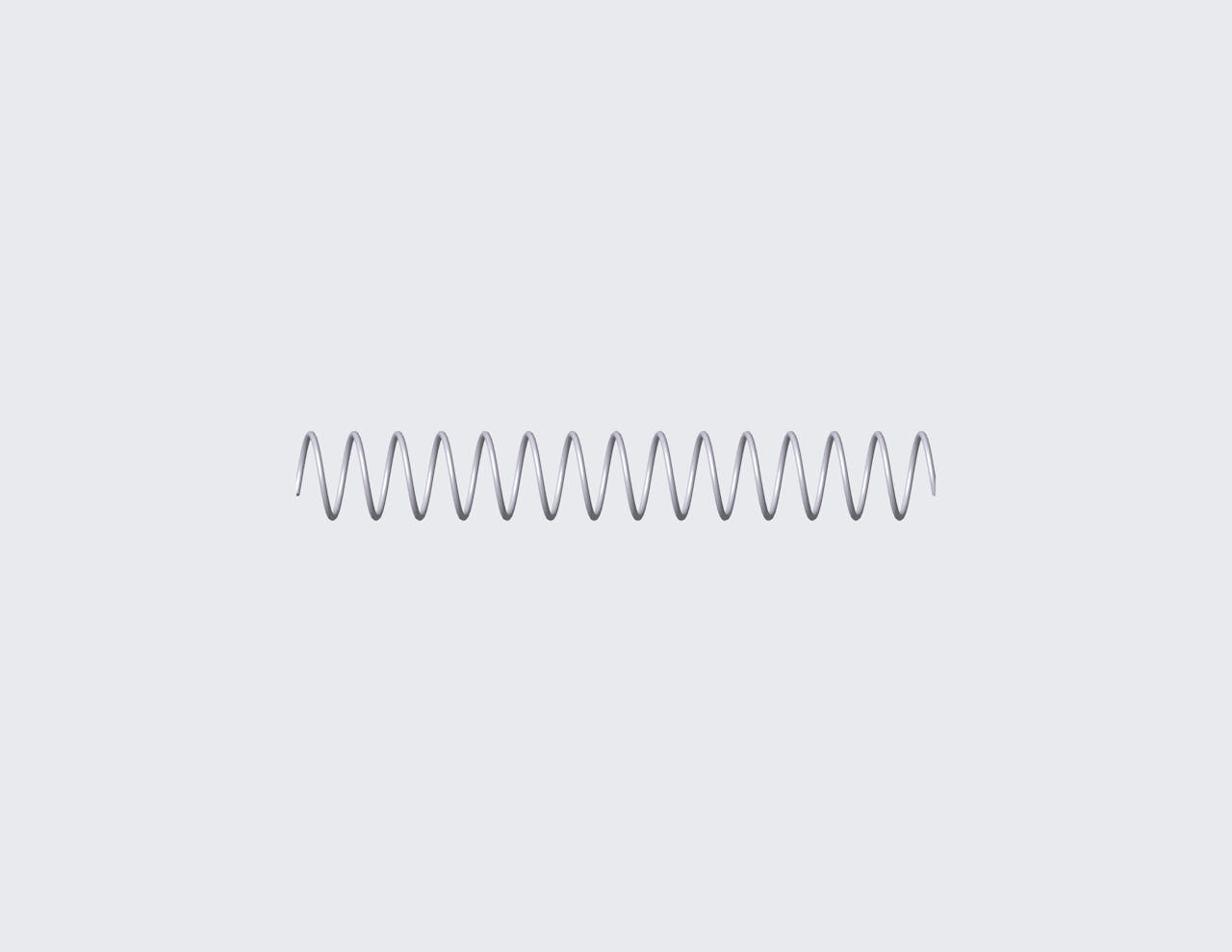

Compression spring manufactured from music wire with 14.5 coils and closed & ground ends. This spring features an O.D. of 1.358", and an I.D. of 1.161".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 76871 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 9.646 in |
| Inside Diameter | 1.161 in |
| Material | Music Wire |
| Outside Diameter | 1.358 in |
| Part Type | Metric |
| Rate | 5.397 lbs/in |
| SKU | 76871CS |
| Solid Length | 1.427 in |
| Suggested Max Deflection | 6.107 in |
| Suggested Max Load | 32.964 lbf |
| Total Coils | 14.5 |
| Wire Diameter | 0.098 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 76871 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 245.01 mm |
| Inside Diameter | 29.49 mm |
| Material | Music Wire |
| Outside Diameter | 34.49 mm |
| Part Type | Metric |
| Rate | 0.95 N/mm |
| SKU | 76871CS |
| Solid Length | 36.25 mm |
| Suggested Max Deflection | 155.12 mm |
| Suggested Max Load | 146.62 N |
| Total Coils | 14.5 |
| Wire Diameter | 2.49 mm |
The compression spring 76871CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 76871 compression spring design exhibits exceptional tensile strength and resilience.
The 76871 design is manufactured with a free length of 9.646", with an outer diameter of 1.358", an inner diameter of 1.161", and a total of 14.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.397 lbs/in.
The 76871CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 76871 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 76871 design is manufactured with a free length of 9.646", with an outer diameter of 1.358", an inner diameter of 1.161", and a total of 14.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.397 lbs/in.
The 76871CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 76871 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
